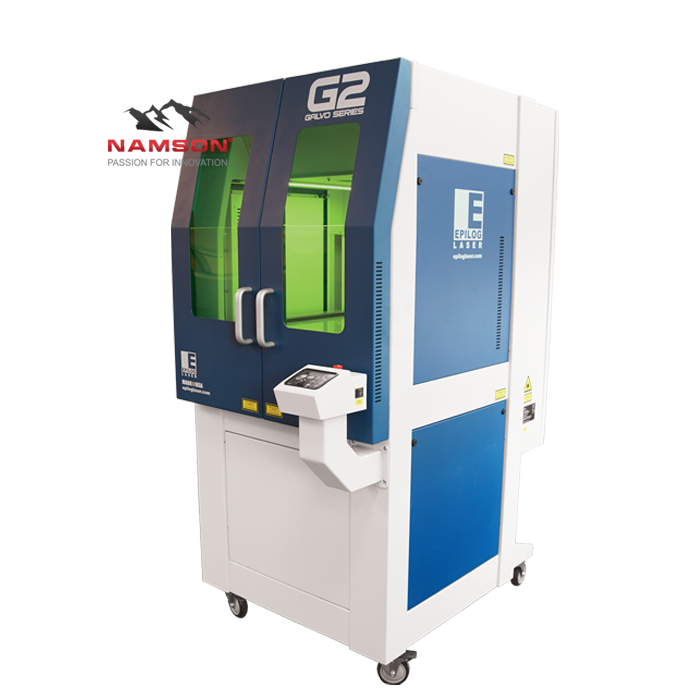

G2 Laser Gantry Engraving System are designed, engineered and manufactured by Epilog Laser – America’s leading brand. Epilog G2 Galvo Laser is equipped with the most advanced technologies, capable of marking into most metal and plastic objects with high quality.


Large working area, can be changed easily

Utilizing a unique dynamic-focus lens technology, the G2 allows you to change your engraving area from 4″” x 4″” (101 x 101 mm) to 16″” x 16″” (406 x 406 mm) all the way up to 24″” x 24″” (609 x 609 mm) by selecting the table size on the keypad without the need to change lenses between marking jobs.

Most engraved on metal surfaces

Epilog G2 Galvo Laser is equipped with the 1064 nm wavelength of our fiber laser systems, a power of 30 or 50 watts, so it is able to etch almost any metal and mark many plastics.

Extremely fast engraving speed

In addition, the engraving speed of G2 laser is extremely fast, up to 2m / s, users can take advantage of this ability to create the highest quality product with the fastest speed.

The ventilation system cleans the engraving space

The G2 Galvo provides louvered ventilation for the internal system to make the engraving space always clean.

Various types of engraving

The computer controls the speed and power in increments of 1-100%. G2 allows creating a variety of engraving patterns to meet specific needs such as etch, mirror, anneal by adjusting the laser speed, power, frequency, and focus.

Compatible with many design software on Windows operating systems

The print driver enables all laser functions to be controlled from one convenient, user-friendly interface. Users can use AutoCAD, CorelDRAW, Illustrator, BarTender, etc. software on Windows operating system to create desired projects. Through the driver, it’s quick to adjust the etching depth between surface traces and deep engravings just by changing the laser setting.

Easy to locate engraving

Another useful tool on the Epilog G2 Galvo is the Red Dot. The red dot is used to identify the position of engraving or cutting in the worktable on items of unusual shape.



Epilog Fiber Laser Technical Specifications
ModelEpilog G2 Galvo Series
Engraving areaUp to 24″ x 24″ (609 mm)
Maximum Material Thickness4″ x 4″ (101 mm): 36.3″ (923 mm)
16″ x 16″ (406 mm): 25.98″ (660 mm)
24″ x 24″ (609 mm): 15.79″ (401 mm)
Maximum Piece SizeAll table sizes: 29″ x 27″ (736.6 x 685.8 mm)
Laser Wattage20, 30, or 50 watt pulsed fiber laser, air cooled.
Standard Features.5″ (12.7 mm) machined aluminum table, 2 meter/second maximum marking speed.
Print Driver & SoftwareLaser Dashboard, Epilog Job Manager. Print from most Windows-based CAD and graphic software packages.
Operating ModesOptimized Vector Mode
Speed and Power ControlComputer controlled speed and power in 1-100% increments. Color mapping links speed and power.
Print Interface.10/100 Ethernet with Auto MDIX. Compatible with Windows XP/Vista/7/8/10.
Size (W x D x H)33″ x 43.75″ x 71.1″ (838.2 x 1111.25 x 1805.94 mm)
Weight415 lbs (188.2 kg)
Electrical RequirementsAuto-switching 110 to 240 volts, 50 or 60 Hz, single phase, 15 amp AC.
Ventilation System650 CFM (1104 m3/hr) external exhaust to the outside or internal filtration unit is required. There are two output ports, each 4″ (102 mm) in diameter.
Laser System ClassificationClass 2 Laser Product – 1 mW CW MAXIMUM 600-700 nm.

Features: Benefits of Epilog’s G2 Laser System

The G2 laser series from Epilog provides a unique combination of high-speed laser engraving and marking and a large work area. Place an entire large piece, such as a gunstock or large gear, or even an entire table full of pieces and engrave them all at one time.

  • Highest-Speed Engraving Over Largest Work Area: The galvo beam delivery of the G2 is enhanced with a moving dynamic-focus lens for even engraving over a large area
  • Adjustable Engraving Area: Quickly change between a 4″ (101 mm), 16″ (406 mm) and 24″ (609 mm) etching area based on your marking needs – all inside a Class 2 laser system enclosure.
  • Use the Software of Your Choice: Create your projects for the laser using the software you already use – AutoCAD, CorelDRAW, Illustrator, BarTender, and more.
  • High-Volume, Multi-Piece: MarkingEngrave an entire table full of parts at one time with no dedicated operator changing parts.
  • Telescoping Dynamic Focus Lens: A telescoping third-axis lens moves on the horizontal axis to adjust the focal distance for a consistent spot size across the table and Manufactured in the USA. Proudly designed, engineered and manufactured in our Golden, CO headquarters at the base of the Rocky Mountains.
  • Change Your Work Area without Changing Lenses: Choose your engraving area – up to 24″ x 24″ (609 mm) – by selecting the table size on the keypad without the need to change lenses between marking jobs.
  • Louvered Ventilation for Less Maintenance: The better your system is vented, the cleaner it will be. Open and close louveres to optimize the ventilation in your engraving space.
  • Fit Your Largest Parts on the Table: The marking area will fit up to 29″ x 27″ x 36.3″ (736 x 685 x 922 mm) parts and tools within the saftey-enclosed Class 2 laser cabinet.
  • Incredibly Fast 2m/sec Marking Speeds: Take advantage of the G2 laser’s high-speed etching with marking speeds up to 2 meters per second for the highest quality at the fastest speeds.
  • Easily Change Between Deep and Surface Etching: Quickly adjust your marking depth between surface marks and deep engraving by simply changing your laser’s settings in the print driver.
  • Etch a Full Table Full of Parts at One Time: Engrave a jig of multiple parts in less time than ever before using the large 24″ x 24″ (609 mm) work area and fast galvo fiber laser technology.
  • Repositionable Guides for Corner Placement: For traditional top-left engraving, the G2 features moveable edge guides that can be placed on the table for each engraving area size.
  • Non-Contact Marking: No Bits to Replace: There is no need to brace parts or replace expensve engraving bits or tools with our fiber laser systems.
  • Mark and Etch a Wide Variety of Materials: Etch almost any meta land mark many plastics with the 1064 nm wavelength of our fiber laser systems.
  • Visible Red Dot Laser Tracing Feature: Precisely position your marking by utilizing the Trace Feature that will create a visible red line around the area you will be marking.
  • Create Multiple Styles of Marks: Create the marked or etched look on your part that fits your needs by adjusting the laser’s speed, power, frequency, and focus.
  • Laser Dashboard Print Driver: A user-friendly print driver allows you to control all of the laser’s features from one convenient interface.
  • Network Your Laser Across Your Business: Communicate with your laser through Ethernet, USB or even wirelessly for the most simple networking available.
  • Raster/Vector Color Mapping: Easily map different speed and power settings to different colors in your file in both engraving and cutting modes.



  • Dynamic focus lens technology.
  • Very fast engraving speed.
  • Large, changeable working area.
  • Compatible with many software designed on Windows platforms.
  • Various types of engraving.
