PRODUCT INTRODUCTION

Laser Source redPOWER PRISM OEM  is a high power fiber laser source that gives OEM manufacturers substantial commercial and performance advantages over alternative technologies and products. Laser Systems designed and built from redPOWER ® PRISM OEM high power products offer integrators the capability to manufacture equipment for cutting, welding and other material processing applications in the industrial sector.

FEATURES

Versatile

redPOWER PRISM Modules provide powers in the range 300W to 6kW with both single mode and multimode variants available. For higher power multi-kW lasers, one or more single mode modules are combined with a multi-port High Power Combiner (HPC) unit.
The system integrator adds value to these basic units by providing the DC Supply, a suitable enclosure, a controlled coolant supply and system level safety control.

Easy Integration

The complete range of units are designed to mount into an industry standard 19“ rack mount, giving a consistent look to the final Laser and facilitating ease of enclosure sourcing.

Applications

The redPOWER® PRISM OEM Laser Source enables integrators to maximise their added value content by optimising their product differentiation in the areas of field serviceability, customisation of the control interface, functionality and performance. Output Fibers include single mode and multi-mode options. The M2<1.1 output is used within Additive Manufacturing (3D Printing) and for beam combination to produce multi-kW systems. The multi-mode options are popular within 2D cutting applications.

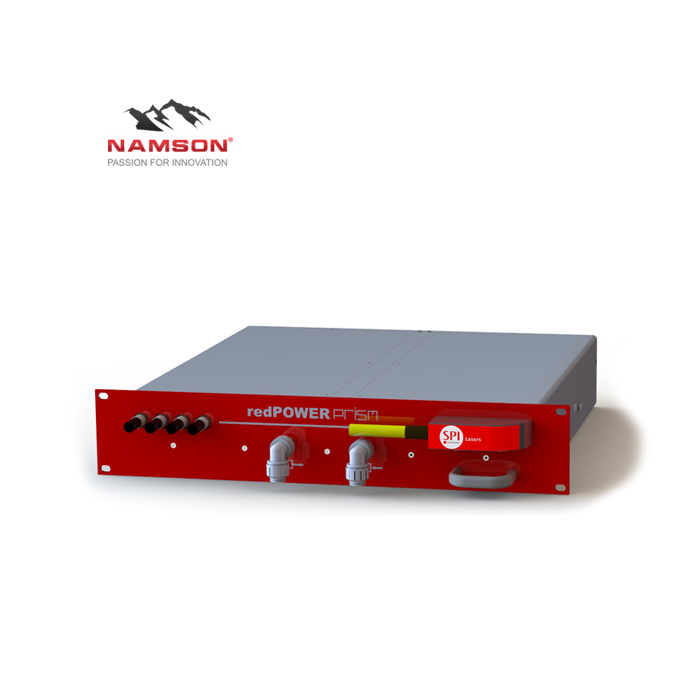

 Laser Modules

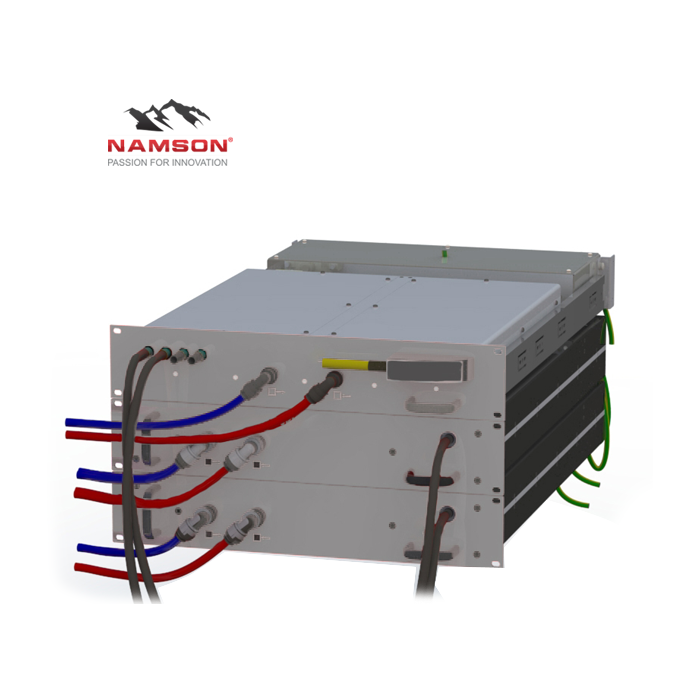

Each PRISM Module is in a 2U rack mount case with a single mode output bare ended Fiber allowing straight forward splicing onto the High Power. Combiner input port. Combining multiple modules together, allows the system integrator a flexible approach in choosing the desired multi-kW Laser source in logical power steps. An on-board protection unit provides low level safety and integrity monitoring, that can shut down the laser when required.

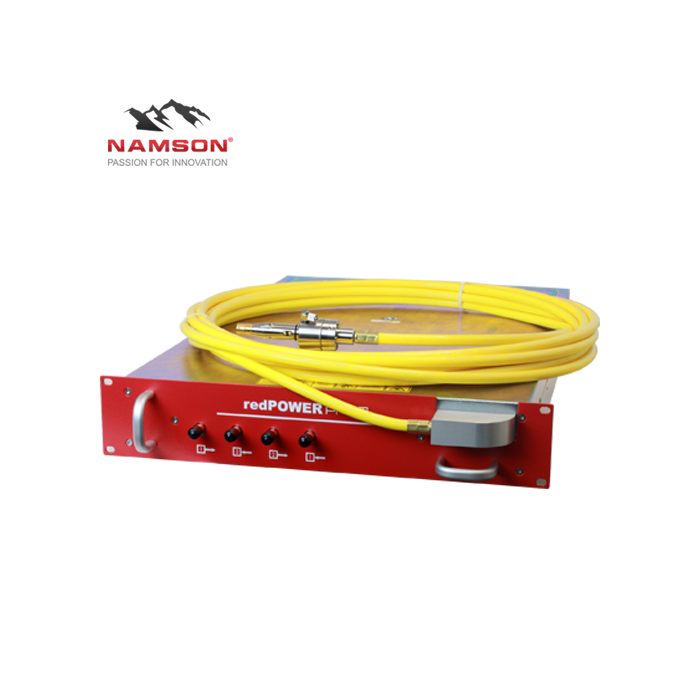

High Power Combiner (HPC) Unit

The High Power Combiner unit allows up to four (4) PRISM modules to be combined together into a single beam delivery fiber. The HPC unit is designed to allow ease of access to the splice points for joining the individual single mode fibers from each Fiber Laser module onto the multi-way fused fiber combiner. These can be accessed with the HPC still mounted into its rack support cabinet. The HPC Unit contains our standard Fiber Laser Control Card. This gives all the benefits of multiple control interfaces, integrated pulse generator, and the ability to use our comprehensive and flexible FiberView GUI control software.

SPECIFICATIONS

* Specifications can be changeable without notice.

SALIENT FEATURES

• Compact design for OEM integration
• ‘Fit & Forget’ technology
• High back reflection protection
• High beam quality
• Integrated pump diodes and drive electronics
•  Single and multi-mode delivery Fiber options available
• Wide range of control options available

APPLICATIONS

Marking, Cutting, Welding, Drilling, Cleaning

• Aluminium
• Brass
• Coppep
• Mild steel
• Multi-layer metal composite
• Reflective metal
• Stainless
