LASER SOURCE COMPACT SERIES

Robust, modular and reliable laser sources for materials processing involving plastics, organics and metals.

Details

Robust, modular and reliable laser sources for materials processing involving plastics, organics and metals.

GET A QUOTE

APPLICATION

FUNCTION
Laser soldering
Source

PRODUCT DESCRIPTION

HIGH-POWER, NEAR-INFRARED, FIBER-COUPLED, INDUSTRIAL DIODE LASERS

PRODUCT INTRODUCTION

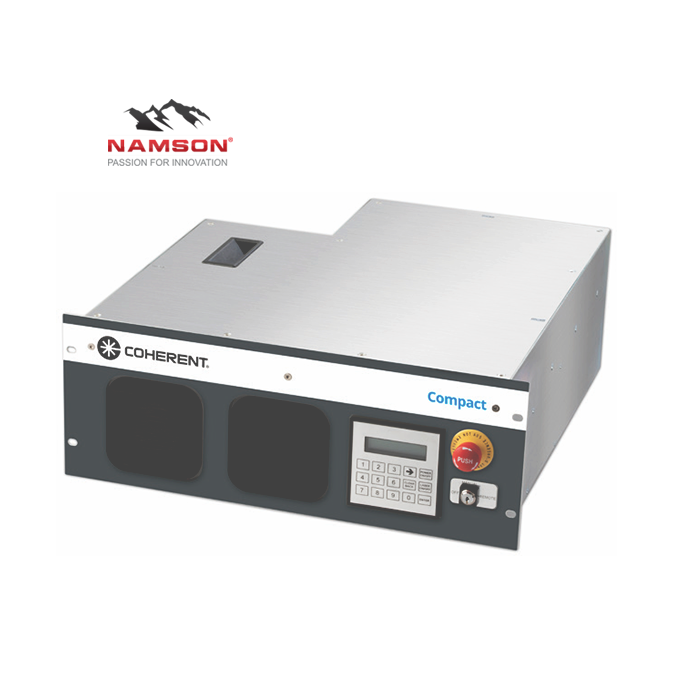

Robust, modular and reliable laser sources for materials processing involving plastics, organics and metals. Compact series fiber-coupled, near-infrared (X nm) diode lasers are available with output powers ranging from 50 to 1200 W. They include the diode source and all required power and cooling equipment, making them an efficient, flexible and reliable light source for industrial applications such as plastics welding, selective soldering, brazing and heat treating.

Contact Nam Sơn to receive a detailed quotation and consultation on the right laser solution for your business via hotline

Hotline: 0909961715

SPECIFICATION

SPECIFICATIONS Compact 980
Nominal Power (W) 30 40 60 100 50 90 120
Power Range (%) 10 – 100
Laser Beam Quality (BPP) (mm * mrad) 11 22 44
Power Stability Over 24-hour; Cooling Water ΔT = ± 1 K(%) ±2
Pulse Frequency Range
(Laser On-Signal (Hz)
10
Analog Modulation (Hz) 750
Wavelength (nm) 980
ELECTRICAL RATINGS
Voltage (V AC) 200-240 (1P//N/PE)
Connected Load (kVA) ≤ 0.6
Effective Power at Nominal Power (kW) ≤ 0.54
Max. Current Consumption at 230 V (A) ≤ 2.7
Fuses Type NH (A) 16
FIBER DELIVERY SYSTEM
Interface SMA* SMA
Diameter (µm) 100 200 400
Numerical Aperture 0.22
Length (m) ≤ 5 ≤ 20
DIMENSIONS & WEIGHTS
Laser Dimension (L x W x H) (mm) ~500 x ~483 x ~176
Laser Weight (kg) < 25
ENVIRONMENTAL CONDITIONS
Ambient Temperature in Operation (°C) 15 – 35
S-rage Temperature (°C) 24
CUSTOMER INTERFACE
Analog Power (V DC) 0 – 10
Digital Signals (V DC) 24



SPECIFICATIONS Compact 808
Nominal Power (W) 30 60 100 35 70 100 50 90 120
Power Range (%) 10 – 100
Laser Beam Quality (BPP) (mm * mrad) 22 44
Power Stability Over 24-hour; Cooling Water ΔT = ± 1 K(%) ±2
Pulse Frequency Range
(Laser On-Signal (Hz)
10
Analog Modulation (Hz) 750
Wavelength (nm) 808
ELECTRICAL RATINGS
Voltage (V AC) 200-240 (1P//N/PE)
Connected Load (kVA) ≤ 0.6
Effective Power at Nominal Power (kW) ≤ 0.54
Max. Current Consumption at 230 V (A) ≤ 2.7
Fuses Type NH (A) 16
FIBER DELIVERY SYSTEM
Interface SMA
Diameter (µm) 800 200 400
Numerical Aperture 0.12 0.22
Length (m) ≤ 20
DIMENSIONS & WEIGHTS
Laser Dimension (L x W x H) (mm) ~500 x ~483 x ~176
Laser Weight (kg) < 25
ENVIRONMENTAL CONDITIONS
Ambient Temperature in Operation (°C) 0 – 10
S-rage Temperature (°C) 24
CUSTOMER INTERFACE
Analog Power (V DC) 0 – 10
Digital Signals (V DC) 24

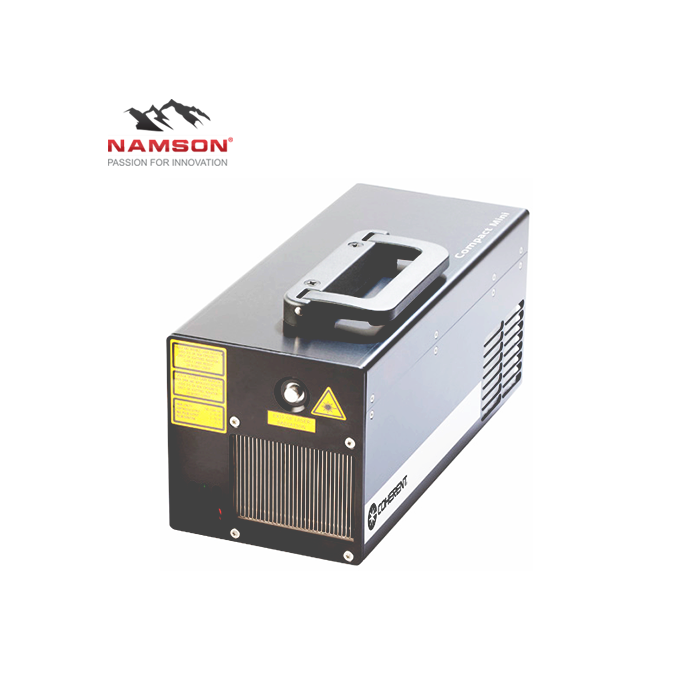

SPECIFICATIONS Compact Mini Compact SE
Nominal Power (W) 30 50 50 100
Power Range (%) 10 – 100 5 – 100
Laser Beam Quality (BPP) (mm * mrad) 44 44 22 22
Power Stability Over 24-hour; Cooling Water ΔT = ± 1 K(%) ±2 ±2
Pulse Frequency Range
(Laser On-Signal (Hz)
100 1
Analog Modulation (Hz) 750 600
Wavelength (nm) 1064 808 980 980
ELECTRICAL RATINGS
Voltage (V AC) 100 – 240 (1P/N/PE) 110 – 240 (1P/N/PE) 50/60 Hz
Connected Load (kVA) ~0.35 550 500 700
Effective Power at Nominal Power (kW) ≤0.15 500 450 550
Max. Current Consumption at 230 V (A) ≤3.7 3 2.5 3.6
Fuses Type NH (A) 16 4 4 4
FIBER DELIVERY SYSTEM
Interface SMA* SMA
Diameter (µm) 400 800 200 200
Numerical Aperture 0.22 0.12 0.22 0.22
Length (m) ≤20 ≤20
DIMENSIONS & WEIGHTS
Laser Dimension (L x W x H) (mm) 336 x 144 x 169 360 x 222 (1/2 19”) x 129 mm (3 HU) (14.17 x 8.74 x 5.08 in.)
Laser Weight (kg) 5 kg 8 kg (17.64 lbs) per unit
ENVIRONMENTAL CONDITIONS
Ambient Temperature in Operation (°C) 18 – 35°C (64 – 95°F) 18 – 40°C (64 – 104°F)
S-rage Temperature (°C) 5 – 50°C (41 – 122°F) 5 – 50°C (41 – 122°F)
CUSTOMER INTERFACE
Analog Power (V DC) 0 – 10 0 – 10
Digital Signals (V DC) 24 24
