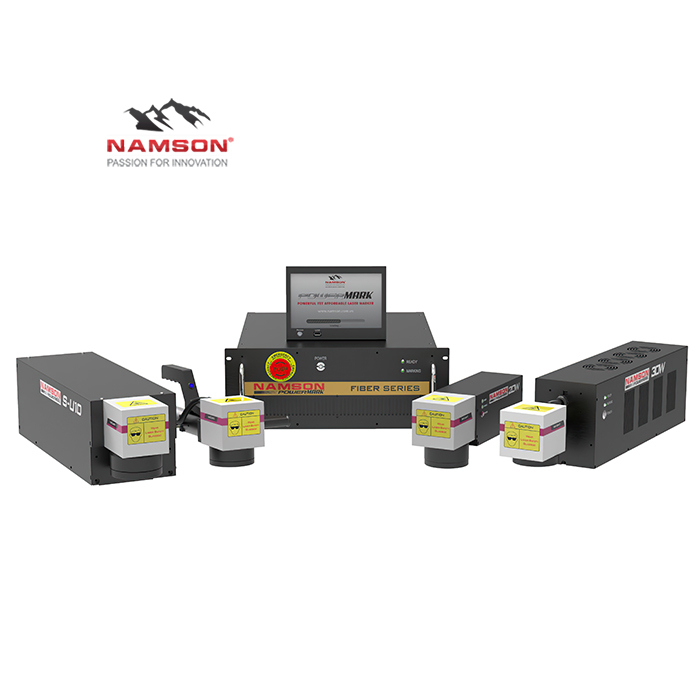

FIBER LASER MARKER NAMSON POWERMARK F SERIES

Namson PowerMark Fiber Laser Marker – the Vietnamese first ever powerful & high performance, accuracy with a very affordable investment.

Details
  • Saving working space and facility for stand-alone marking or production line integrating with easy-to-intall, modern and compact design of Namson PowerMARK F series
  • Extreme stability and exactly
  • Maintenance-free feature of finer laser marker saves enormous operating and maintenance cost
  • Using advanced technology Fiber Laser
  • Components are imported from the world’s leading brands such as SPI/Trumpf (UK/Germany), Scanlan (Germany),…
  • Direct from the manufacturer’s warranty

GET A QUOTE

APPLICATION

INDUSTRIES
Automative
Electronics – Semiconductor
Pharmaceutic - Cosmetic – Medical
Mold - Precision Tool
Jewelry
Mechanism - Machining
FUNCTION
Laser engraving
Surface Modification
Laser marking / laser coding
MATERIAL
Inox
Glass
Stainless Steel
Fabric
Leather
PVC
Acrylic, Crystal, Paper

PRODUCT DESCRIPTION

PRODUCT INTRODUCTION

Namson PowerMark Fiber Laser Marker – the Vietnamese first ever powerful & high performance, accuracy with a very affordable investment. As a comprehensive laser solution which can be widely applied in many industries, Namson PowerMARK Fiber Laser Marker satisfies most of laser marking requirements.

Fiber laser marker – machineNamson PowerMark is a Laser Marker made by Namson Laser that can mark or cut on most of metallic and some non-metallic materials. Particularly, Namson PowerMark can be easily integrated into the industrial production chain due to its compact design in order to supply customers with a comprehensive laser solution.

Why Namson fiber laser marker – machine – PowerMark F Series?

  • To mark and cut on metallic materials.
  • To integrate laser cutting & marking abilities into industrial production chains.
  • To buy an affordable and high-quality laser system.
  • To get the best maintenance services.

200W SPI laser machine specializing in cutting/engraving/welding/cleaning on metal

Laser Engraving Machine Solution Integrated Qr Code Data Scanning and Automatic Billet Feeder

Application of laser engraving on medical devices



FEATURES

SPEED

Scanning speed upto 12,000 mm/s, can be integrated into continuous marking lines.

FLEXIBLE

Customizable standing mechanism adapt both demand of manual marking or on-the-fly marking.

SAFETY

Information permanently marked on product that can not be defaced or adjusted.

ACCURACY

Extreme stability and exactly.

ECONOMY

Takes less expendables than that of ink technology, environmentally friendly.

SIMPLICITY

Easy operation and integrates smart control software to support most of design files.

DURABILITY

Working life up to 100.000h with low cost of maintenance.

WARRANTY

Direct from the manufacturer’s warranty.



SPECIFICATION

Namson PowerMark F Series

SeriesPowerMARK Advance FiberPowerMARK Standard FiberPowerMARK ECO Advance FiberPowerMARK ECO Standard Fiber
ModelPMA-A-FPMA-S-FPMAE-A-FPMAE-S-F
LaserFiber laser Yb 1064nm: fiber. Integrated pilot laser 650nm/5mW
Power20W / 30W / 50W / 70W / 100W / 130W / 200W20W / 30W / 50W
Frequency1 – 4160 KHz30 – 80 KHz
PRFo – PRFmax (WF0)20-1000KHz20KHz
Pulse width3ns – 520ns200ns
Source BrandTrumpf / SPIJPT
Beam Quality (M2)S type: M2 ≤ 1.3; Z type: M2 ≤ 1.6; M type ≤ 5.2;M2 ≤ 1.5
Pilot light655nm / 5mW
Scanhead type2D (two axis XY)
Marking SpeedMarking head Scanlab – Germany
Marking speed : <12000 mm/s, up to 850 cps (Optional higher speed)
Lens option70mm 100mm  140mm  175mm  205mm   250mm    300mm
Spotsize27um – 69um (other options)
Cable length2m – 3m
Laser CoolingAir cooling, integrated in laser source, space and power saving
Integrate Industrial PCYesNoYesNo
Focus adjustmentLifting axis are controlled by motor
FMseries (Optional)Integrate handheld controller
Mark on high-speed continuous lines
Save file independently
Integration signal– Alarm signal– Alarm signal– Alarm signal– Alarm signal
– Input signal– Input signal– Input signal– Input signal
– 16 I/O signal– 16 I/O signal
Optional module– On the fly marking– On the fly marking– On the fly marking– On the fly marking
modulemodulemodulemodule
– Mark-from-memory– XY gantry working– Mark-from-memory– XY gantry working
moduletablemoduletable
– 3D Scanner– Rotary module– 3D Scanner– Rotary module
– XY gantry working– XY gantry working
tabletable
– Rotary module– Rotary module
– Integrated I / O– Integrated I / O
Power Supply220-240 VAC
Power consumptionAverage: 100W / Max: 200W
Operating temperatureTemperature: 15 – 35 oC / Humidity: 35% – 85% non-condense
Weight45 Kg
Dimension (LxWxH)Controller: 474mm x 404mm x 175mm
Marking head : 388mm x 94mm x 118mm (without stand)



SALIENT FEATURES

  • Saving working space and facility for stand-alone marking or production line integrating with easy-to-intall, modern and compact design of Namson PowerMARK F series.
  • Extreme stability and exactly.
  • Maintenance-free feature of finer laser marker saves enormous operating and maintenance cost
  • Using advanced technology Fiber Laser.
  • Components are imported from the world’s leading brands such as SPI/Trumpf (UK/Germany), Scanlan (Germany),…
  • Direct from the manufacturer’s warranty.



FACILTY REQUIREMENT

  • Rotary/ XY Table.
  • Automative Feeder.
  • Production line integrated.
  • Protective working station.
  • Memory Card Storage.
  • Machine Vision Camera.
  • Multi-functional plug-in.
