LASER SOURCE DIAMOND GEM-SERIES

PRODUCT INTRODUCTION

Laser source GEM-100 offers excellent power stability, a great mode, and fast rise and fall times in a very compact size. The GEM-100 is available in both elliptical and circular beam versions.

FEATURES

DIAMOND GEM-100 CO2 lasers are available as air- or water-cooled units and are delivered with a separate RF power supply. Overall, the GEM-100 low-power lasers deliver exceptional value, performance and reliability.

GEM-Series 100W CO2 lasers are available at 9.6, 10.2 and 10.6 microns and deliver exceptional value, performance and reliability.

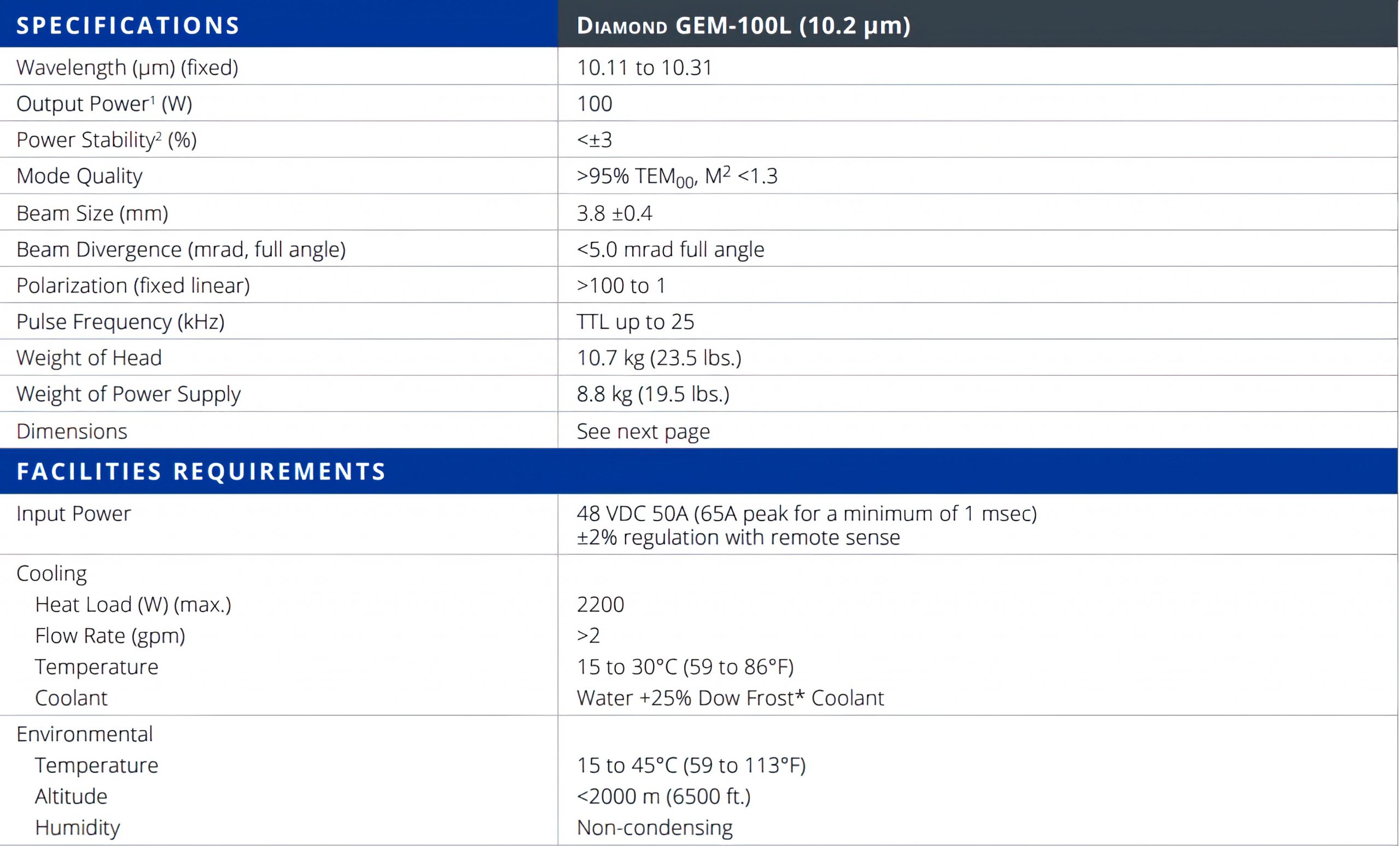

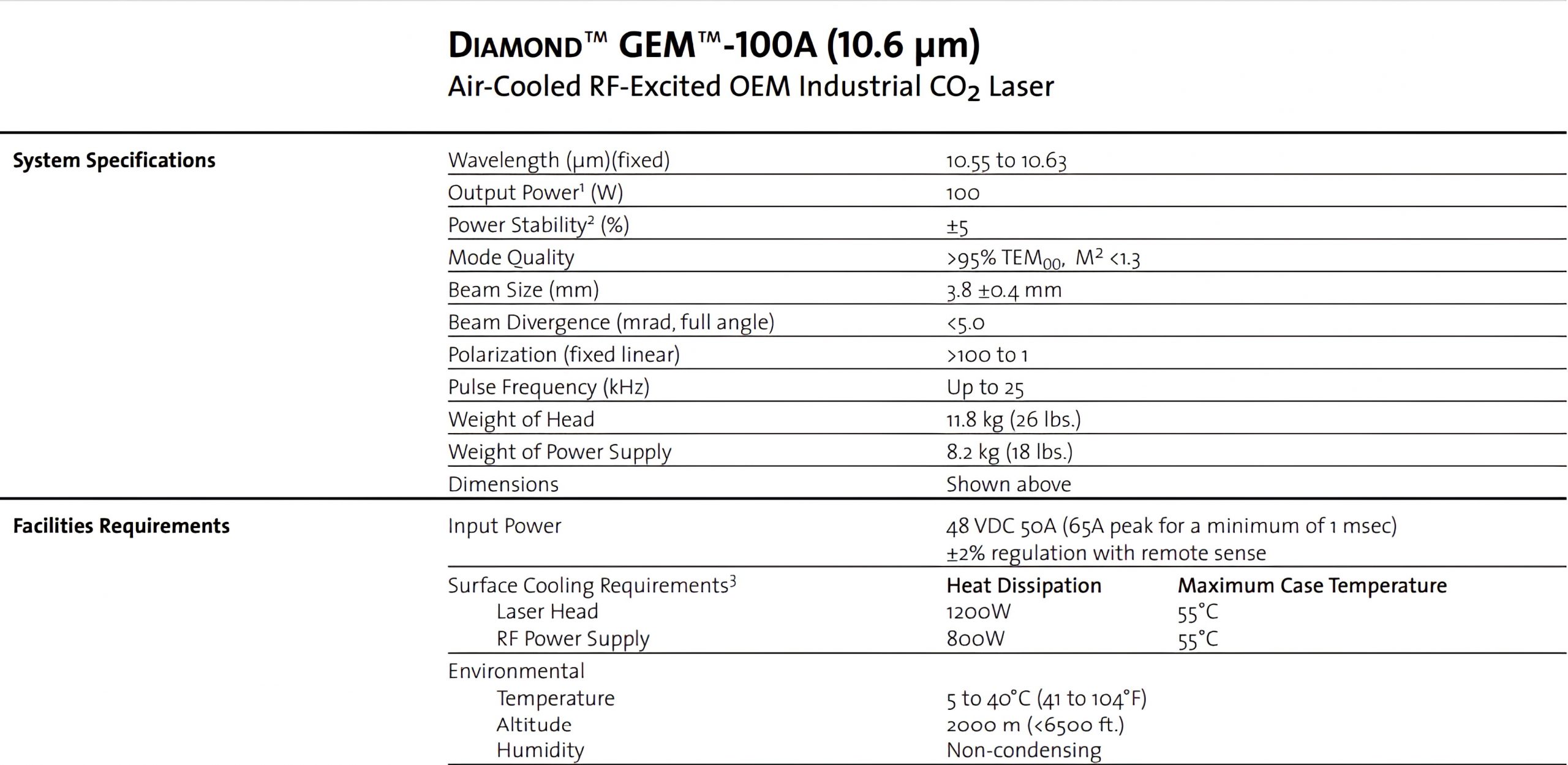

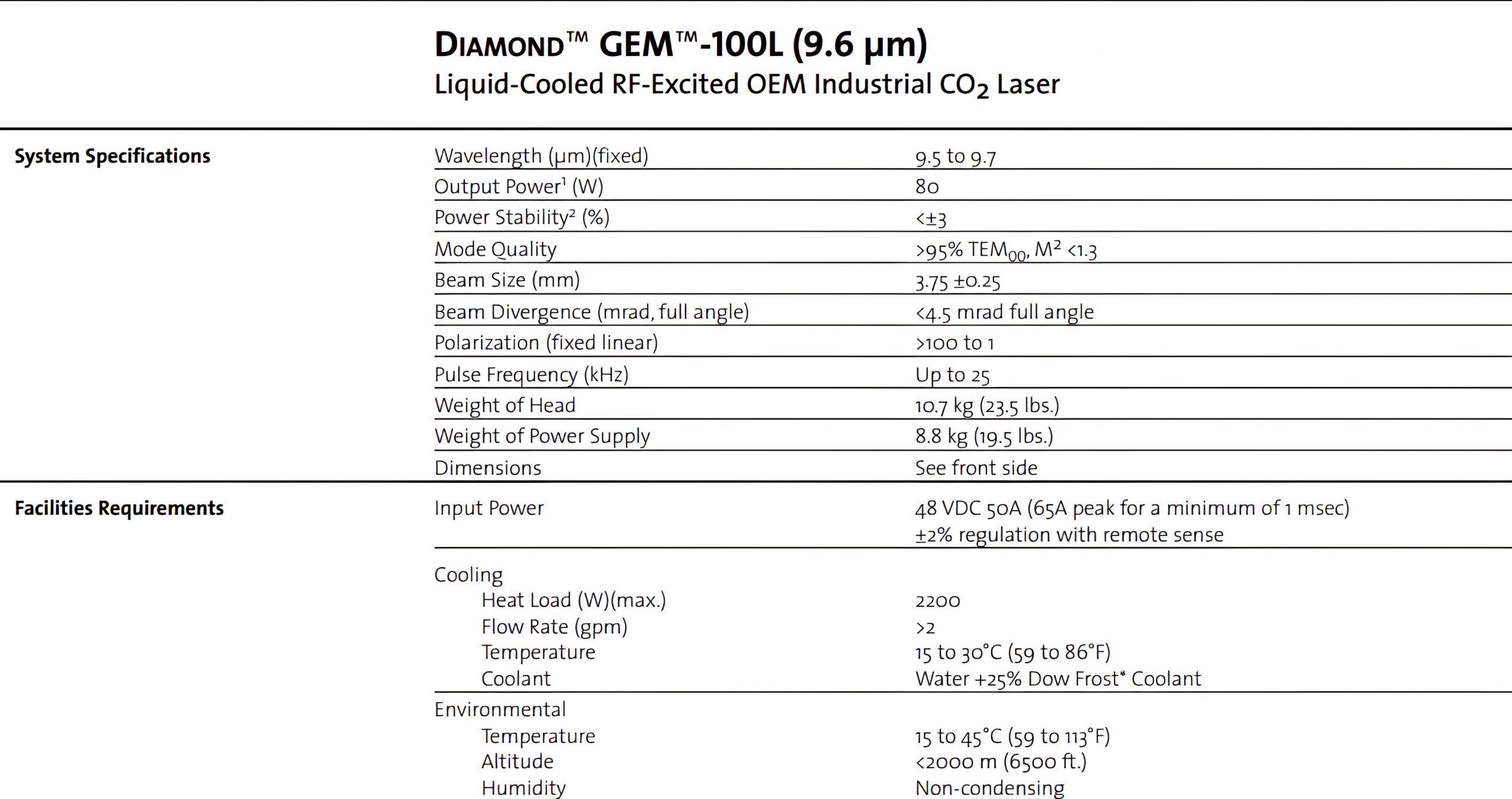

SPECIFICATION

* The Specifications can be changeable.

SALIENT FEATURES

• Outstanding beam quality
  and stability
• Direct air-cooling
• Linear polarization
• Highly compact
• Low-cost OEM configuration
• Fast rise/fall time
• Up to 100% duty cycle operation
• Interchangeable laser heads

APPLICATIONS

Key applications for these lasers are:

• Laser marking (i.e. of beverages)
• Laser engraving
• Laser sintering.

In addition these lasers are used in converting applications like laser scoring of flexible packages.

CATALOGUE
