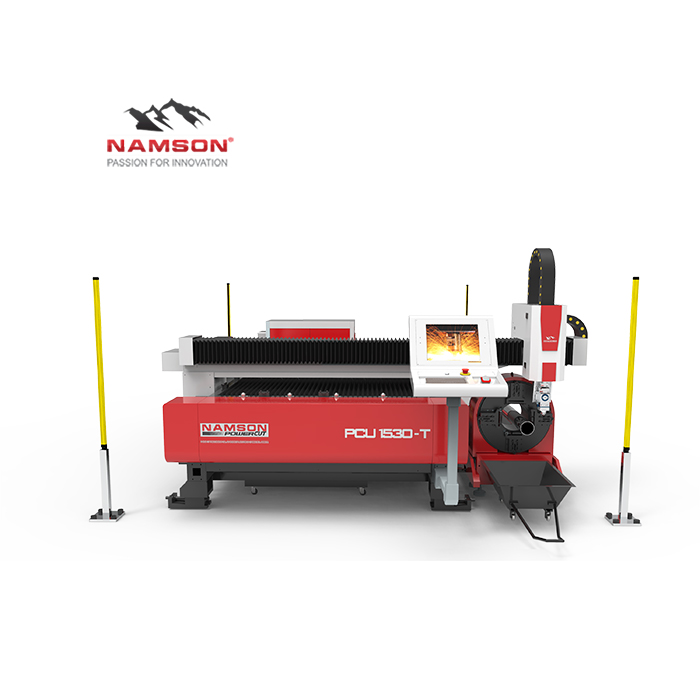

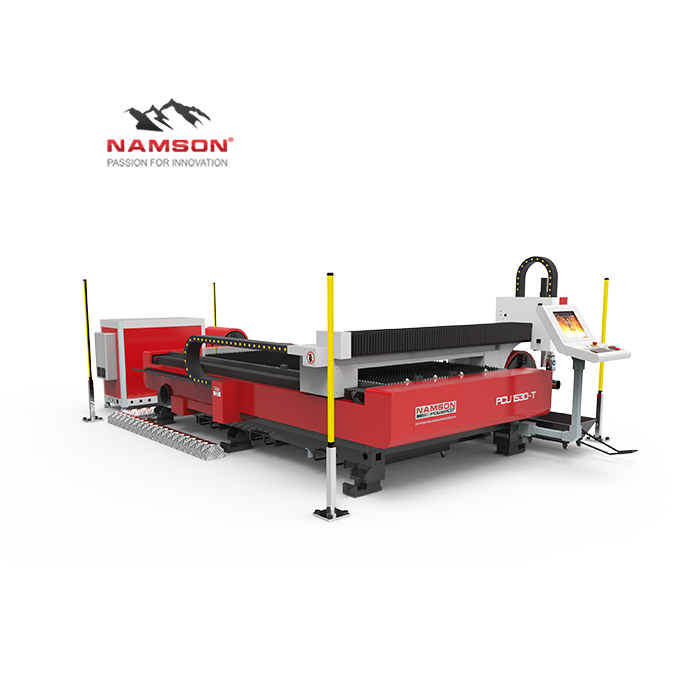

Namson PowerCUT laser cutting machine is the first Vietnamese brand machine in Vietnam with precise cutting ability.
Namson PowerCUT laser cutting machine is the first Vietnamese brand machine in Vietnam with precise cutting ability and superior cutting quality compared to other machines on the market.
Fiber laser technology: uses fiber optic and rare earth core as the laser resonance (chamber). Thanks to the evenly distributed temperature on the long section of the fiber, the heat generated during laser generation is minimized. This increases the durability and reliability of laser sources compared to other technologies.
Well-controlled fiber laser: suitable for high precision cutting applications, sharp cutting quality with a beam diameter of 25μm-100μm or 100μm-300μm, suitable for a wide range of cutting thicknesses, widely applied industrial production.
Cutting aid with oxygen, nitrogen or compressed air: selected for use with different materials and thicknesses such as iron, steel, stainless steel, aluminum, …
Double-Axis Drive System: with robust welded steel frame structure, through industrial strength handling steps: deformation, rigidity, vibration reduction, durable operation with idle shaft speeds reaching 80 – 120 m/min (faster optional).
High quality laser source from SPI (UK)
High quality laser source redPOWER ® QUBE (300W – 10kW) from SPI (UK – Trumpf group) is the world’s leading manufacturer of fiber lasers with patents for advanced features in fiber laser manufacturing.
GT Wave Fiber has many advantages
Avoids localised pump injection.
High brightness and optimised beam profiles match class leading cutting speeds.
|Model: PCU P6T series||Đơn vị||PCU 1530-P6T||ECU 1530-P6T|
|Beam type||Type||Cast aluminum monolithic|
|Driving mode||Type||Gear bar, dual gear|
|Working size||mm||3020 x 1520|
|Laser power||W||500 – 10000||500 – 3000|
|Laser brand||Type||SPI, Trumpf, Coherent, IPG, JPT|
|Machine size||mm||8365 x 2385 x 1870|
|Cutting head option||Type||Lasermech, Precitec, Raytool|
|Power supply||Type||380VAC / 50Hz|
|Module Tube 6M||Unit||PCU 1530-P6T||ECU 1530-P6T|
|Tube size||mm||20 – 160|
|Tube tail||mm||200 – 450||300 – 500|
|Rapid speed||m/min.||L: 80, W: 90 rpm||L: 59, W: 70 rpm|
|Tube cut accuracy||mm||±0.5||±0.8|
