LASER CLEANING MACHINE NAMSON POWERCLEAN 500W

INTRODUCTION Laser cleaning machine Namson PowerCLEAN 500W Handheld – New technology, green and enviromental. Long-focus cleaning laser source has high surface roughness and high tolerance range of processing height on…

Details

PRODUCT INTRODUCTION Laser cleaning machine Namson PowerCLEAN – New technology, green and enviromental. Long-focus cleaning laser source has high surface roughness and high tolerance range of processing height on the…

GET A QUOTE

APPLICATION

INDUSTRIES

Automative

Mold - Precision Tool

Mechanism - Machining

FUNCTION

Laser cleaning / laser ablation

MATERIAL

Metal

PRODUCT DESCRIPTION

INTRODUCTION

Laser cleaning machine Namson PowerCLEAN 500W Handheld – New technology, green and enviromental.
Long-focus cleaning laser source has high surface roughness and high tolerance range of processing height on the workpiece; the use of special mode laser, both to ensure the high tolerance range of non-stable environment, but also efficient removal of rust stains with no hurt to base material.

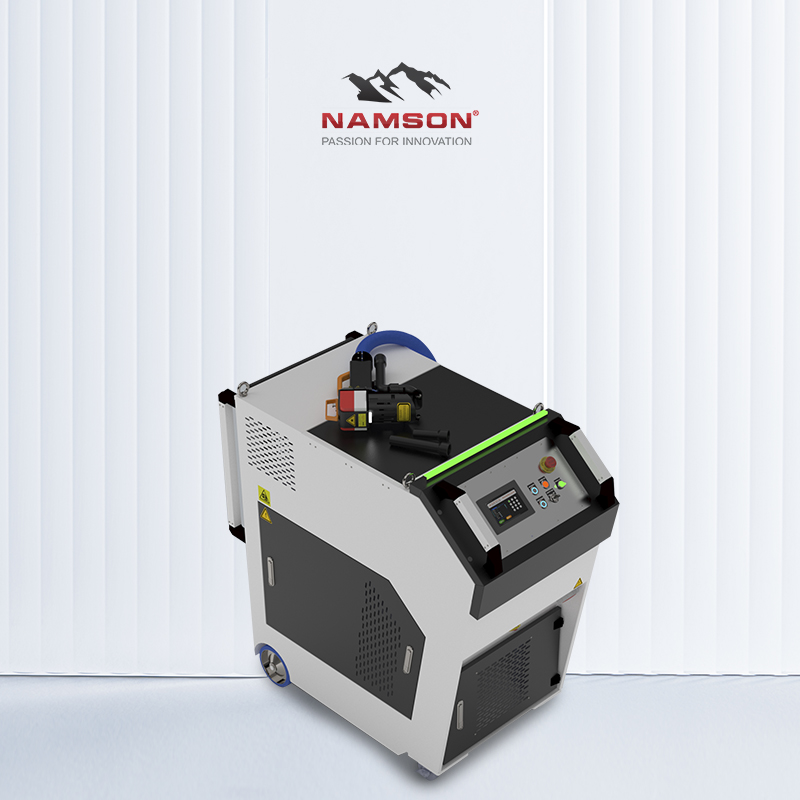

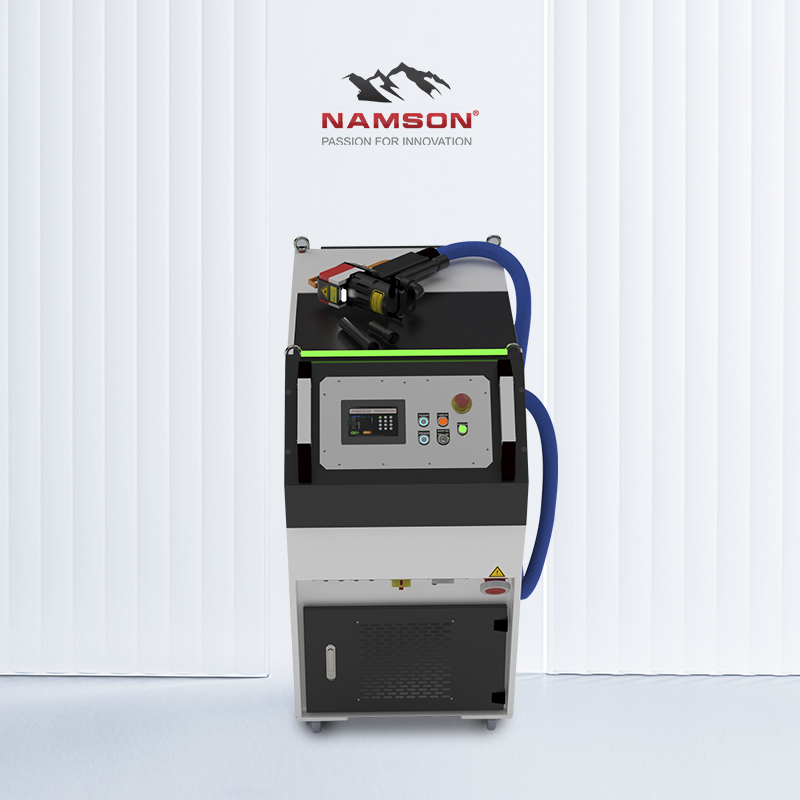

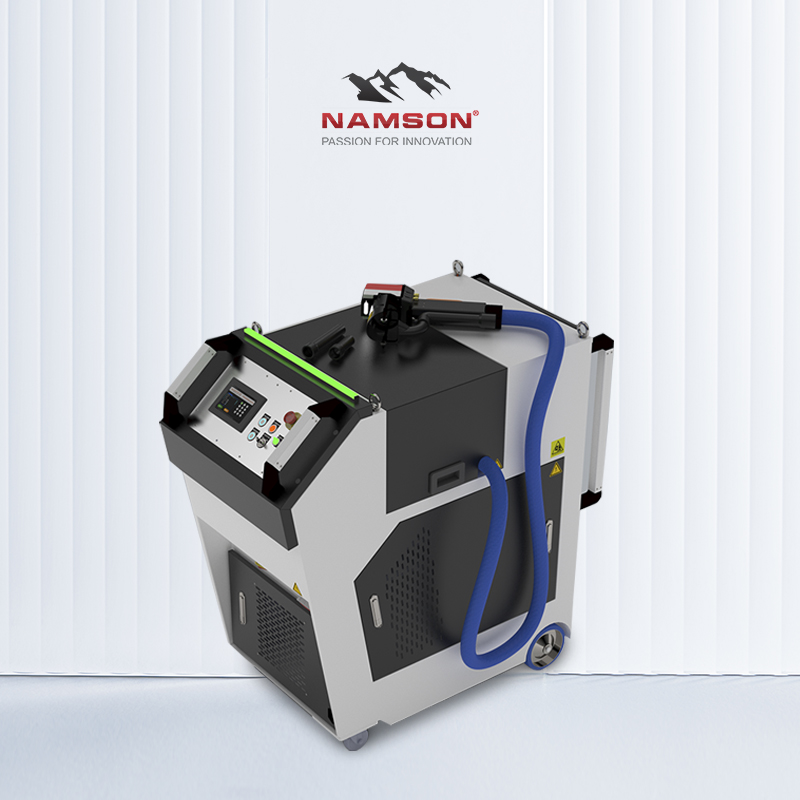

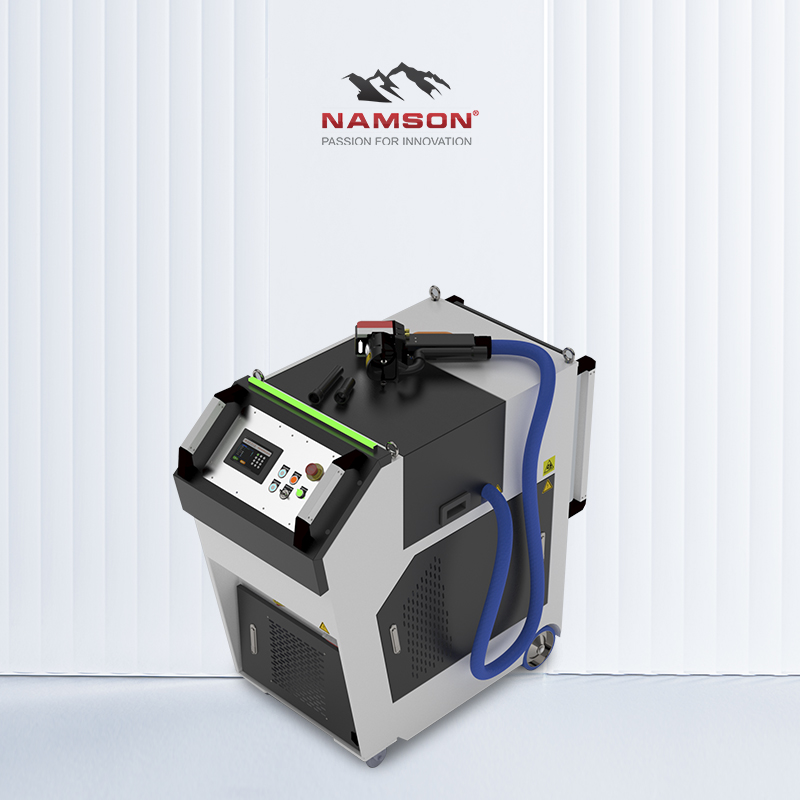

Laser cleaning machine Namson PowerCLEAN 500W Handheld

ADVANTAGES

Long Lifetime.
Higher Efficiency.
Easy operation.
No Damage.
No Residual.
No Pollution.

SPECIFICATIONS

SPECIFICATION	UNIT	POWERCLEAN 500W
Laser Ave.power	W	500
Pulse Energy	mJ	100
M2	Value	N/A
Customize laser power	%	10 – 100
Pulse width	ns	20 – 100
Pilot light	Yes/No	Yes, 650nm, 0.5mW
Focusing	Type	Focusing tripod with support wheel
Positioning speed / Marking Speed	mm/s	2500/12000
Spotsize	um	200 ~ 300 @FL254
Cable length	m	5
Control	Type	Touch screen handheld file selector
Control cabinet	Type	Trolley
Interface	Type	USB
File Storage	file, GB	16, Max 2GB
Cooling	Type	Water
Power Supply	Type	100 – 240VAC, 50 – 60Hz – Built-in voltage stabilizer
Ambient Temperature	Type	* 5 ~ 42 °C @50% Power 5 ~ 36 °C @100% Power
Ambient Humidity	Type	* 10 ~ 95%, Non-condensed
Weight	Kg	* Scanhead: 5 Kg * Cabinet: 56 Kg * Touch screen handheld file selector: 0.8 Kg
Dimension	mm	Scanhead: 370 x 194 x 443 (D x R x C) Cabinet: 662 x 483 x 277 (D x R x C) Touch screen handheld file selector: 200 x 41 x 158 (D x R x C, no stand)

APPLICATIONS

Mold Cleaning

Peeling or Coating Removing

Rust Removal

Welding Pretreatment

CATALOGUE

Documentation Name	View
NAMSON POWERCLEAN- HANDHELD-500W	CATALOG REQUEST
