NAMSON POWERMARK PCB LASER MARKING CUTTING SYSTEM PMA-PCB 0404-U020LA

PRODUCT INTRODUCTION

PMA-PCB 0404-U020AL-00-B1-10 is specialized system for PCB marking & cutting application.

PMA-PCB 0404-U020AL-00-B1-10 enables user to permanently mark various data for PCB, FPCB industry: Number, text, barcode 1D, 2D, logo, etc. automatic cutting, drilling on PCB

System includes:

PowerMARK UV laser marking machine, loading/unloading module, marking control software, camera vision for auto-positioning, fume extractor, vision error checking (optional),…

PowerMARK PMA-PCB 0404-U020AL-00-B1-10, can be integrated inline with SMT system, load PCB from other line un-stacker to marking/cutting station and process laser marking/cutting automatically. By integrate with other options, fully operation from loading, positioning, marking, checking, NG eliminating, unloading, are all linked and automatically processed. Data log for production, Good/NG product can be available as per requirement. PMA-PCB 0404-U020AL-00-B1-10 are equipped with common I/O for PLC and automation integration with other manufacturing systems.

PowerMARK PMA-S-U020AL-00 B1-10 laser marking machine,

• Suitable for marking/cutting electronics items, PCB, FPCB, semi-conductor…
• Operation in stand-alone mode or integrated to automation system with I/O
• UV nanosecond laser source Avia LX from Coherent (USA) High pulse energy at high frequency, high durability (20,000 hours continuously work with stable power – no degradation with 20 spots auto shifting of THG.)
• Flexible optical configuration with user replaceable optic for scan field: 100mm/175mm/250mm/300mm
• Industrial rack type controlled box with ready to use I/O for integration: START, STOP, READY, FINISH,…
• Real-time operation condition monitoring with diagnostic and notify system criteria: scan module temperature, cabinet
• temperature, power supply status, encoder signal, etc.
• Laser scanning head up to 800 cps with positioning speed up to 12.000 mm/s

Namson PowerMark laser marking/cutting control software:

Multiple languages: VN/EN/JPN

• Design, control the laser parameter setting that optimum for every laser machine mode and material.
• Laser parameter library store the pre-set parameter set and can be apply quickly for application. This helps to save much operation and cycle type.

• Customized software module and HMI for integrating with customer production and manufacturing management software and system: MES, Oracle, NBB, iFUSE, etc. or inline integration with other external devices (measurement tool, check tool, etc.)

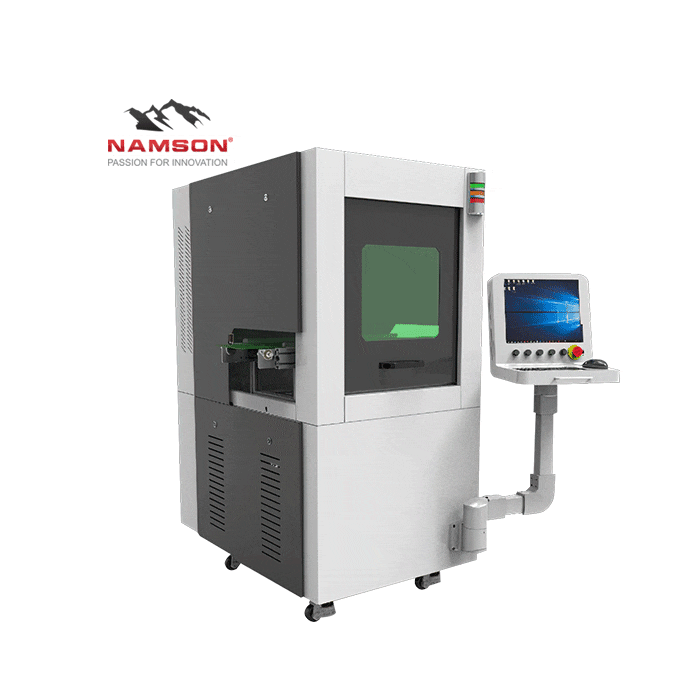

Enclosed workstation

SPECIFICATION

APPLICATIONS

Permanently mark various data for PCB, FPCB industry: Number, text, barcode 1D, 2D, logo, automatic cutting, drilling on PCB.
