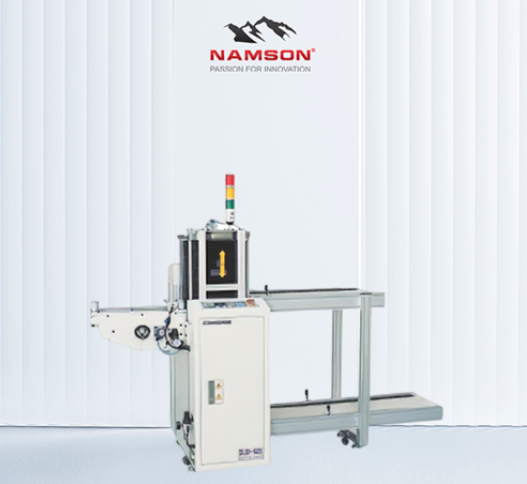

MAGAZINE UNLOADER PCB MACHINE SUD-120Y

Features Error message display and special ability key Perfect fixing with magazine dual clamp unit Various feeding pitch 1~4 steps (10m/m, 20m/m, 30m/m, 40m/m) Possible to line with various kinds…

Details

GET A QUOTE

APPLICATION

INDUSTRIES

Electronics – Semiconductor

FUNCTION

Accessories

MATERIAL

Semi-conducting material

PRODUCT DESCRIPTION

Features

Error message display and special ability key
Perfect fixing with magazine dual clamp unit
Various feeding pitch 1~4 steps (10m/m, 20m/m, 30m/m, 40m/m)
Possible to line with various kinds of machine
YL size double ball screw up down unit (patent application)
Convenient to change position of pusher cylinder
SMEMA INTERFACE

Option

Safe Cover-CE
Magazine change overtime (18 seconds)
Up/Down Solt Start/Stop (Inverter)
Touch screen
Possible to change magazine loading volume
Prevention function from PCB damage
Space saving type(90°)

Specification

Specification	Value
PCB Size	50×50 ~ 300×440
Capacity (Magazine)	120
Quanlity (Magazine)	Upper: 1; Lower: 2
PCB Feed Pitch	4 types; 10 ~ 40
PCB Input Height	900 +/-30
Air	5.0
Power Supply	100 ~ 240 VAC, 50~60Hz, (V, Hz option)
Weight	200
Dimension (L x W x H)	2090x 840 x 1150
