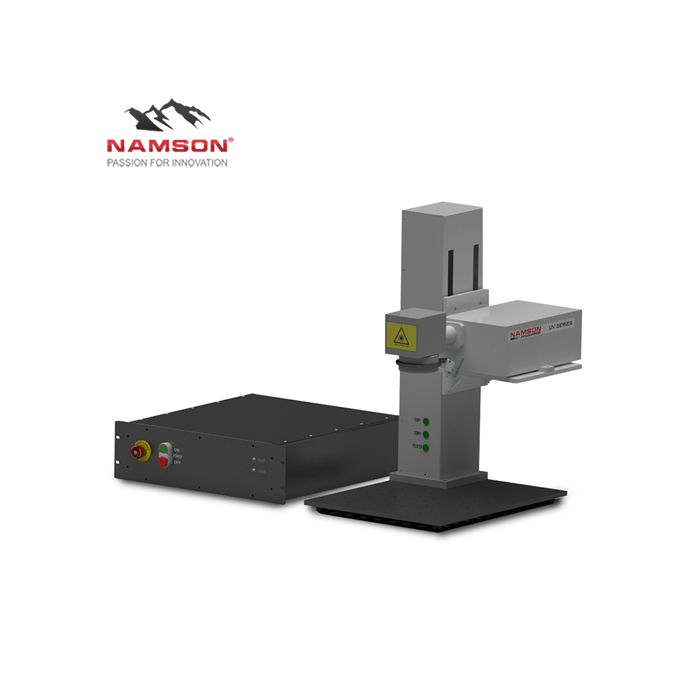

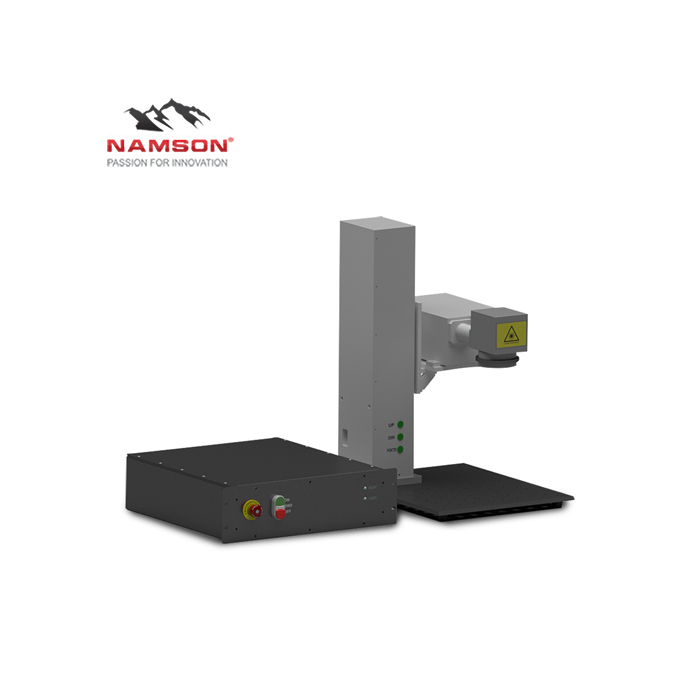

UV LASER MARKER – POWERMARK U-SERIES
UV laser Marker – PowerMARK U-series laser marking machine – dedicated marking solution for most of manufacturing industries.
Details
- High pulsed energy laser beam
- Short wavelength effectively applied for heat sensitive material
- High beam quality with low HAZ
- Wide range of choice for laser power from 3W to 45W with high repetition rate
APPLICATION
INDUSTRIES
FUNCTION
MATERIAL
PRODUCT DESCRIPTION
PRODUCT INTRODUCTION
UV laser Marker – new laser system using the ultra-violet laser (UV) in most of non-thermal processing applications. Its benefits are fine marks, high speed of marking and very small Heat Affected Zone
New diode pump solid state laser of UV wavelength is using more and more in manufacturing of: Electronics, semi-conductor, medical, plastic, F&B, etc.
PowerMARK U-series llaser marking machine – dedicated marking solution for most of manufacturing industries.
The machine is made from PermAlign technology by Coherent to ensure adjustment and fix of optical components by weld to provide the best and most stable optical bonding throughout the entire product life cycle.
Contact Nam Sơn to receive a detailed quotation and consultation on the right laser solution for your business via hotline
FEATURES
 |
Laser sources is manufactured in cleanroomPowerMARK U Series laser sources is manufactured in cleanroom for appriciate efficiency, durable performance continuously for thousands hours. PowerMARK U Series is developed on the basis of multi-Harmonic Pulse Laser source to maintain system life is longer , more outstanding stability and lower pulse noise. |
 |
Fit and compact design, air-cooledEasy to combine with automation and industrial manufacturing (water-cooled option) |
 |
AAA laser diode (Aluminum-free Active Area)AAA laser diode (Aluminum-free Active Area) uses for extended product life. Outstanding optical performance. |
SPECIFICATIONS
PowerMARK Advance UV
| Model | PowerMARK Advance UV | ||||
| Spe | unit | PMA-A-U | |||
| Laser source | type | DPSSL UV 355nm laser | |||
| Laser Power | W | 0.5@60 | 1@60 | 5@50 | 8@50 |
| Frequency | KHz | 20-100kHz * | |||
| PRFo – PRFmax (WF0) | KHz | 60 | 60 | 50 | 50 |
| Laser Cooling | Air / Water | Air | |||
|
Beam quality (M2)
|
<1.2 | ||||
| Red guild laser | type | 355nm low power review | |||
| Scanhead type | type | 2D / 2DR / 2DV / 3D | |||
| Lens option | mm | 70mm | 100mm | ||
| Spotsize | um | 8 | 14 | ||
| Marking Speed | mm/s | Focus: 12000 mm/s Marking: 3000 mm/s |
|||
PowerMARK Standard UV
| Model | PowerMARK Standard UV | |||
| Spe | unit | PMA-S-U | ||
| Laser Power | W | 20@100 | 25@100 | 30@120 |
| Frequency | KHz | |||
| PRFo – PRFmax (WF0) | KHz | 100 | 100 | 120 |
| Laser Cooling | Air / Water | Water | ||
|
Beam quality (M2)
|
<1.2 | |||
| Red guild laser | type | 355nm low power review | ||
| Scanhead type | type | 2D / 2DR / 2DV / 3D | ||
| Marking Speed | mm/s | Focus: 12000 mm/s Marking: 3000 mm/s |
||
PowerMARK ECO Advance UV
| Model | PowerMARK ECO Advance UV | |||
| Spe | unit | PMAE-A-U | ||
| Laser source | type | DPSSL UV 355nm laser | ||
| Laser Power | W | 3@30 | 5@30 | 10@50 |
| Frequency | KHz | 30-150 | 30-150 | 30-150 |
| PRFo – PRFmax (WF0) | KHz | 30 | 30 | 50 |
| Laser Cooling | Air / Water | Water | ||
|
Beam quality (M2)
|
<1.2 | |||
| Red guild laser | type | 355nm low power review | ||
| Scanhead type | type | 2D / 2DR / 2DV / 3D | ||
| Lens option | mm | 70mm | 100mm | |
| Spotsize | um | 8 | 14 | |
| Marking Speed | mm/s | Focus: 12000 mm/s Marking: 3000 mm/s |
||
EcoMARK Standard UV
| Model | EcoMARK Standard UV | |
| Spe | unit | EMA-S-U |
| Laser source | type | DPSSL UV 355nm laser |
| Laser Power | W | 20@60 |
| Frequency | KHz | 50-200 |
| PRFo – PRFmax (WF0) | KHz | 60 |
| Laser Cooling | Air / Water | Nước |
|
Beam quality (M2)
|
<1.5 | |
| Red guild laser | type | 758nm red laser 5mW |
| Scanhead type | type | 2D / 2DR / 2DV |
|
Marking Speed
|
mm/s
|
Focus: 12000 mm/s |
| Marrking: 3000 mm/s |
SALIENT FEATURES
- High pulsed energy laser beam
- Short wavelength effectively applied for heat sensitive material
- High beam quality with low HAZ
- Wide range of choice for laser power from 3W to 45W with high repetition rate
- PowerMARK U-series laser marking machine owns the extremely marking capability on all materials: from metal to nonmetals, the laser marking machine performs quickly.
- Labor cost minimization: With laser marking machine, you just control the marking/cutting through a computer. Least human operation or even automation integrated enables machine running well yet ensures the completed work and quality of the product.
FACILITY REQUIREMENTS
- Powerrotary Rotation module for round marking
- Marking on the fly option for conveyor integration
- XY-Stage CNC module
- Close workstation cabinet
- Vision camera for auto-positioning & auto-alignment
APPLICATIONS
The Machines are used in industry such as:
Medicines |
Packages |
Eletricity- Electronic |
Mobile |
Sun Power |
3D Printing |
The applications are:
|
The materials are:
|
