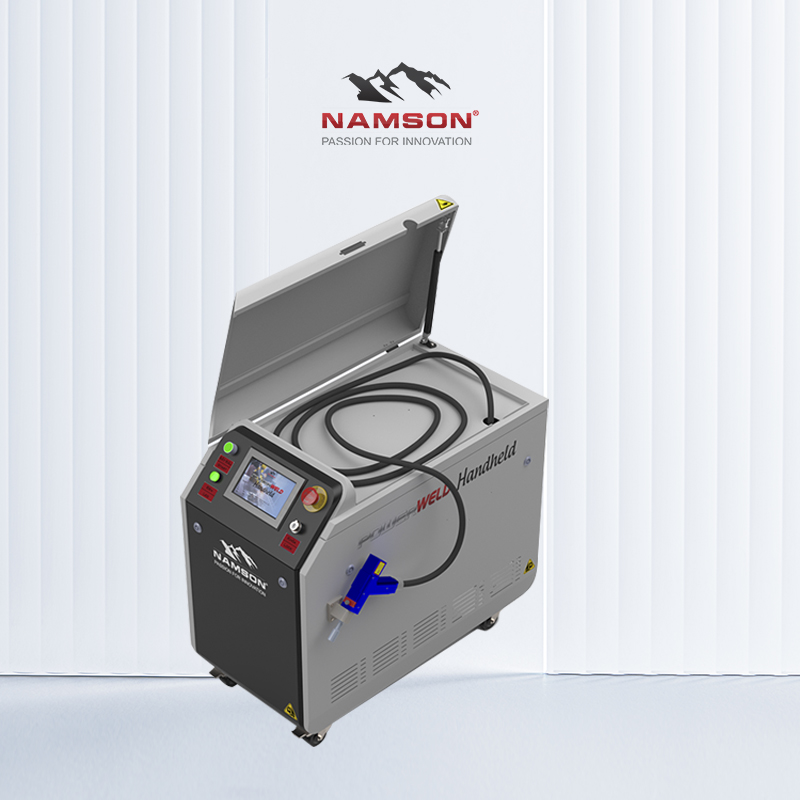

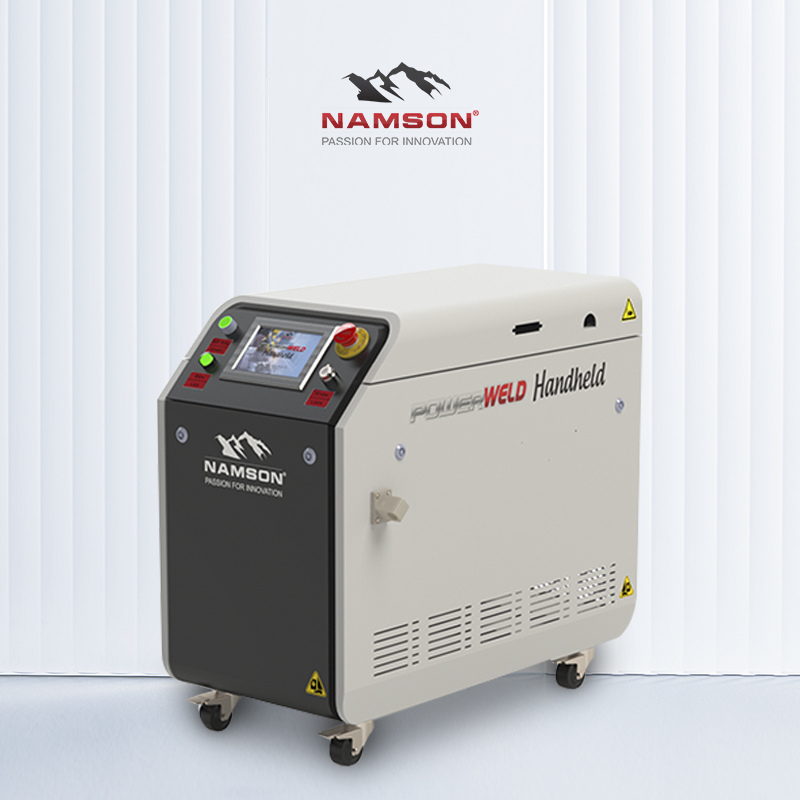

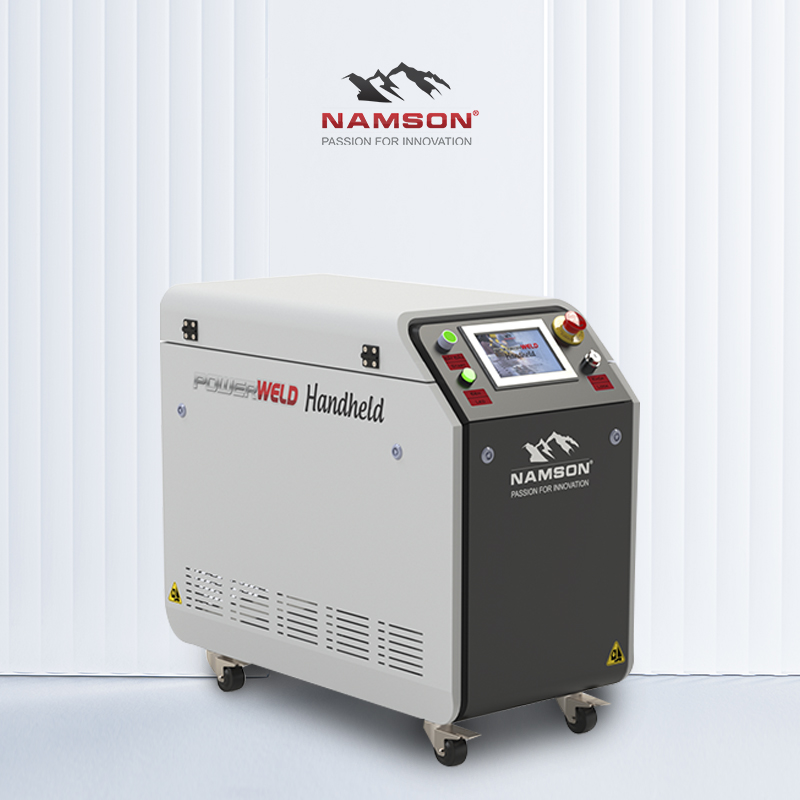

POWERWELD HANDHELD COMPACT 1500W-RA
The PowerWELD Handheld Compact 1500W-RA handheld laser welder is a compact version with integrated vortex welding mode. With wobble welding technology, it helps to increase the appraisal ability for the weld.
Details
- Multi wobble mode
- Maximum 2kw
- Compact in size
- Wire feeder included

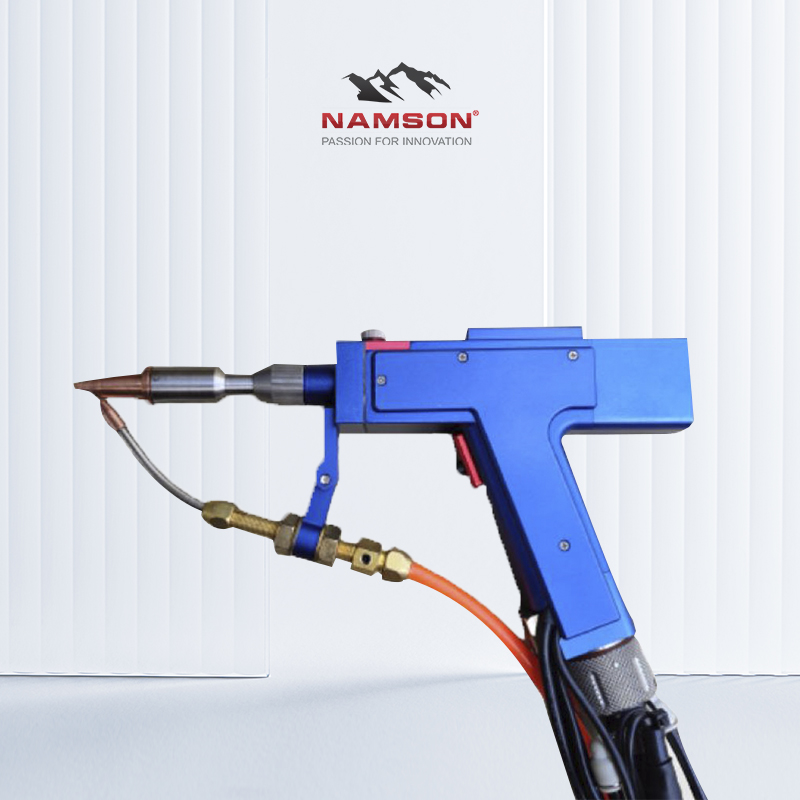

- High quality laser welding head
- Touch screen, interface is designed to be easy to use
APPLICATION
INDUSTRIES
FUNCTION
MATERIAL
PRODUCT DESCRIPTION
INTRODUCE
The PowerWELD Handheld Compact 1500W-RA handheld laser welder is a compact version with integrated vortex welding mode. With wobble welding technology, it helps to increase the appraisal ability for the weld.
PowerWELD Handheld Compact 1500W-RA handheld
Contact Nam Sơn to receive a detailed quotation and consultation on the right laser solution for your business via hotline
FEATURES
- Multi wobble mode
- Maximum 2kw
- Compact in size
- Wire feeder included
- High quality laser welding head
- Touch screen, interface is designed to be easy to use
Use a wire feeder with a slotted solder tip and solder thread for support during soldering
SAMPLES
SPECIFICATIONS
| Laser source | Fiber laser/Raycus Max IPG JPT | Type |
| Laser wavelength | 1064 | nm |
| Laser mode | Continuous or pulse | Type |
| Laser power | 1500 | W |
| Peak power | 1500 | W |
| Pulse energy | No | J |
| Frequency | 20 | kHz |
|
Beam quality |
~3 | M2 |
| Red guild laser | Yes I 650 nm, 0.5mW | Description |
|
Welding beam type |
Wobble | Type |
| Wobble size | 5 | mm |
| Cable length | 20 | m |
| Cooling | Water | Description |
| Interface | Touch screen HMI 7″ | Type |
| Cabinet | Trolly, compact | Type |
| Safety | Class IV | Type |
| Operating | Temperature 15 – 45 °C, Humidity <85% (Non-condensed) | Description |
| Dimension net | 900 x 480 x 820 | mm |
| Weight net | 130 | kg |
| Power supply | 7000 | W |
APPLICATIONS
