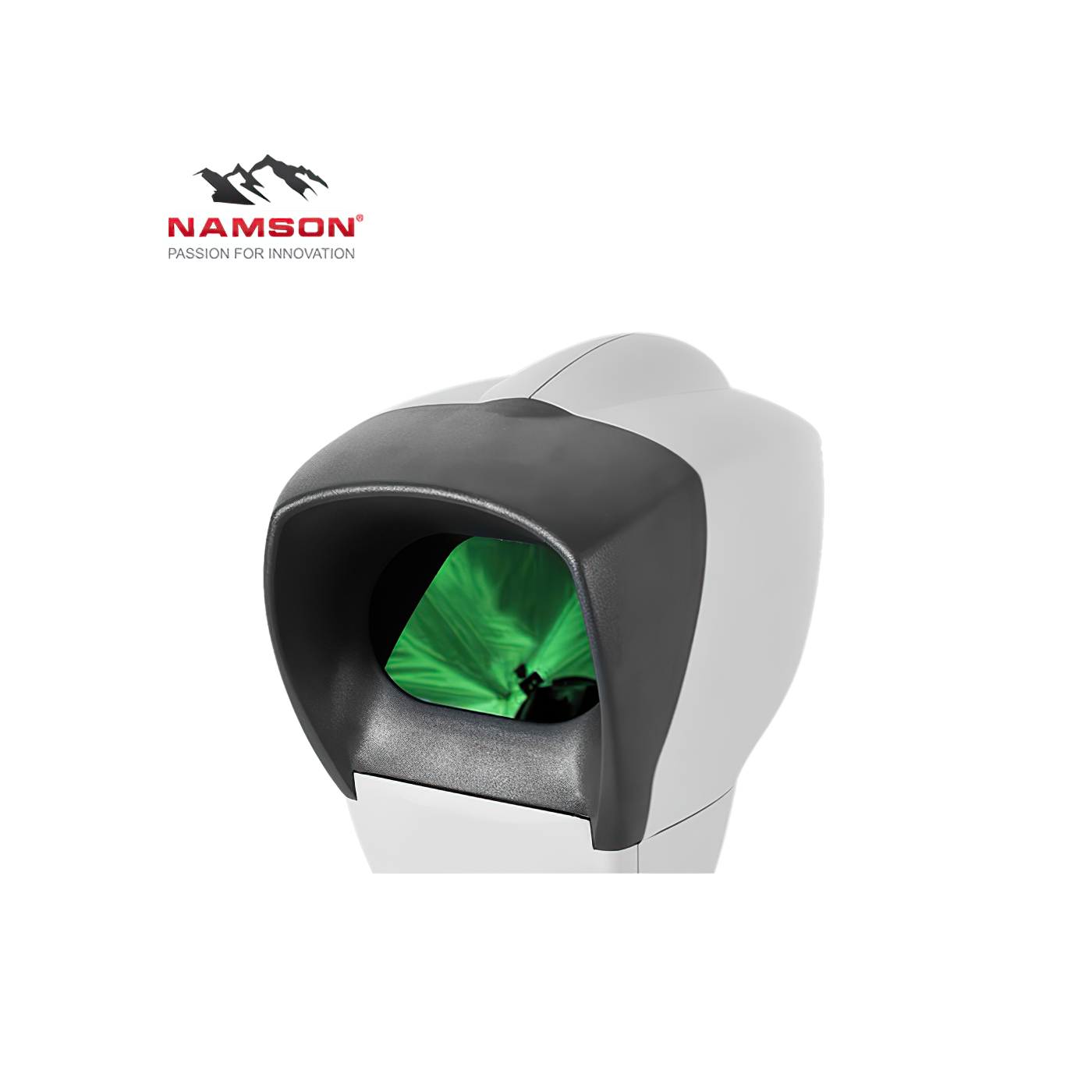

NAMSON POWERWELD 150J LASER WELDER

Namson PowerWeld 150 Joule laser welding machine is derived from the Italian laser welding technology.

Details

Excellent for silversmiths
Welding precious metals like platinum, titanium, gold, silver, palladium
Repair of antique jewelry
Repair of settings without removing the stones
Repair of watches, eyewear and other minutia
Welding of elements using filler material without the need of additional cleaning
Repairs casting defects such as porosity or breakages, by simply welding those areas with solder wire.
Integrated videocam
24-month warranty

Liên hệ tư vấn

APPLICATION

INDUSTRIES

Automative

Electronics – Semiconductor

Jewelry

Mechanism - Machining

Mold - Precision Tool

Pharmaceutic - Cosmetic – Medical

FUNCTION

Seam laser welding / Spot laser welding

MATERIAL

Gold - Silver

Aluminum

Copper - Brass

Metal Cylinder

Nickel Alloy

Stainless Steel

Steel

Titan

PRODUCT DESCRIPTION

PRODUCT INTRODUCTION

Namson PowerWeld 150 Joule laser welding machine is derived from the Italian laser welding technology that is the First Assembly in Vietnam with brand of Namson PowerWeld.

Contact Nam Sơn to receive a detailed quotation and consultation on the right laser solution for your business via hotline

Hotline: 0909961715

SALIENT FEATURES

7” Color touch screen display
Preloaded tutorials
Leica 10x stereomicroscope
Double integrated cooling system
Internal joystick
Large welding chamber
Wi-Fi connection
Cold white LED light illumination

FEATURES

Large welding chamber

Equipped with a large welding chamber, Namson PowerWeld 150 Joule is one of the lasers that offers the greatest flexibility as regards both the power and size of the objects it can weld.

Double cooling system

It is also equipped with a double cooling system that permits intensive use even under extreme environmental conditions.

Integrated webcam with display of the operations directly on the 7” LCD display

A large welding chamber, integrated webcam with display of the operations directly on the 7” LCD display, WI-FI connection for entry of the machine in a network.

Energy output up to 150 J

The machine is able to reach an energy output up to 150 J for the maximum flexibility of use in small workshops or in small to medium-sized factories with continuous production.

SPECIFICATION

	PowerWeld 150J
Laser source and wavelength	Nd: YAG 1064nm
Average power	100W
Peak power (kW)	7 kW
Energy (Joule)	0.1 ÷ 150 J
Impulse time	0.1 ÷ 20 ms
Pulse Frequency	0.5 ÷ 30 Hz
Spot diameter	0.2 ÷ 2.0 mm
Spot setting	Motorized, 30 positions
Programs	Pulse shaping 6 preset
Memories cell stored	100
Internal control	Joystick
External control	7” Color Touch Screen
Input power	230V AC, 50/60 Hz, single phase
Ampere	10A
Max dimensions (WxDxH)	50x50x80 cm
Weight	55 Kg
Type	Desktop
Argon/ Air nozzle	Yes
Integrated camera	Yes

CATALOGUE

Documentation Name	View
NAMSON POWERWELD 150J LASER WELDER	CATALOG REQUEST
