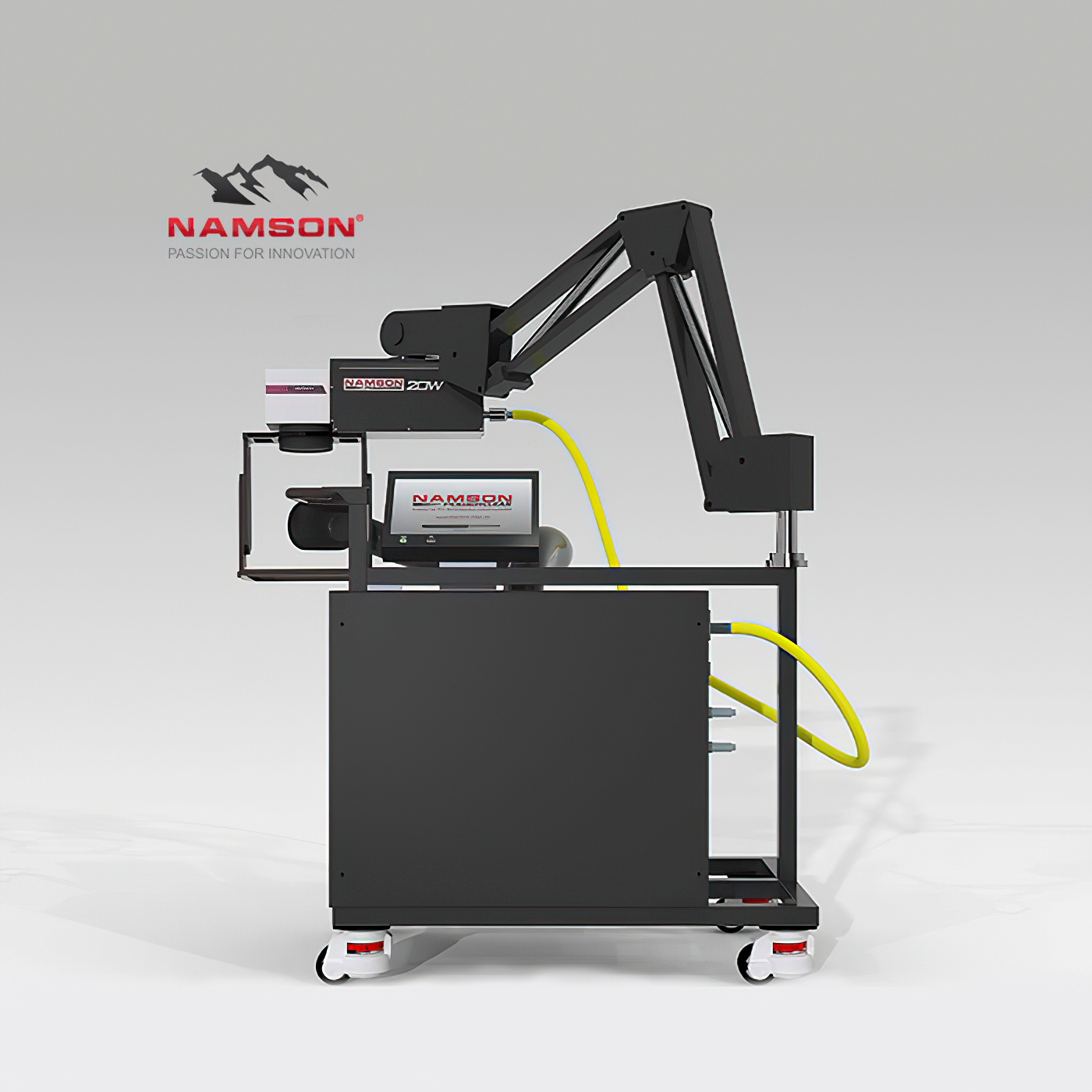

NAMSON POWERMARK FIBER MOBILITY SERIES LASER MARKING MACHINE
The PowerMARK Mobility Series is a series of hand-held laser marking machines, which use advanced Fiber laser technology produced.
Details
- Fiber laser, the light path is closed and stable.
- High durability, life expectancy over 100,000 hours.
- Environmental protection and energy saving.
- Integrated power source from 20 – 500W
- Control cabinet, support arm with high flexibility and mobility that fit the the demand of marking on heavy and big size product.
- 24 months warranty directly from the manufacturer
APPLICATION
INDUSTRIES
FUNCTION
MATERIAL
PRODUCT DESCRIPTION
PRODUCT INTRODUCTION
The PowerMARK Mobility Series is a series of hand-held laser marking machines, which use advanced Fiber laser technology produced by Nam Son – the leading company in providing material laser equipment in Vietnam. Namson PowerMARK Mobility Series is designed to be compact, flexible, and easy to apply for a variety of marking and cleaning needs.
Fiber laser source with diverse power
The PowerMARK Mobility Series use the latest technology Fiber laser source with a power output of up to 500W (20W – 500W options available), capable of marking almost any material, especially metal.
The engraving head has high stability
PowerMARK is developed with Scanlab (Germany) engraving head with high stability. Extremely fast marking speed of at least 12000mm / s, this helps to achieve the highest productivity in the shortest possible time.
There are many lenses for you to choose from (70mm – 300mm), and the lenses can be easily removed for inspection and cleaning.
Infinitesimal diameter beam
With a wavelength of 1064nm, the Fiber laser source produces a beam with an extremely small focal diameter of about 27um – 69um, which increases the processing density by 100 times compared with a CO2 laser with the same power.
High durability
With life expectancy over 100,000 hours, you can save money and maintenance time.
Contact Nam Sơn to receive a detailed quotation and consultation on the right laser solution for your business via hotline
SPECIFICATION
| Series | PowerMARK Advance Fibe | PowerMARK Standard Fiber | PowerMARK ECO Advance Fiber | PowerMARK ECO Standard Fiber |
| Model | PMA-A-F | PMA-S-F | PMAE-A-F | PMAE-S-F |
| Laser |
1064nm Yb Fiber Laser Series
Integrated laser indicator source: 650nm / 5mW |
|||
| Power | 20W / 30W / 50W / 70W / 100W / 130W / 200W | 20W / 30W | 20W | |
| Operating frequency | 1-4160KHz | 30-80KHz | ||
| PRFo – PRFmax (WF0) | 20-1000KHz | 20KHz | ||
| Pulse width | 3ns – 520ns | 200ns | ||
| Source type | RZ / EZ / HS / EM* | R type | ||
| Beam quality (M2 ) | Nguồn S: M2 ≤ 1.3 / Nguồn Z: M2 ≤ 1. 6 | M2 ≤ 1.3 | ||
| Indicator lights | 655nm / 5mW | |||
| Engraving head direction | 2D (two-axis XY) / 3D | |||
| Engraving speed |
Scanlab engraving head system (Germany)
Engraving speed: <12000 mm / s, up to 850 cps (higher speed optional) |
|||
| Lens options | 70mm 100mm 140mm 175mm 205mm 250mm 300mm | |||
| Beam diameter | 27um – 69um (other beam diameter optional) | |||
| Cable length | 2m – 3m | |||
| Cooling system | Air, integrated laser source, saving area and electricity | |||
| Integrated CN computer | Yes | No | Yes | No |
| Raise the focus | Joystick controlled by the motor | |||
| FMseries (optional) |
Integrated hand controller
High-speed continuous marking Save files independently |
|||
| Integrated signal |
– Signal start / end notification
– Input signal – 16 industrial I / O signals |
– Signal start / end notification
– Input signal |
– Signal start / end notification
– Input signal – 16 industrial I / O signals |
– Signal start / end notification
– Input signal |
| Optional integration function |
Chain engraving
Removable file storage 3D engraving head CNC workspace Rotaty attachment Integrated I / O |
Chain engraving
CNC workspace Rotaty attachment |
Chain engraving
Removable file storage 3D engraving head CNC workspace Rotaty attachment Integrated I / O |
Chain engraving
CNC workspace Rotaty attachment |
| Electricity supply | 220 – 240 VAC | |||
| Power consumption | Avg. Consumption: 100W / Max. Consumption: 200W | |||
| Work Enviroment | Temperature: 150 C – 350 C /Humidity: 30% – 85%, no condensation | |||
| Weight | 45kg | |||
| Dimension |
Control Box: 474mm x 404mm x 175mm
Engraved head cluster: 388mm x 94mm x 118mm (Excluding tripod) |
|||
SALIENT FEATURES
- Fiber laser, the light path is closed and stable.
- High durability, life expectancy over 100,000 hours.
- Environmental protection and energy saving.
- Integrated power source from 20 – 500W
- Control cabinet, support arm with high flexibility and mobility that fit the the demand of marking on heavy and big size product.
- 24 months warranty directly from the manufacturer
FACILITY REQUIREMENTS
- Turning tables
- Working /guard room
- Table XY
- 3D module
- Mobility engraved head cluster
