Namson PowerMARK 100W Trolley Version
The Namson PowerMARK 100W Trolley Version is a industrial handheld laser marking system utilizing advanced Fiber laser technology, manufactured by Namson, the leading company in providing material processing laser equipment in Vietnam
Details
- Enclosed and stable fiber laser beam delivery.
- High durability, with a lifespan over 100,000 hours.
- Environmentally friendly and energy-saving.
- The trolley frame system, mobile control cabinet with power assist arm, and engraving head assembly are designed to meet the engraving needs on large, heavy products requiring flexibility in the engraving mechanism.
- The LED warning light system ensures safety during operation.
- Equipped with a touchscreen and barcode scanner to enhance productivity.
APPLICATION
INDUSTRIES
FUNCTION
MATERIAL
PRODUCT DESCRIPTION
INTRODUCTION
The Namson PowerMARK 100W Trolley Version is a handheld laser marking system using advanced Fiber laser technology, manufactured by Namson – the leading provider of material processing laser equipment in Vietnam. The Namson PowerMARK 100W Trolley Version is designed to be compact, portable, and easy to apply for a variety of engraving and cleaning needs.
In addition to inheriting the superior advantages of previous portable laser marking systems, this fiber laser marking system version has been improved with a modern, convenient, and ergonomic design.
Fiber laser source with various power
The PowerMARK Mobility laser marking system line uses the latest fiber laser technology with a power source of up to 500W (available options from 20W to 500W), capable of engraving on almost all technical materials, especially metals.
Highly stable engraving head
The PowerMARK laser marking system is developed with a highly stable Scanlab (Germany) engraving head. Superfast engraving speed (Positioning: 10,000mm/s – Engraving: 2,500mm/s), helping to achieve the highest productivity in the shortest time.Various lenses are available (Default: 100mm / Optional: 70mm, 175mm), and lenses can be easily removed for inspection and cleaning.
Ultra-small beam diameter
With a wavelength of 1064nm, the Fiber laser source produces a beam with an ultra-small focal diameter of only 50μm, allowing the Namson PowerMARK laser marking system to increase processing density by 100 times compared to a CO2 laser marking system with the same power.
Long life helps save costs
The PowerMARK Fiber laser marking system has a theoretical lifespan of up to 100,000 hours, helping you save both costs and maintenance time.
Contact Nam Sơn to receive a detailed quotation and consultation on the right laser solution for your business via hotline
OUTSTANDING ADVANTAGES
- Enclosed and stable fiber laser beam delivery.
- High durability, with a lifespan over 100,000 hours.
- Environmentally friendly and energy-saving.
- The trolley frame system, mobile control cabinet with power assist arm, and engraving head assembly are designed to meet the engraving needs on large, heavy products requiring flexibility in the engraving mechanism.
- The LED warning light system ensures safety during operation.
- Equipped with a touchscreen and barcode scanner to enhance productivity.
SPECIFICATIONS
| Laser wavelength | nm | 1064 |
| Laser power | W | 100 MOPA |
| Peak power | W | >14000 |
| Operating frequency | KHz | 1-4166 |
| PRFo – PRFmax (WF0) | KHz | 100 |
| Pulse Width | ns | 4 – 2000 |
| Pulse energy | mJ | >1.3 |
| PulseTune waveform count | quantity | 37 |
| Laser cooling | Wind / Water | Gió |
| Beam quality (M2) | M2 | <1.6 |
| Indicator light | type | 650nm red laser, <5mW |
| Engraving Head Direction | type | 2D, integrated air blade protects the lens area Cable length 3m (5m optional) |
| Lens size options | mm | + Default: 100mm. + Optional: 70mm, 175mm |
| Beam diameter um | um | 50um (100mm area) |
| Positioning speed / Engraving speed | mm/s | Scanlab Scan Head (Germany brand/Made-in-Germany) + Positioning: 10,000 + Engraving: 2500 |
| Integrated industrial computer | Yes / No | Yes, Advantech/equivalent integrated touch screen industrial computer. |
| Control cabinet | Describe | Flexible trolley-shaped industrial electrical cabinet, integrated with UPS to ensure safety during laser engraving process |
| High speed continuous conveyor engraving line (optional) | Yes / No | Yes |
| Integrated Signals | type | + Start/end notification signal |
| Control Display | type | 13.3” Touchscreen |
| Laser Safety Standards | type | Group IV |
| Temperature Conditions | degrees Celsius | 15 – 40 |
| Humidity Conditions | % | 35 – 85 (non-condensing) |
| Power Supply / Consumption | Input / W | <1800 |
| Weight | kg | Engraving head unit: 8kg Trolley control cabinet: ~200kg |
| Dimensions | mm | Push-type control cabinet: 1000 x 800 x 1298 Engraving head system: 388 x 94 x 188 |

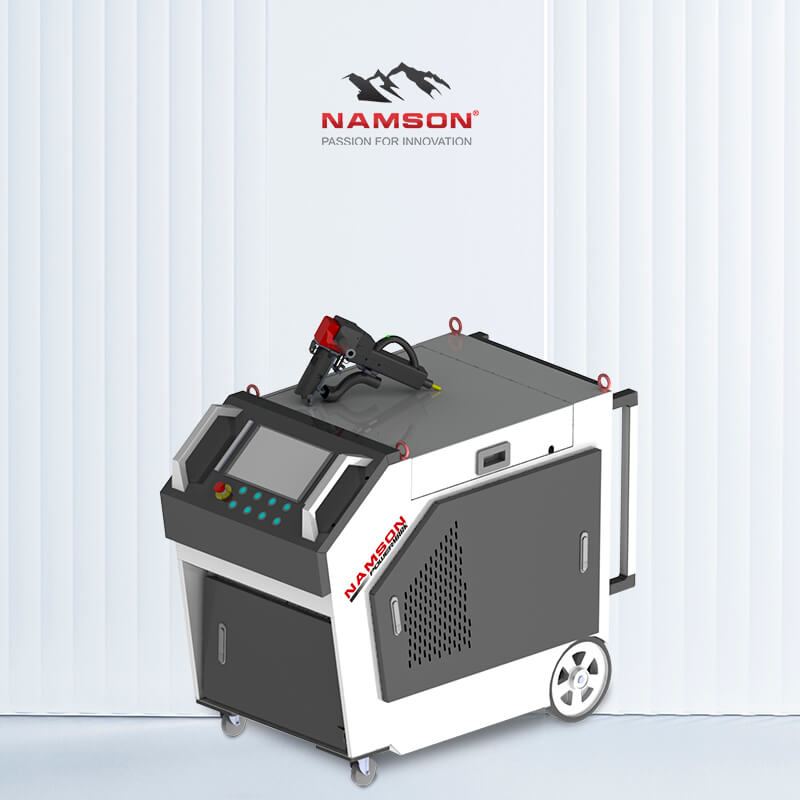

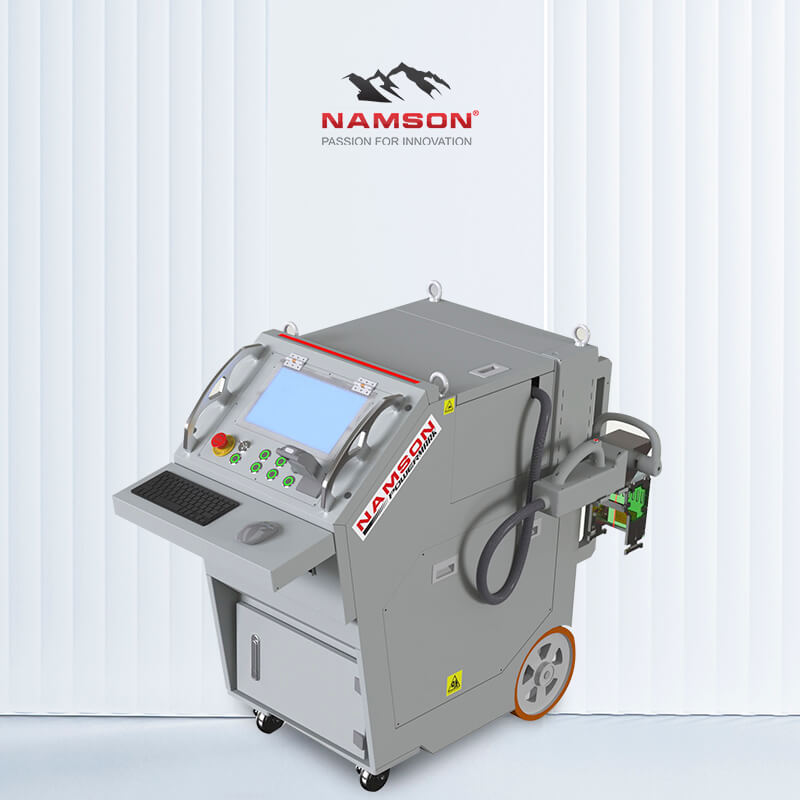

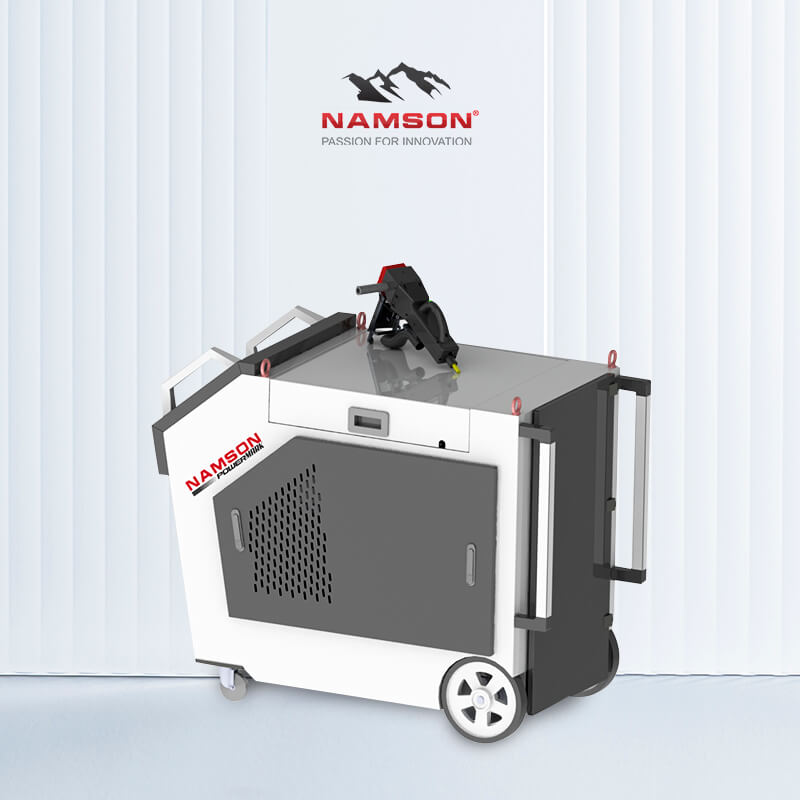

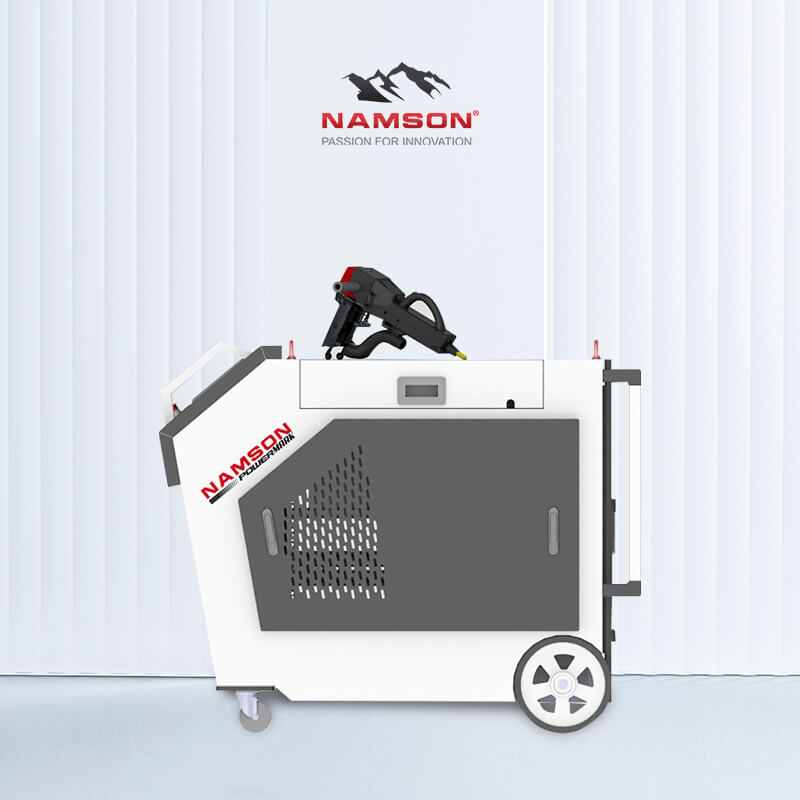

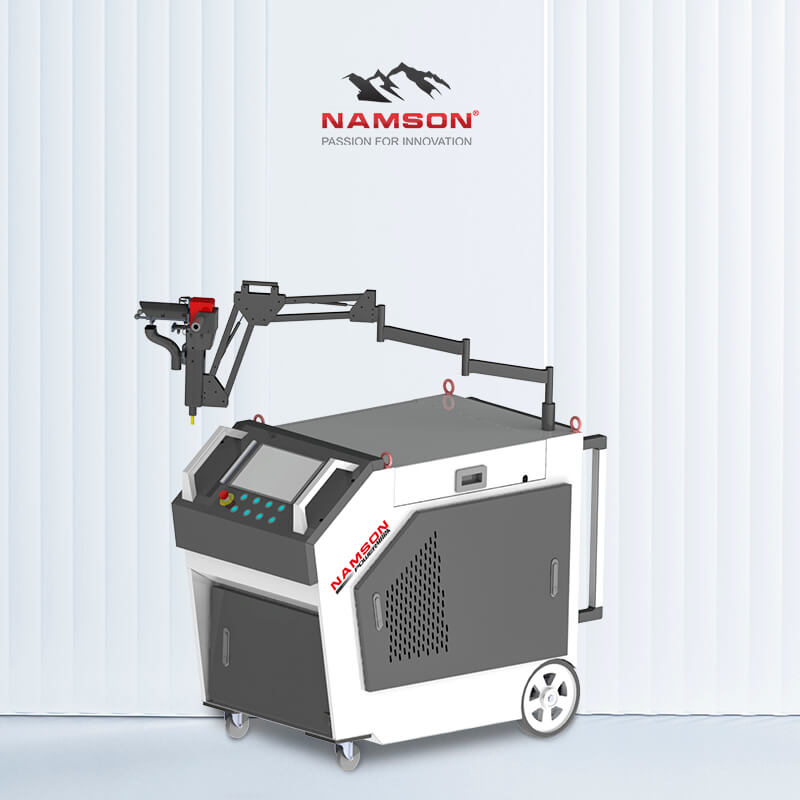

Product design Namson PowerMARK 100W laser engraving machine trolley version
CUSTOMER REFERENCE
 |
 |
Namson PowerMARK 100W laser engraving machine, high-end trolley version, used at the world’s leading automobile factory
