NAMSON POWEREXTRACT PE-1000S FUME EXTRACTOR
Namson PowerEXTRACT PE-1000S Fume Extractor are designed for filtrating hazardous fumes and dusts which is generated in the process of laser work, soldering, welding, printing,…
Details
- Strict welding and painting technology achieve to high tightness and corrosion resistance cabinet.
- Special sound-absorbing materials reduce operating noise to improve working efficiency.
- Three layers filter modules to make sure most fumes & toxic gas to be filtrated, protect environment.
- Integrated cabinet with trundle, more freely, small foot print, installed easily, decreasing energy consumption.
- Easy operation, high quality & favourable price.
APPLICATION
FUNCTION
PRODUCT DESCRIPTION
PRODUCT INTRODUCTION
Namson PowerEXTRACT PE-1000S Fume Extractor are designed for filtrating hazardous fumes and dusts which is generated in the process of laser work, soldering, welding, printing, packing etc. The main function of them is protecting the health of the employees, keeping the machines performance and decreasing environment pollution. Meantime, it can be increase product quality, reduce potential cost.
* Features:
- Strict welding and painting technology achieve to high tightness and corrosion resistance cabinet.
- Special sound-absorbing materials reduce operating noise to improve working efficiency.

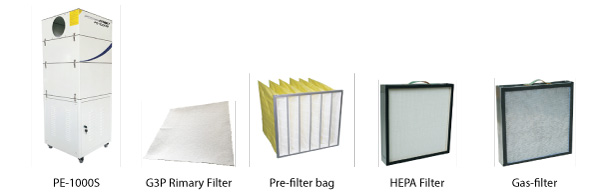

- Three layers filter modules to make sure most fumes & toxic gas to be filtrated, protect environment.
- Integrated cabinet with trundle, more freely, small foot print, installed easily, decreasing energy consumption.
- Easy operation, high quality & favourable price.
Contact Nam Sơn to receive a detailed quotation and consultation on the right laser solution for your business via hotline
SPECIFICATIONS
*The specifications can be changeable.
| Model | PE-1000S |
| Max airflow | 1000m³/h |
| Power consumption | 750W |
| Voltage | 220V,50Hz |
| Motor warranty | One year |
| Air pressure | 2300Pa |
| Filtration rate | ≥99.7% |
| Noise rate | ≤65dBA |
| Dimension | 500x520x1450mm |
| Weight | 85kg N.W / 125kg G.W |
| Inlet diameter | 100mm/ 150mm |
CATALOGUE
| Documentation Name | View |
| NAMSON POWEREXTRACT PE-1000S FUME EXTRACTOR | CATALOG REQUEST |
