MPR MEDIUM PANEL ROUTER

The detailed information

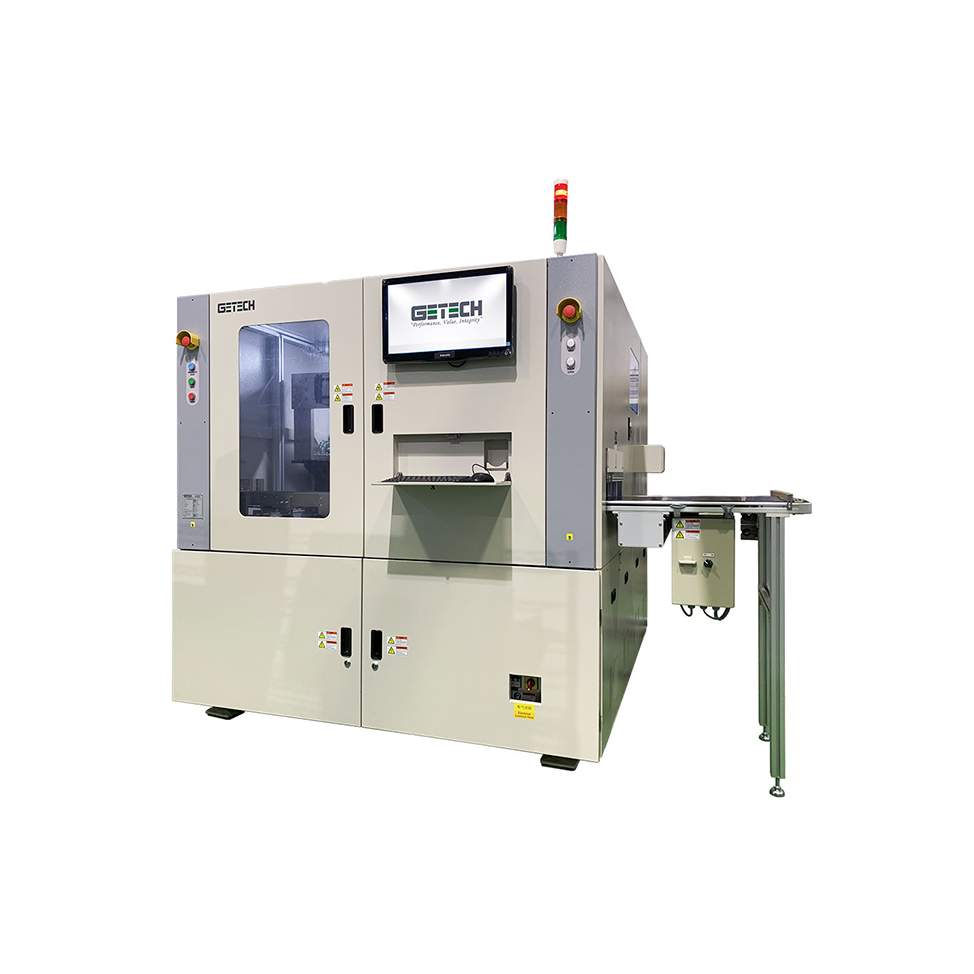

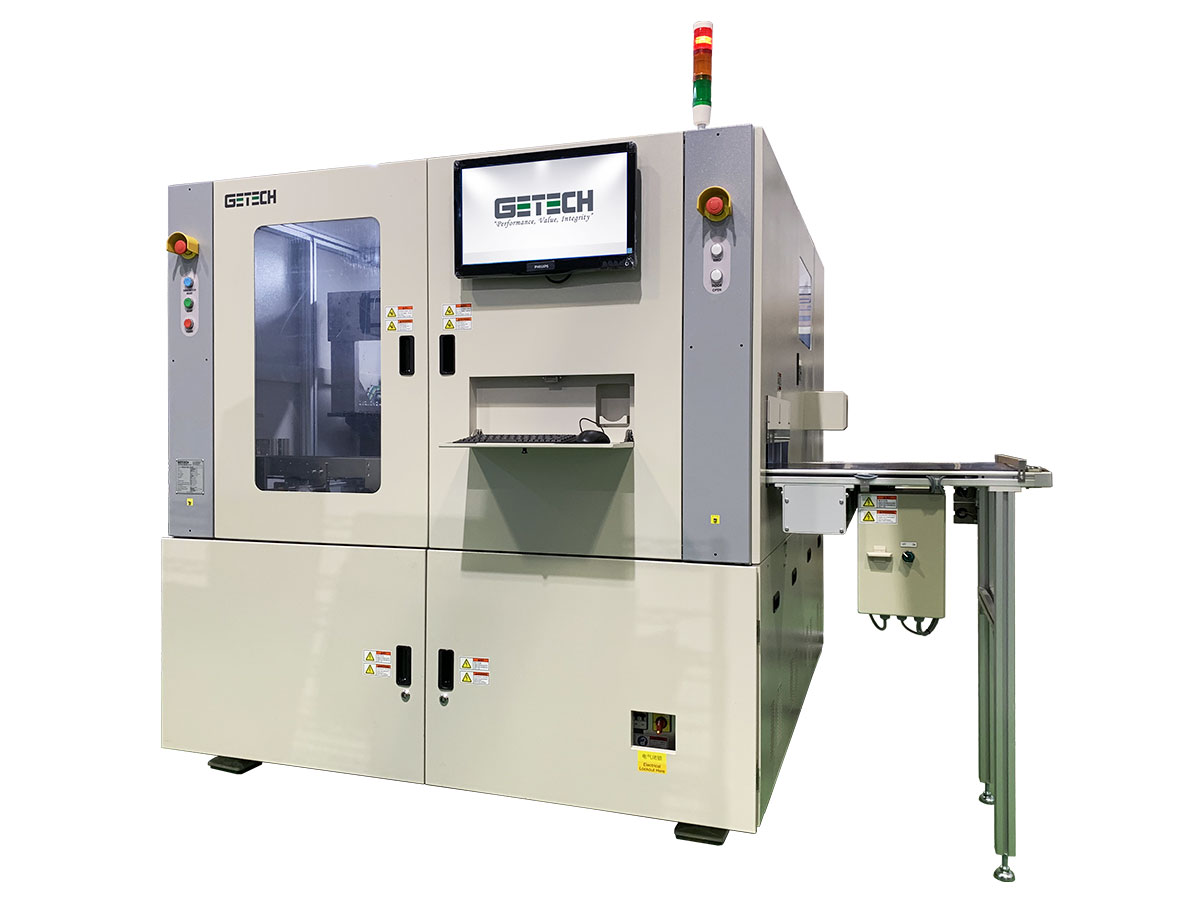

The MPR is an in-line router machine specially designed to route (depanelize) mediumsize panels with PCB sizes up to 450 mm x 400 mm into individual units. It is a fast,space-saving, and accurate machine designed for high-volume production withminimal operator participation. It has twoworktables. While one of the worktables is inhigh-speed routing operation, the other worktable works with the robotic P&P module to unload boards and load the new PCB panel.This gives us 100% operational uptime without the load/unload time issue.

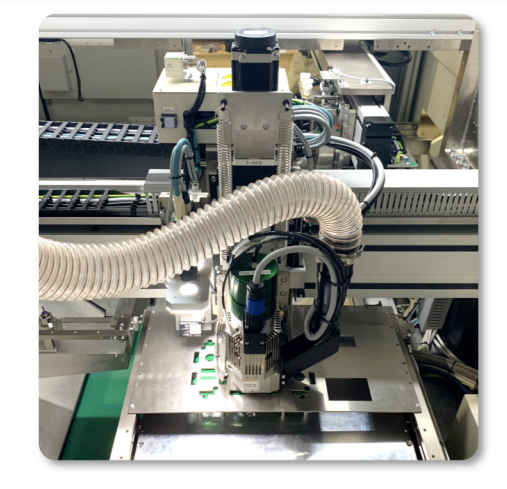

Using a high-resolution CCD camera and MPR user-friendly Windows-based software allows users to program the routing paths in minutes. There are also no limitations on the number of programs stored. MPR uses high-quality components and a welded steel structure to ensure rigidity and high performance. All the axes and linear guides are protected from dust and dirt to increase lifespan and performance.

Advantages of the Product

– Dual table
– High Accuracy & Quality cut
– High – speed routing & throught
– Ready for in-line automation
– High – resolution camera
– Automatic tool change
– Safe protection
– Powerful vacuum system
– User – friendly software
– CE Certification (Option)

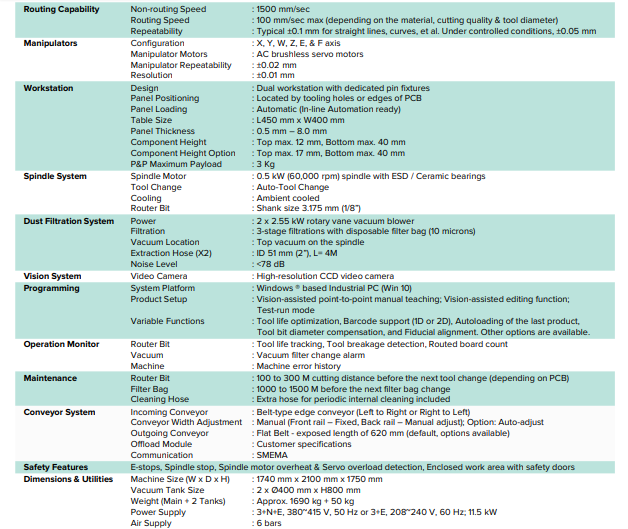

Technical specifications

Video
