LASER MARKING MACHINE TO MARK THE LABELS- LABEL MARKER

PRODUCT INTRODUCTION Laser marking machine LabelMarker Advanced for high-speed marking and cutting of labels. The Label Marker Advanced offers high output through minimum marking and cutting times with a high…

Details

Liên hệ tư vấn

APPLICATION

INDUSTRIES

Automative

PRODUCT DESCRIPTION

PRODUCT INTRODUCTION

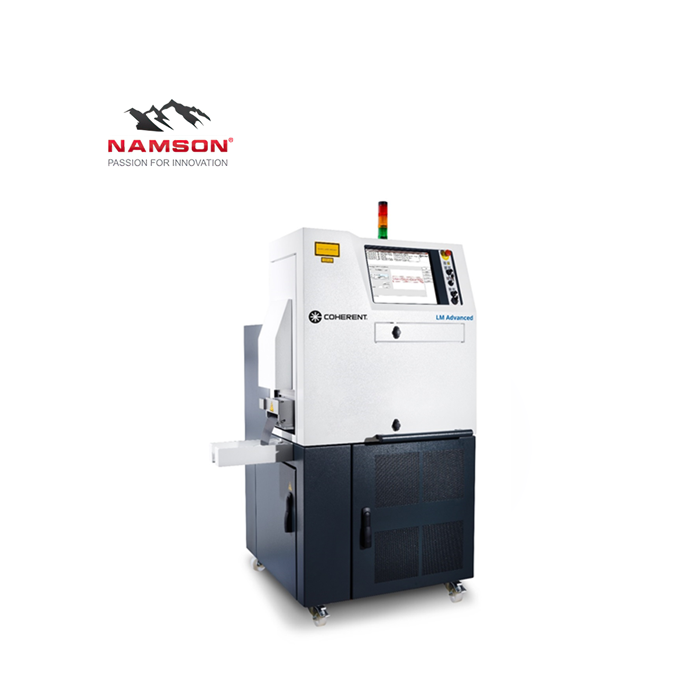

Laser marking machine LabelMarker Advanced for high-speed marking and cutting of labels. The Label Marker Advanced offers high output through minimum marking and cutting times with a high performance laser.

The LabelMarker Advanced is the optimum label marking and cutting solution for highest demands in performance and reliability. Full parametric control enables the laser marking of graphics and machine readable symbols and ensures maximum flexibility.

Features at a glance:

High marking speed
Integrated all-in-one system
Marks all common laser label materials
Easy link to master control systems
Tried and tested application software VLM (Visual Laser Marker)
Automatic foil cutting and foil end warning
Splice detection
Laser type: diode pumped or fiber laser in different power levels
Dimensions (W x H x D): 800 x 1544 x 1115 mm
Label width: 100 mm, 120 mm

Contact Nam Sơn to receive a detailed quotation and consultation on the right laser solution for your business via hotline

Hotline: 0909961715

SPECIFICATION

SPECIFICATIONS	PowerLine
	F 30-1064	F 50-1064	E Air 25-1064	E 30
Type	Fiber	Fiber	Diode-Pumped Solid State	Diode-Pumped Solid State
Laser Power (W)	30	50	25	25
DIMENSIONS
Housing (L x W x H)	1115 x 800 x 1524 mm (43.9 x 31.5 x 60.0 in.)		800 x 800 x 1524 mm (31.5 x 31.5 x 60.0 in.)
Weight	370 kg (815 lbs.) max. – depending on configuration
ENVIRONMENTAL
Operational Temperature	15° to +35° C (+59 to +95 °F)
UTILITY
Electrical (VAC)	400 V (±10%), 3P; N; PE
Frequency (Hz)	50/60
Operating Power (W)	4 kVA
FOIL
Width (mm)	100 or 120
COOLING
	Air	Air	Air	Water-Air

CATALOGUE

Documentation Name	View
LASER MARKING MACHINE TO MARK THE LABELS- LABEL MARKER	CATALOG REQUEST
