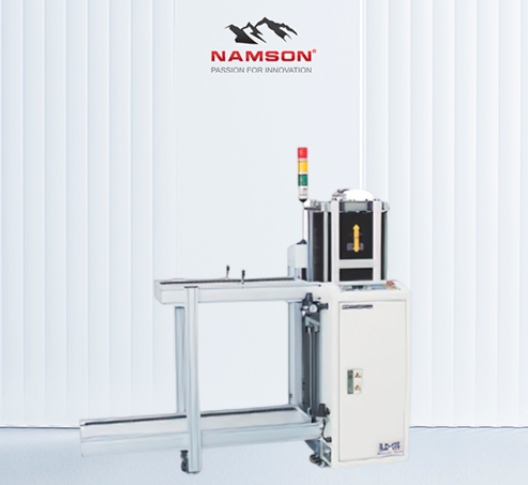

MAGAZINE LOADER PCB MACHINE SUD-120Y

Features Error message display and special ability key Perfect fixing with magazine dual clamp unit Various feeding pitch 1~4 steps (10m/m, 20m/m, 30m/m, 40m/m) Possible to line with various kinds…

Details

Liên hệ tư vấn

APPLICATION

INDUSTRIES

Electronics – Semiconductor

FUNCTION

Cắt bản mạch PCB ROUTER - PCB Depanelling

MATERIAL

Semi-conducting material

Metal

Plastic

PRODUCT DESCRIPTION

Features

Error message display and special ability key
Perfect fixing with magazine dual clamp unit
Various feeding pitch 1~4 steps (10m/m, 20m/m, 30m/m, 40m/m)
Possible to line with various kinds of machine
YL size double ball screw up down unit (patent application)
Convenient to change position of pusher cylinder
SMEMA INTERFACE

Contact Nam Sơn to receive a detailed quotation and consultation on the right laser solution for your business via hotline

Hotline: 0909961715

Option

Safe Cover-CE
Magazine change overtime (18 seconds)
Output buffer conveyor
Up/Down Solt Start/Stop (Inverter)
Touch screen
Possible to change magazine loading volume
Prevention function from PCB damage
Space saving type(90°)

Specification

Specification	Value
PCB Size	50×50 ~ 300×440
Capacity (Magazine)	120
Quanlity (Magazine)	Upper: 1; Lower: 2
PCB Feed Pitch	4 types; 10 ~ 40
PCB Input Height	900 +/-30
Air	5.0
Power Supply	100 ~ 240 VAC, 50~60Hz, (V, Hz option)
Weight	180
Dimension (L x W x H)	1490 x 840 x 1150
