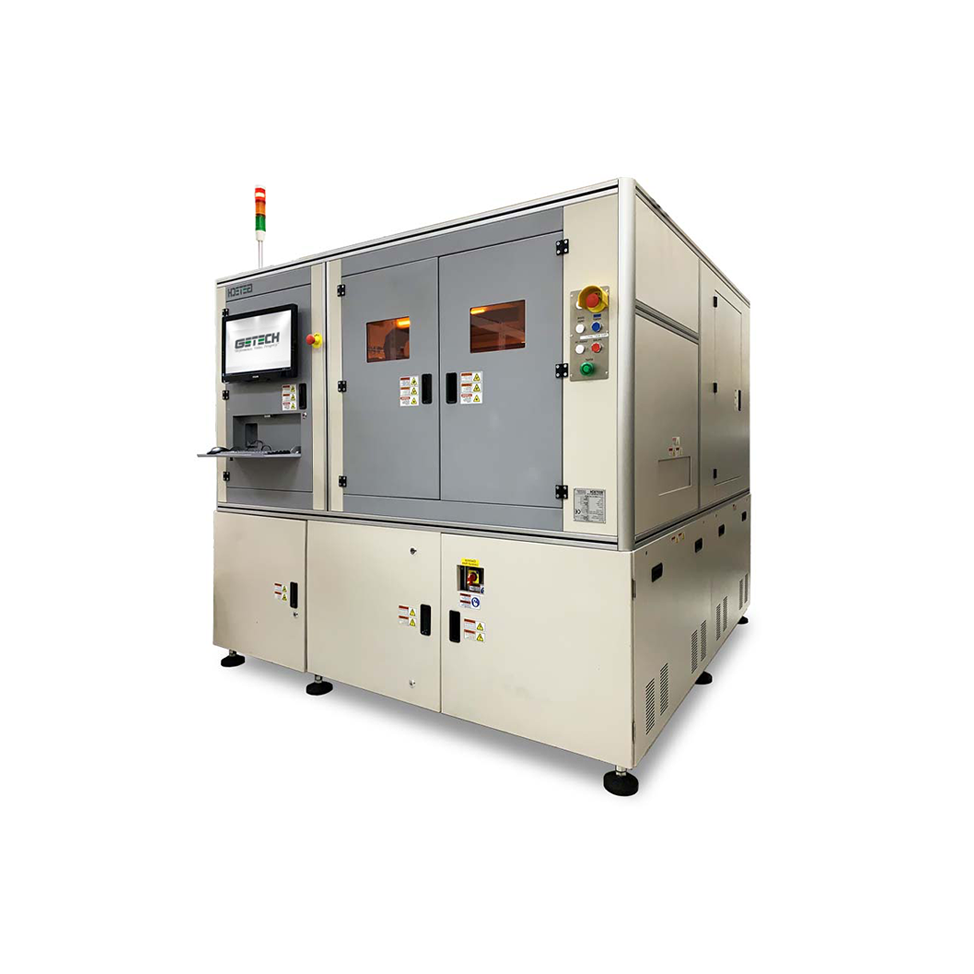

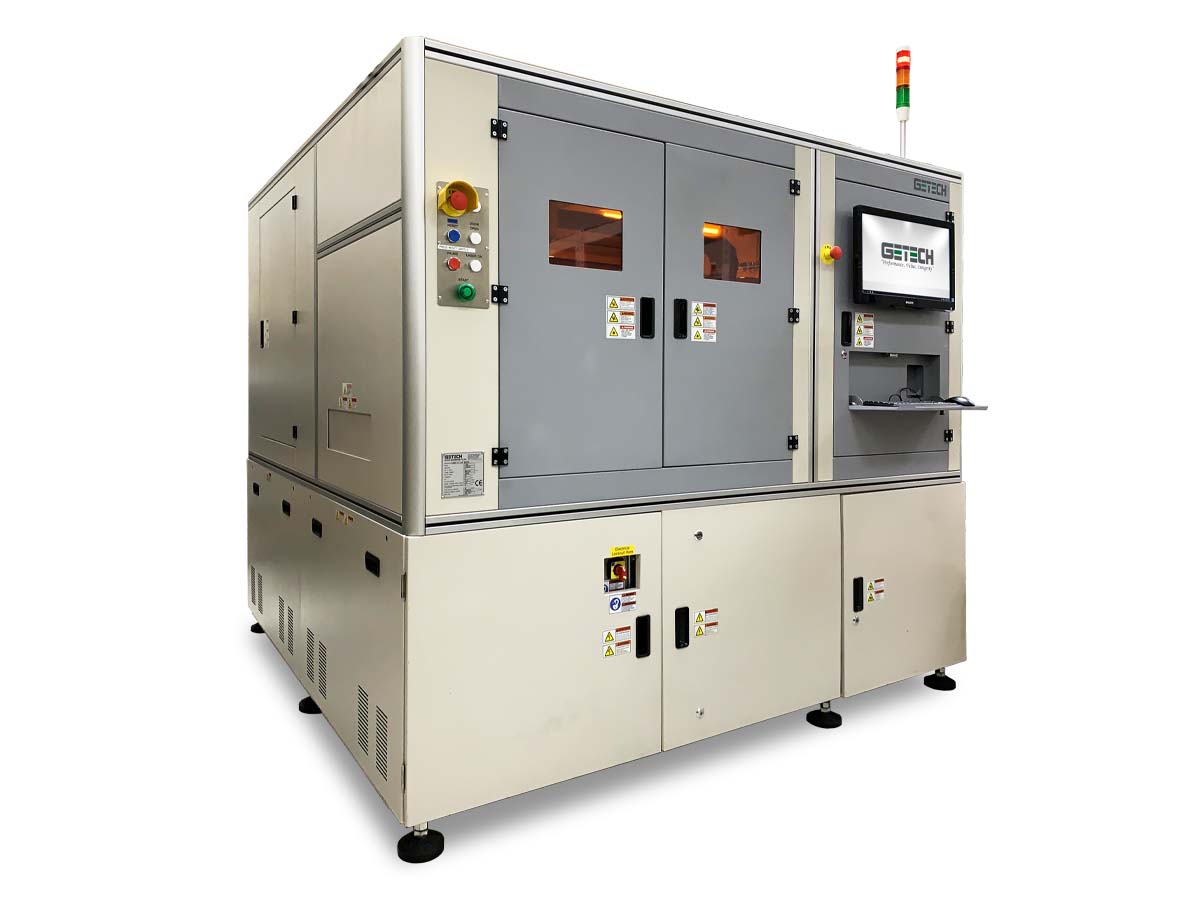

LIRM LASER INLINE ROUTING MACHINE

The detailed information

The LIRM is an inline scanning laser singulation machine specially designed to handle FR4/FR2 and flex-printed circuit board assemblies (PCBA) up to 0.8mm in thickness.

The LIRM operates two tables for simultaneous cutting and load/unload operations for maximum production effectiveness and flexibility. Parts handling is as simple as positioning on a flat vacuum platen or a simple alignment fixture reducing the expenses usually associated with tooling.

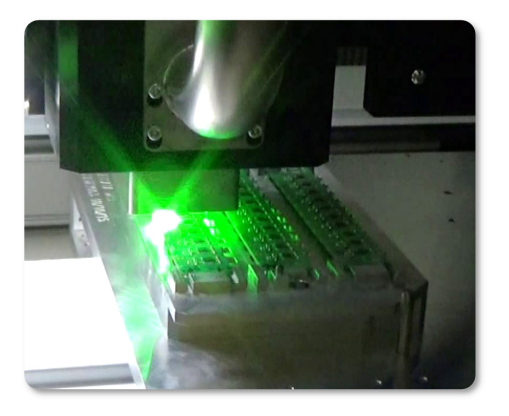

The LIRM employs a 532nm green laser source that delivers up to 40W at the workpiece. The green wavelength is well-absorbed by PCB materials, enabling cuts with minimum thermal discoloration. It is fully protected with a shielded work area meeting Class 1 Laser safety standards.

The detailed information

– Dual – stations shuttle tables
– In-line Automation ready
– Short pulse green laser
– Versatile visual programming system (move, teach, cut)
– Parallel processing (depaneling and handling)
– Vacuum suction pick – and – place
– High – resolution camera
– Programmable Z – height
– Smema connectivity
– CE Certification

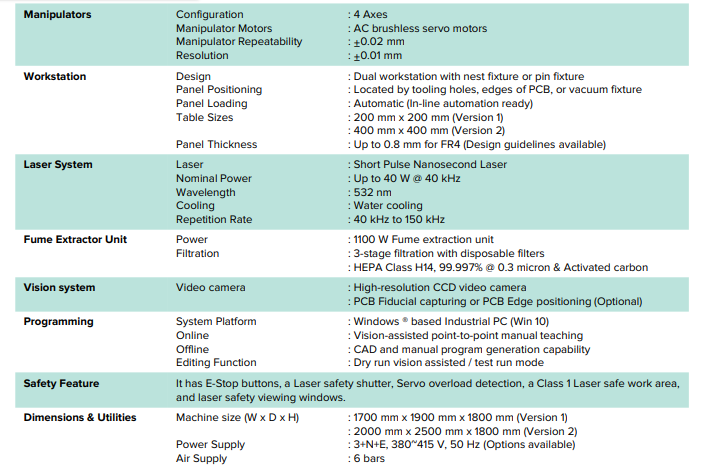

Technical specifications
