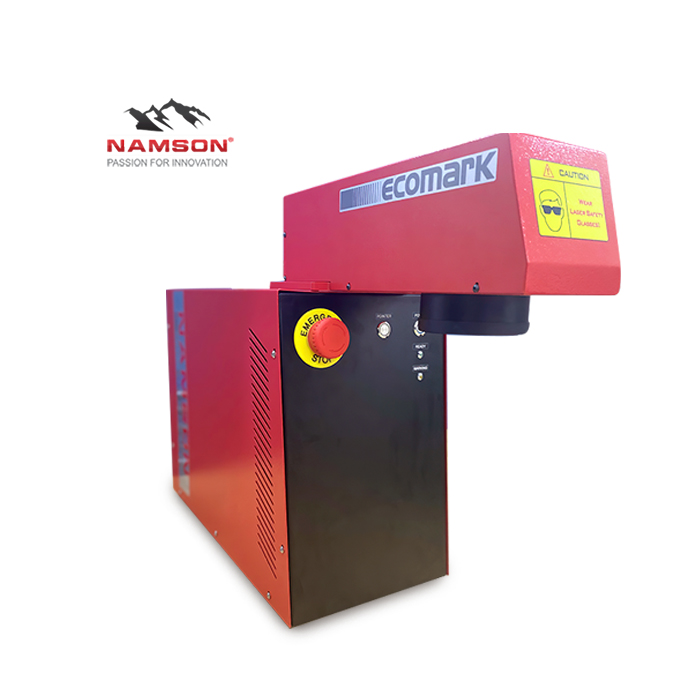

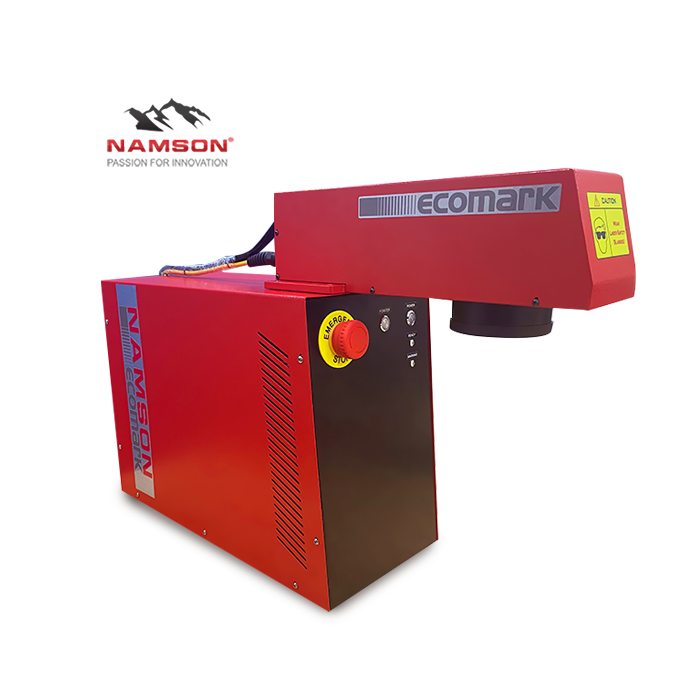

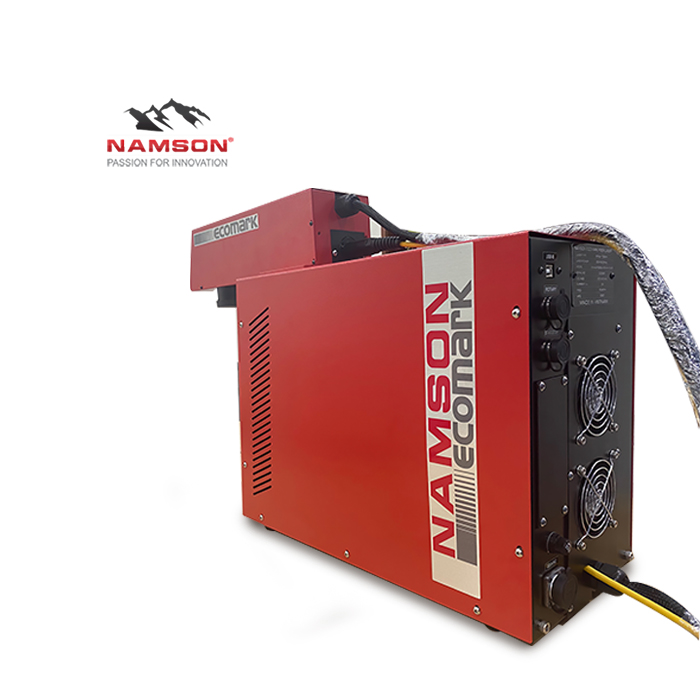

NAMSON ECOMARK MOPA LASER MARKING MACHINE
Namson EcoMARK MOPA fiber laser marking machine – New simpler and more powerful MOPA fiber laser technology.
Details
- MOPA laser with higher beam quality and stability compared with tradditional Q-Switch fiber laser
- Laser power ranges from 20W – 100W with low power drop at high frequency level.
- Compact footprint, desktop type for easy operation.
- User friendly software
- Laser optics, controller are equipped with high quality class components working effectively without requirement for complicated maintenance and thus minimizes the operation cost
APPLICATION
INDUSTRIES
FUNCTION
MATERIAL
PRODUCT DESCRIPTION
PRODUCT INTRODUCTION
Namson EcoMARK MOPA fiber laser marking machine – New simpler and more powerful MOPA fiber laser technology adapts mostly for low to mid-volume manufacturing demand for the application and industries: laser marking, laser coding, barcode marking, nameplate marking, jewelry, mechanism, etc.
Namson EcoMARK F-series: Effective and economical laser marking solution for low to mid-volume manufacturing demand for the application and industries: laser marking, laser coding, barcode marking, nameplate marking, jewelry, consuming product marking, mechanism, etc.
Contact Nam Sơn to receive a detailed quotation and consultation on the right laser solution for your business via hotline
SPECIFICATION
| Laser Type | Fiber | ||
| Wavelength | 1064 nm | ||
| Operating Principle | Pulsed | ||
| Power | 20W | ||
| Frequency | 30-80 kHz | ||
| Beam Quality | M2 < 1.3 | ||
| Pulse width | 200 ns | ||
| Pulse Energy | 0.66 mJ | ||
| Pilot light | 5mW | ||
| Safety Class | Class IV | ||
| Scan head | Marking Speed: 2m/s | ||
| Positioning Speed: 7.0 m/s | |||
| Marking Area | 70 x 70 mm | 100 x 100 mm | 175 x 175 mm |
| Beam Diameter | 55µm | 88µm | |
| Cable length | 2m | ||
| PC recommendation | Intel Core 2 Duo ≥ 2GHz; HĐH: WinXP, Win7, Win8 (32-64bit) | ||
| Ram: 2GB; Interface: USB | |||
| Cooling | Air | ||
| Power Supply | 220VAC-50Hz | ||
| Power Consumption | <200W | ||
| Operation Condition | Temperature: 150C – 350C; Humidity: 30% – 85%, non-condense | ||
| Dimensions (DxRxC) | 595mm x 210mm x 446mm | ||
| Weight | 20Kg | ||
SALIENT FEATURES
- MOPA laser with higher beam quality and stability compared with traditional Q-Switch fiber laser
- Laser power ranges from 20W – 100W with low power drop at high frequency level.
- Compact footprint, desktop type for easy operation.
- User friendly software
- Laser optics, controller are equipped with high quality class components working effectively without requirement for complicated maintenance and thus minimizes the operation cost
APPLICATIONS
|
The machines use for
|
To :
|
The Materials such as:
|
FACILITY REQUIREMENTS
- PowerRotary Rotation module for round marking
- XY-Stage CNC module
- Close workstation cabinet
- Motorized Z axis
- Vision camera for auto-positioning & auto-alignment
CATALOGUE
| Documentation Name | View |
| NAMSON ecoMARK MOPA LASER MARKING MACHINE | CATALOG REQUEST |
