IRLD DEPANELLER INLINE ROTARY LASER

The detailed information

IRLD is an inline laser depaneling machine designed to depanel or singulate rigid and semi-flexible PCBs with high precision and repeatability. It is suitable for handling densely populated printed circuit board assemblies (PCBA) in automatic production assembly lines.

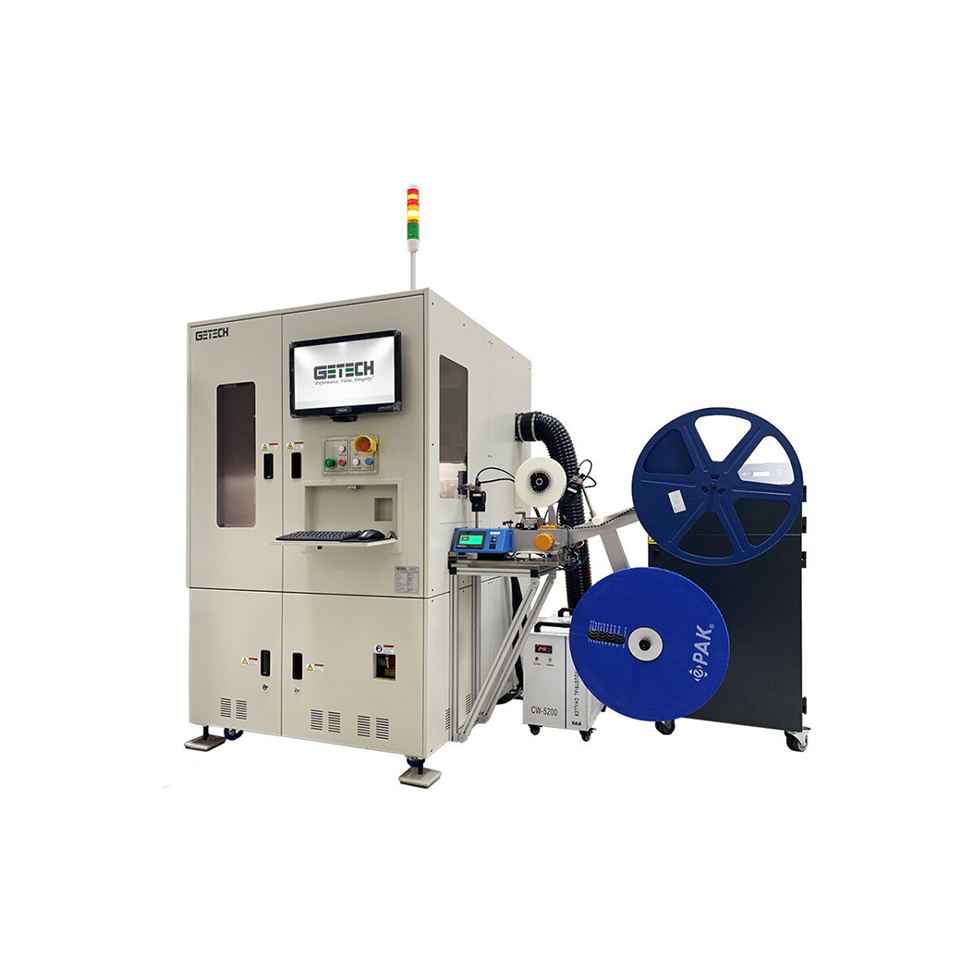

The system consists of up to 4 high-speed vacuum suction nozzle tips for very low dwell time pick-and-place operations to boost productivity. The machine also supports barcodes and 2D codes verification of incoming boards before depaneling and sorting outgoing boards before releasing them to downstream processes or straight to tape-and-reel packaging.

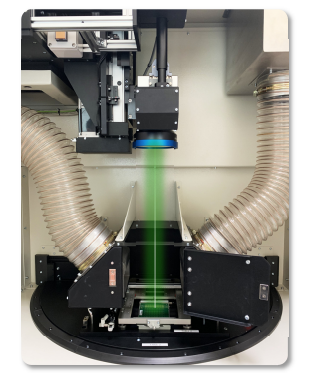

The IRLD comes with either a short-pulsed green laser for high-quality cuts with almost no carbonization or an ultra-short-pulsed picosecond laser that produces virtually char-free cut edges.

Advantages of the product

• Dual – stations shuttle tables
• In-line Automation ready
• 40W green laser or 100W us laser
• Versatile visual programming system (move, teach, cut)
• Parallel processing (depaneling and handling)
• Up to 4 vacuum suction pick – and – place tips
• High – resolution camera
• Programmable Z – height
• Smema connectivity
• CE Certification (option)

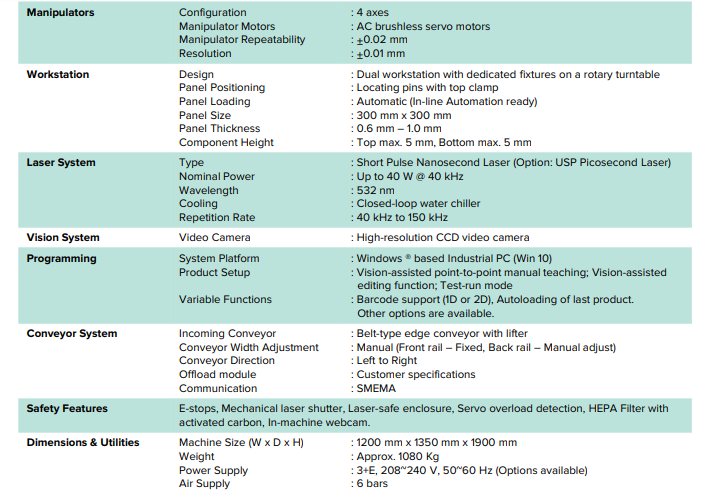

Technical specifications

Video
