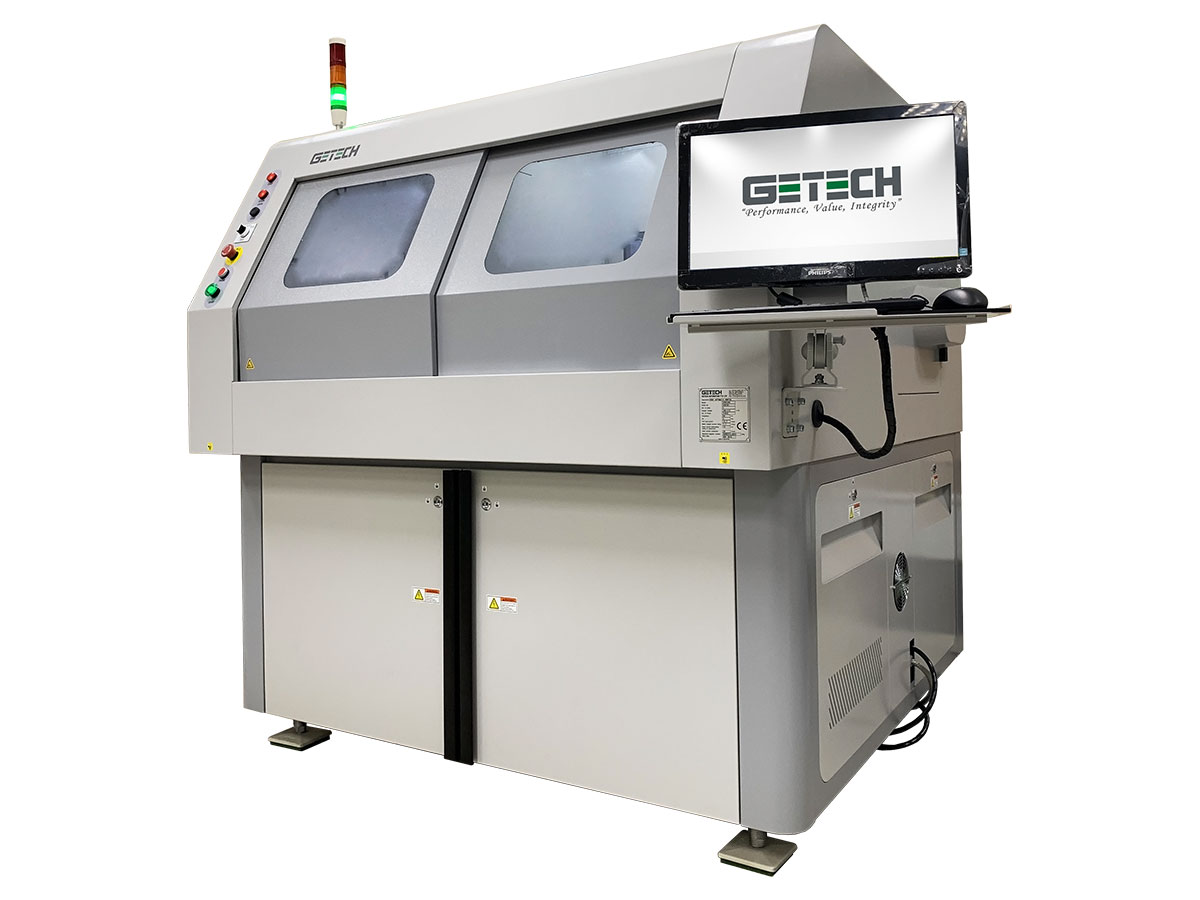

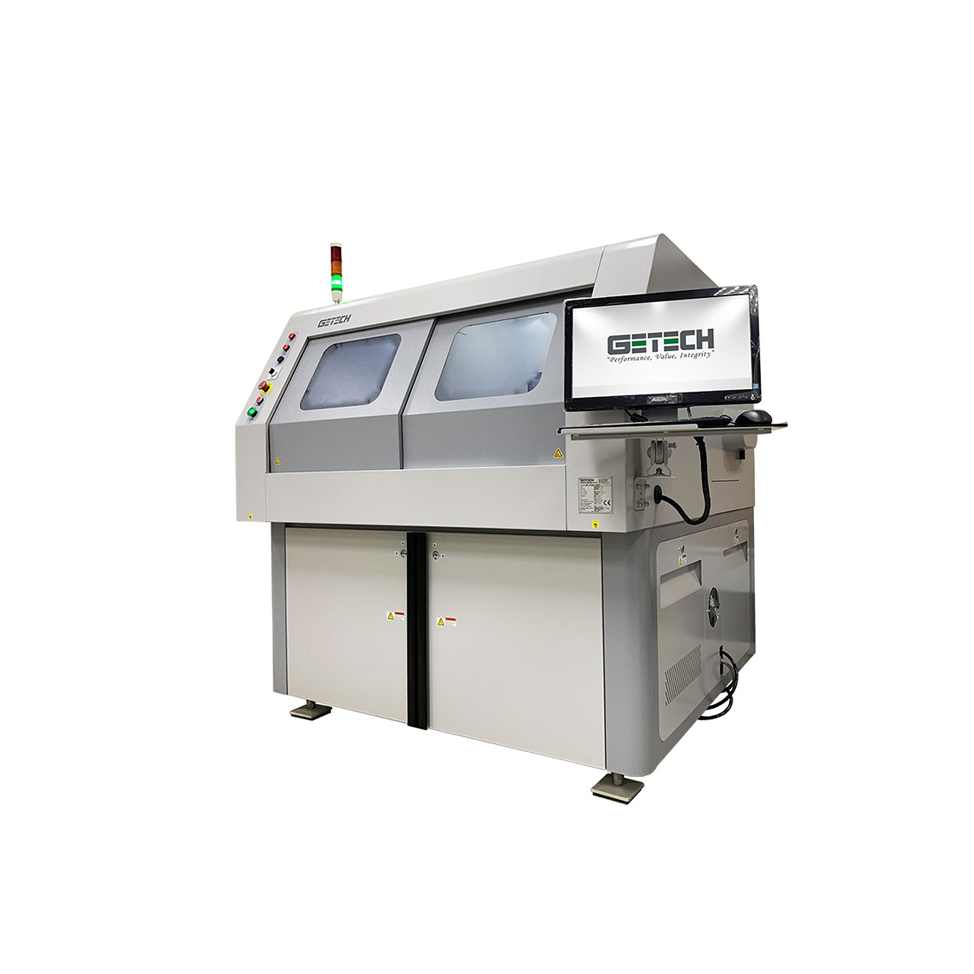

GSR2280 SEMI-AUTO ROUTER MACHINE

The detailed information

The GSR2280 is a standalone router machine specially designed to route (depanelize) large panels with PCB sizes up to 550 mm x 585 mm into individual units. It is capable of speeds of up to 100 mm/s and positioning speeds of 1000 mm/s. It has two worktables that allow continuous routing with no stoppages during panel loading and unloading. The superior servo axis system provides a high acceleration/deceleration, reducing cycle time (increase in production output) and, at the same time, maintaining high accuracy cutting.

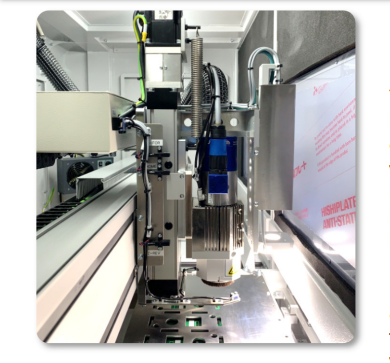

Using a high-resolution CCD camera and GSR user-friendly Windows-based software allows users to program the routing paths in minutes. There are also no limitations on the number of programs stored. GSR2280 uses high-quality components and a welded steel structure to ensure rigidity and high performance. All the axes and linear guides are protected from dust and dirt to increase lifespan and performance.

Advantages of the product

– Dualtable
– High – speed routing
– Manual loading/unloading
– High – resolution camera
– Rigid fixturing and easy replacement
– Universal/Dedicated Fixtures & Top Clamp lifter available
– Safety protection enclosure cabinet W/ internal partition
– High accuracy & quality cut
– Powerful vacuum system
– Automatic sliding doors
– CE Certification

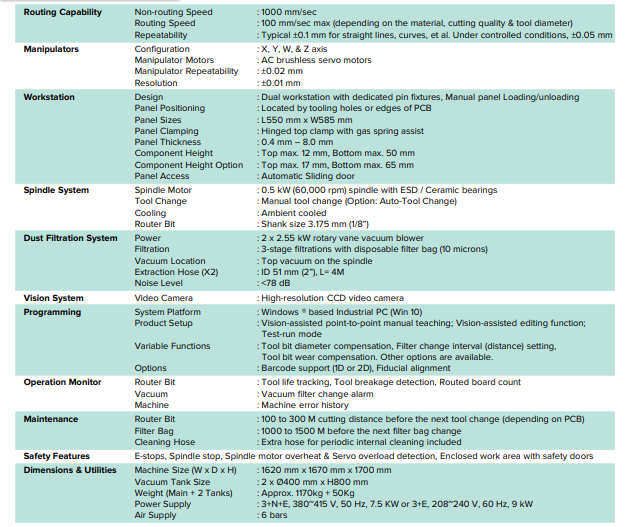

Technical specifications

Video
