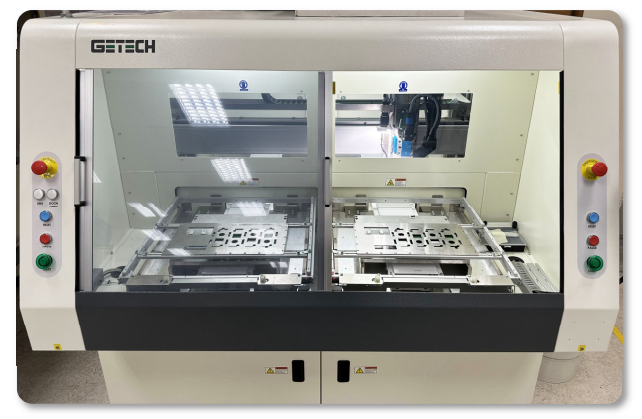

GSR1280 SEMI-AUTO ROUTER MACHINE

The detailed information

The GSR1280 is a standalone router machine specially designed to route (de-panelize)large panels with PCB size of 500mm x 500mm into individual units. It is capable of speeds of up to 100mm/s and positioning speeds of 1000mm/s. It has two worktables that allows continuous routing with no stoppages during panel loading and unloading. The superior servo axis system provides high acceleration/deceleration, reducing cycle time (increase in production output) and at the same time maintaining high accuracy cutting.

Using a high-resolution CCD camera, and GSR user-friendly Windows-based software allows the user to program the routing paths in minutes. There are also no limitations in the number of programs stored. GSR1280 uses high-quality components and a welded steel structure to ensure rigidity and high performance. All the axes and linear guides used are protected from dust and dirt to increase lifespan and performance.

Advantages of the product

– Dualtable
– High – speed routing
– Manual loading/unloading
– High – resolution camera
– Rigid fixturing and easy replacement
– Universal/Dedicated Fixtures & Top Clamp lifter available
– Safety protection enclosure cabinet W/ internal partition
– High accuracy & quality cut
– Powerful vacuum system
– Automatic sliding doors
– CE Certification

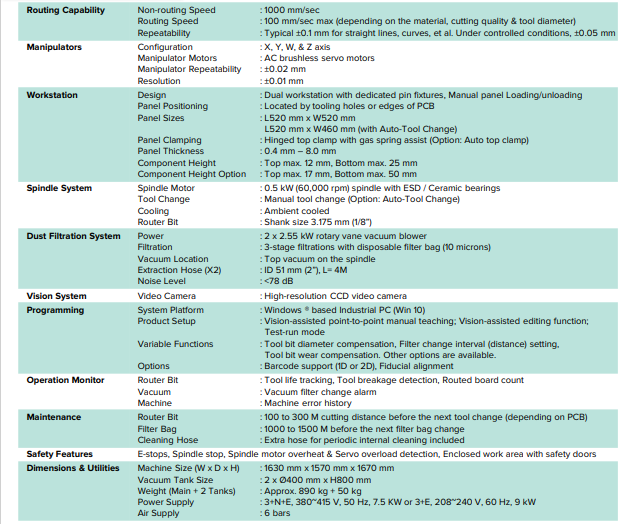

Technical specifications

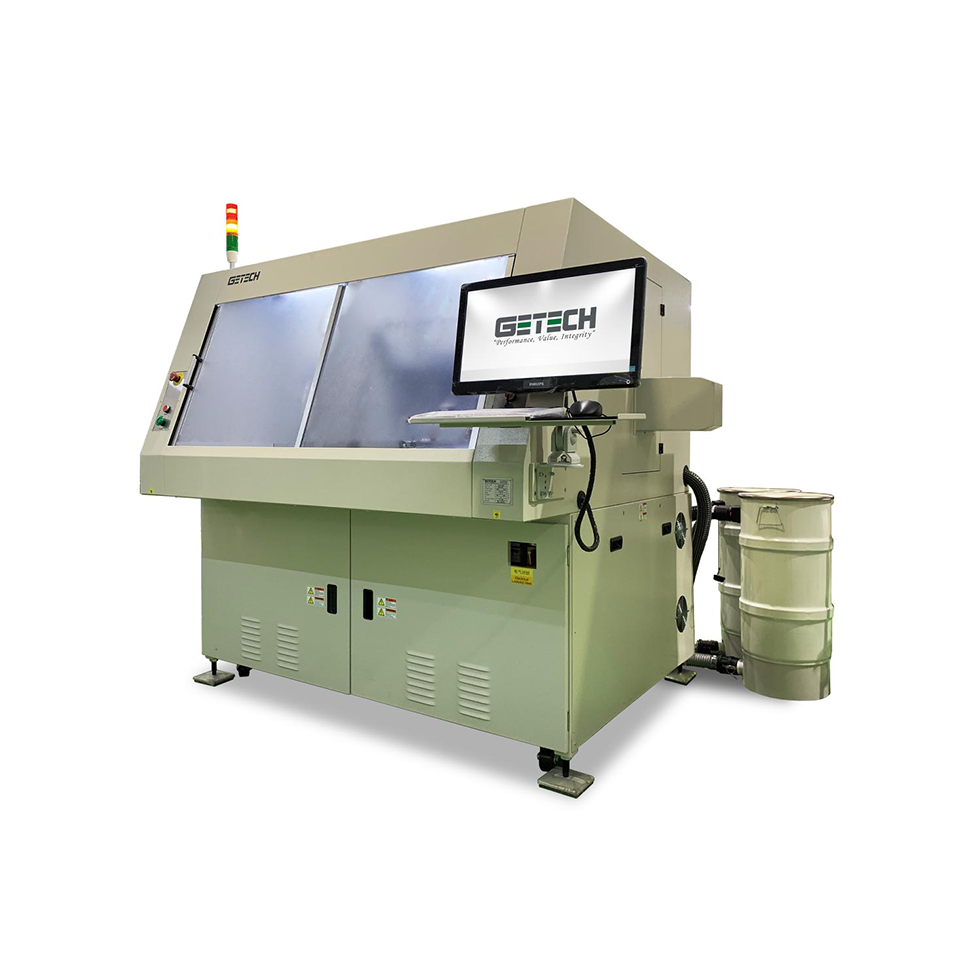

Video
