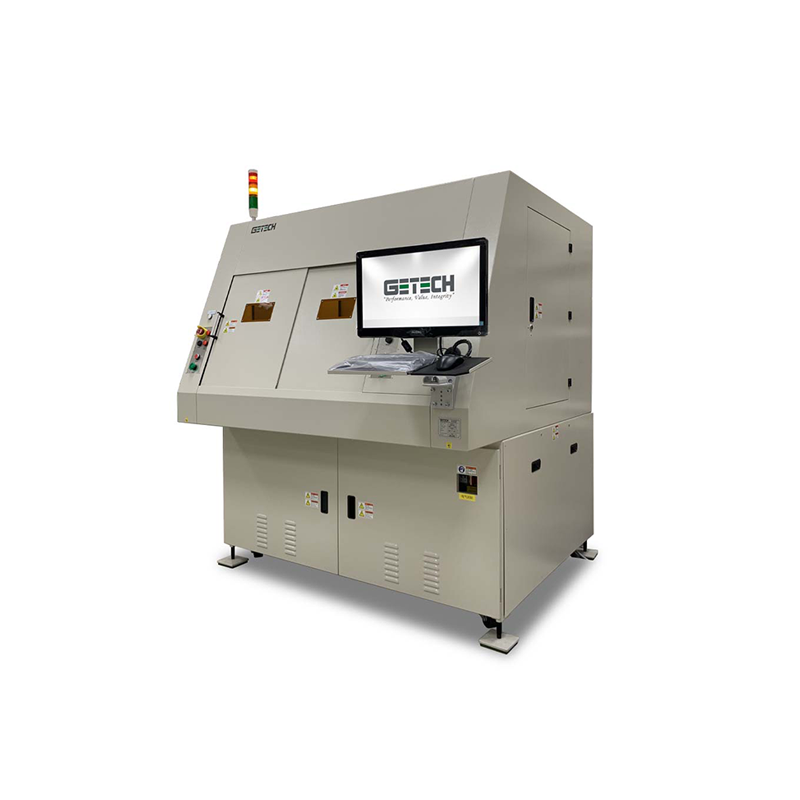

GLSS GETECH LASER SINGULATION SYSTEM

The detailed information

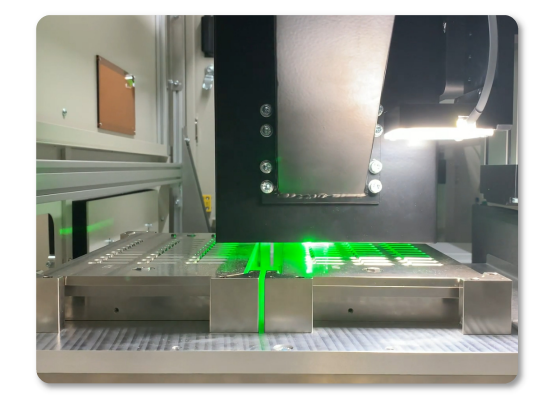

The GLSS is a standalone Laser singulation machine specially designed to handle ultra-thin and flexible printed circuit board assemblies (PCBA) up to 0.8mm in thickness. The GLSS operates with two worktables for simultaneous cutting and load/unload operations for maximum production effectiveness and flexibility. Parts handling is as simple as positioning on a flat vacuum platen or a simple alignment fixture, making the expenses usually associated with tooling less. The GLSS employs a 532nm green laser source that delivers up to 40W at the workpiece. The green wavelength is well-suited to PCB materials enabling clean cuts.

Advantages of the product

– Dual table
– Manual loading/unloading
– Short pulse green laser
– Versatile visual programming system (move, teach, cut)
– Parallel processing (depaneling and handling)
– Safety protection enclosure cabinet W/ internal partition
– High – resolution camera
– Programmable Z – height
– High Accuracy & Quality cut
– CE Certification (option)

Technical specifications
