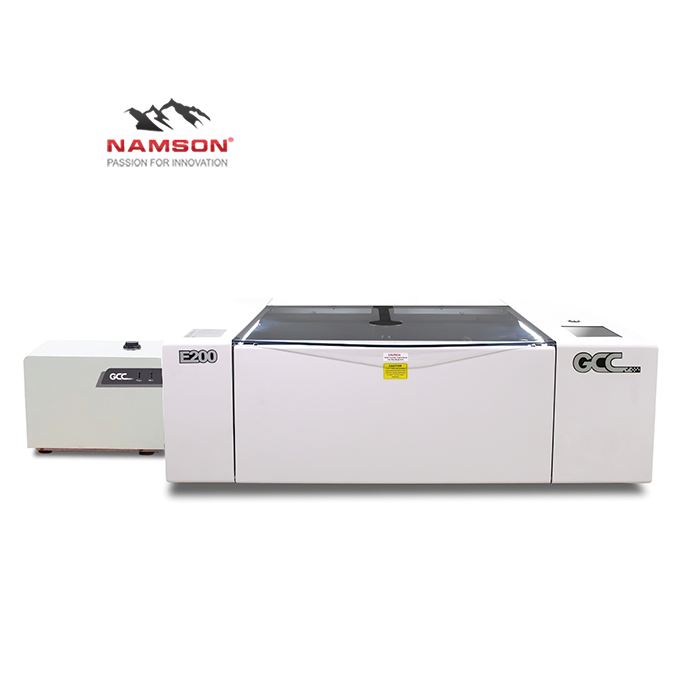

GCC E200 DESKTOP LASER ENGRAVER

E200 desktop laser engraver have many advantages that is appropriate in Industry.

Details

Standard water chiller for long-time working
Percect quality of the Engraving and Cutting Jobs
7″ Large and Touch panel
Can be simple, also can be proffessional
Live camera review

Liên hệ tư vấn

APPLICATION

INDUSTRIES

Leather - Shoe - Garment

Watch - Gift

FUNCTION

Laser cutting / laser micro cutting

Laser engraving

Laser marking / laser coding

MATERIAL

Acrylic, Crystal, Paper

Glass

Wood

PRODUCT DESCRIPTION

PRODUCT INTRODUCTION

E200 is GCC latest LaserPro professional-grade laser engraving machined, containing advanced functions with user-friendly design and excellent artwork presented.

E200 desktop laser engraver have many advantages that is appropriate in Industry. E200 provides an easy operating workflow and is able to complete different processing procedures quickly. Most importantly, E200 contains various advanced functions with stable quality, and excellent safety features.

Contact Nam Sơn to receive a detailed quotation and consultation on the right laser solution for your business via hotline

Hotline: 0909961715

FEATURES

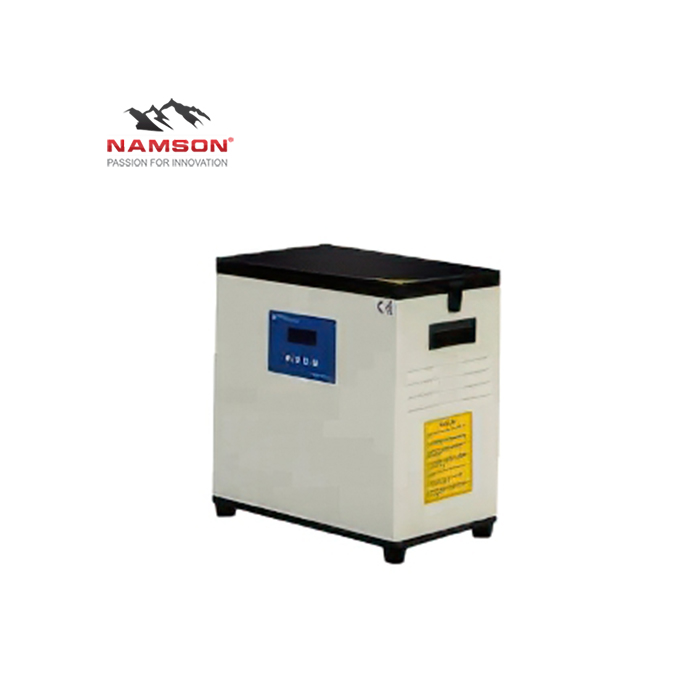

	External Water Chiller The water chiller be able to work all day long. Including a water sensor to ensure the operation safety. Easy to refill water and maintain.
	Percect quality of the Engraving and Cutting Jobs: GCC Qualified Engraving and Cutting job beyond other desktop laser engravers.
	Can be simple, also can be proffessional: Versatile users interface to suite both the beginner and advanced users.
	7″ Large and Touch panel: Colorful intuitive 7″ touchscreen interface, E200 desktop laser engraving bring your inspiration to life.
	Live camera review: On board cameras show you a preview of your design. press “capture”button on SmartJOB, positioning is simple and easy
	High Speed Throughput to Bring you Unlimited: 20 IPS processing speed with DC Servo motor to boost productivity while maintain precision.
	Quick Boot Button Quick boot button on the top of the machine can provides users quick to turn on/off the machine with convenience.
	SMARTbox The sliding drawer facilitates the cleaning of E200, making it easy to remove its fallen debris. Simply pull out the drawer for cleaning and slide it back in place after cleaning

SPECIFICATIONS

E200	CO2 40W
Working Area	510 x 330mm
Max. Part Size (W x L x H)	525 x 340 x 20mm (with grid cutting table)
Max. Part Size (W x L x H)	493 x 341 x 95mm (remove grid cutting table)
Max. Working Speed	20 IPS
CCD Camera	Standard
Working Table	Standard grid cutting table
Driver	DC servo motor
Focal Lens	Standard 1.5”
Max. Cutting Thickness	10mm
Control Panel	7” touch screen
Connection	Wi-Fi, USB, Ethernet
Dimensions (W x L x H)	915 x 780 x 300mm

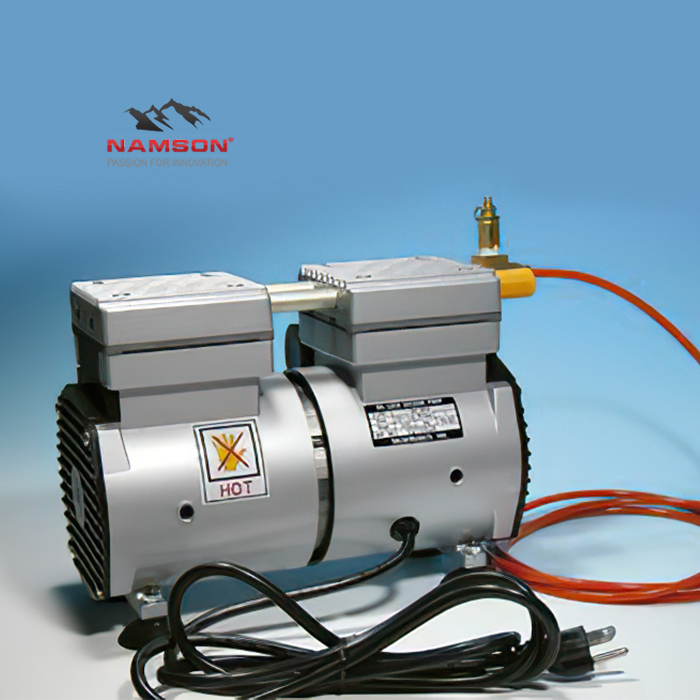

Optional	Rotary attachment, odor reduction, air compressor
Air Exhaust System	External exhaust system with minimum flow rate 300 m3/h (10594 ft3/h) is required,2,500PA negative pressure (PURE-AIR PA-300 @ 4″ exhaust port)

*Speed is not equal throughput. See dealer or visit http://www.gccworld.com for more details.
Specifications are subject to change without prior notice.
*The flow rate is determined by a default fume extraction system; the flow rate may vary due to a different fume extraction system.

SALIENT FEATURES

Quality of the engraving and cutting beyond other competitors
External water chiller can work for 8 hours guaranteed.
The world’s first desktop laser engraver to use a closed loop servo motor. Quiet, stable, fast, and precise.
LaserPro print driver is included. User friendly , powerful, and professional.
SmartJOB is designed for beginner/students. It’s easy to use and compatible for Windows and MAC.
7” touch screen. Users can easy to set and troubleshoot on the machine.
Special materials with a barcode, software will set the parameter automatically.

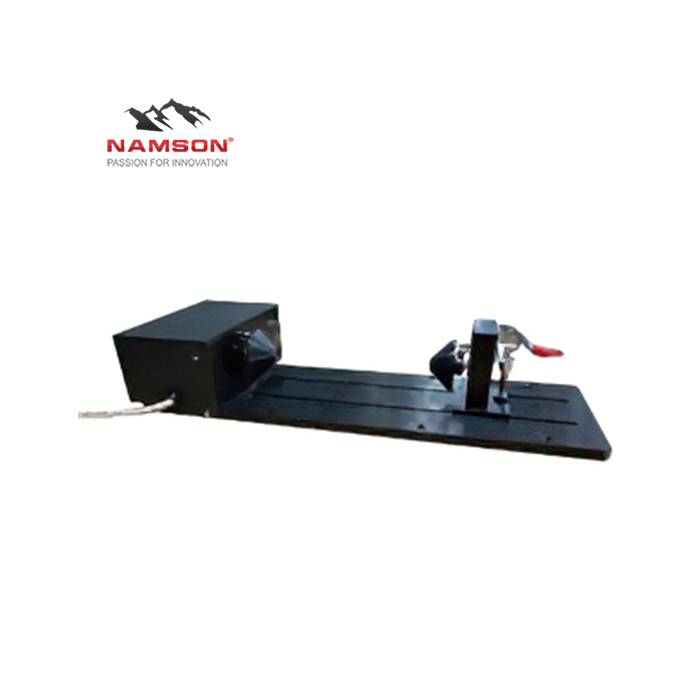

First model with such size comes with Rotary attachment optional item.

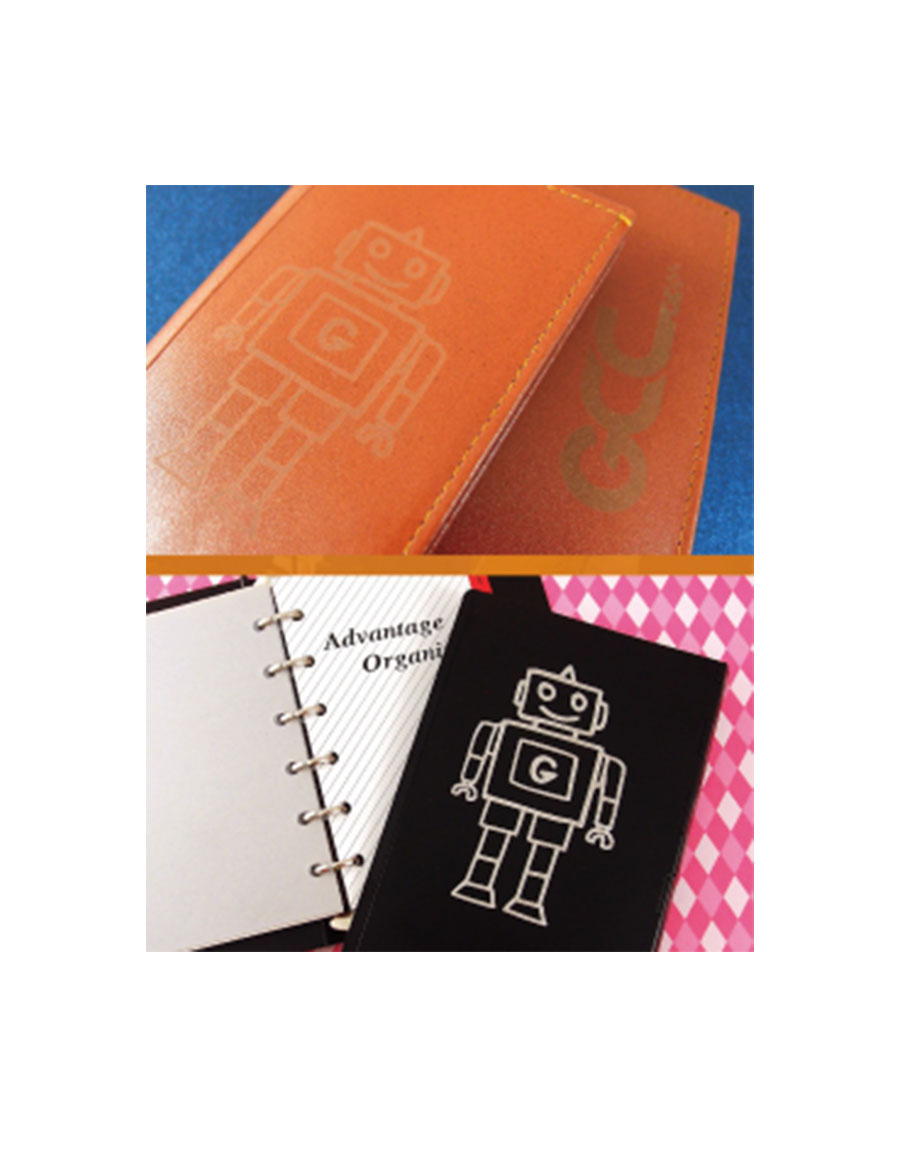

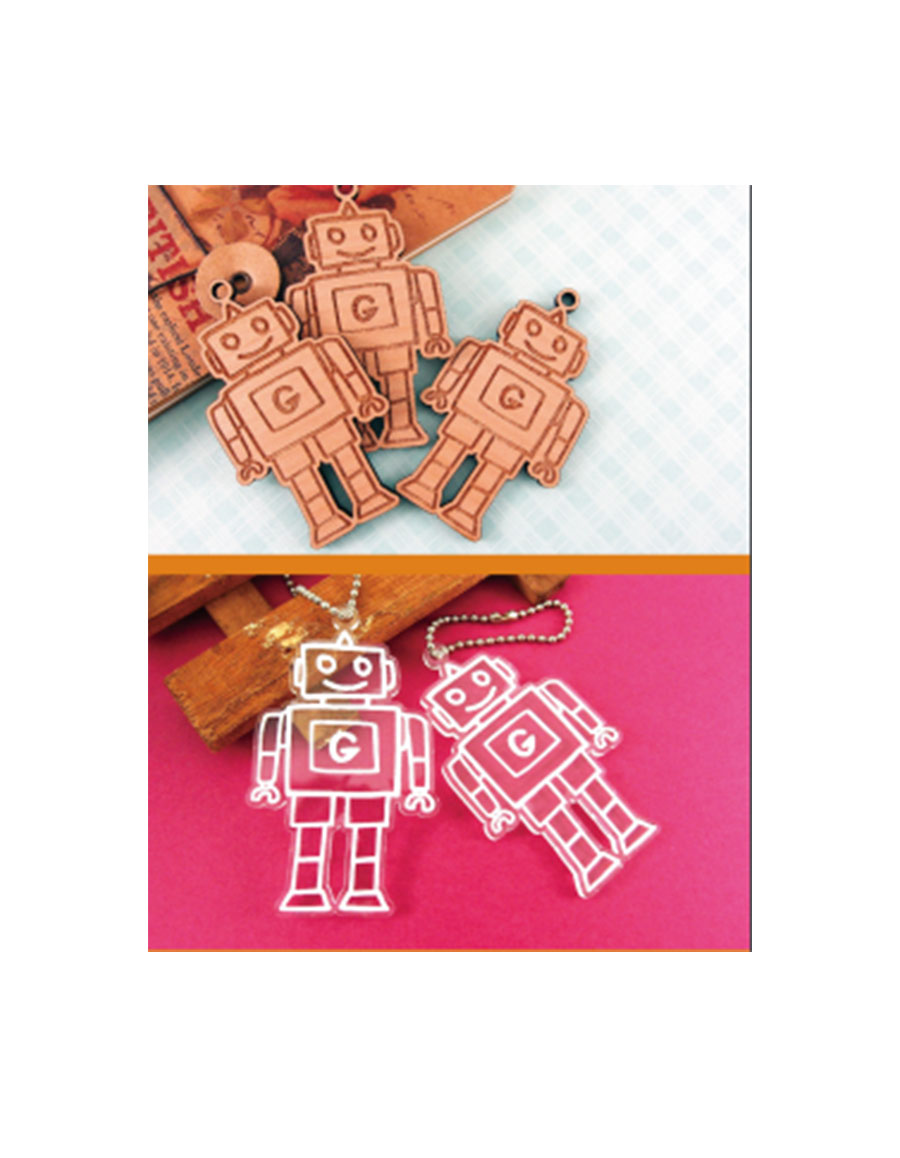

APPLICATIONS

DIY (Print) shop
Hobby (Home) users.
Education Market for STEM
Personalization
FabLab & Maker
Gift / Promotion Items
Prototyping industries

FUNTIONS

Laser marking
Laser cutting
Laser engraving

Non-metal materials: Wood, paper, mica, shells, glass, ivory…

CATALOGUE

Documentation Name	View
GCC E200 DESKTOP LASER ENGRAVER	CATALOG REQUEST
