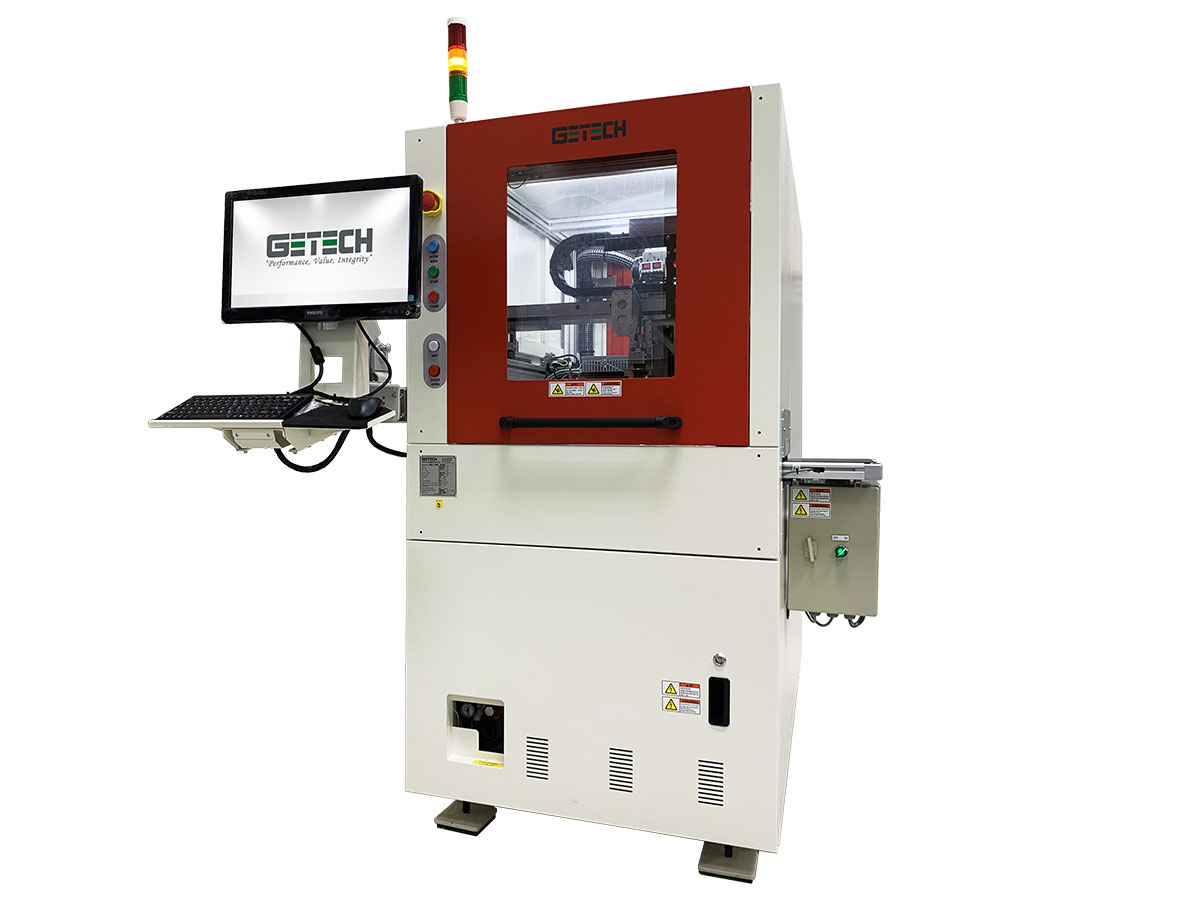

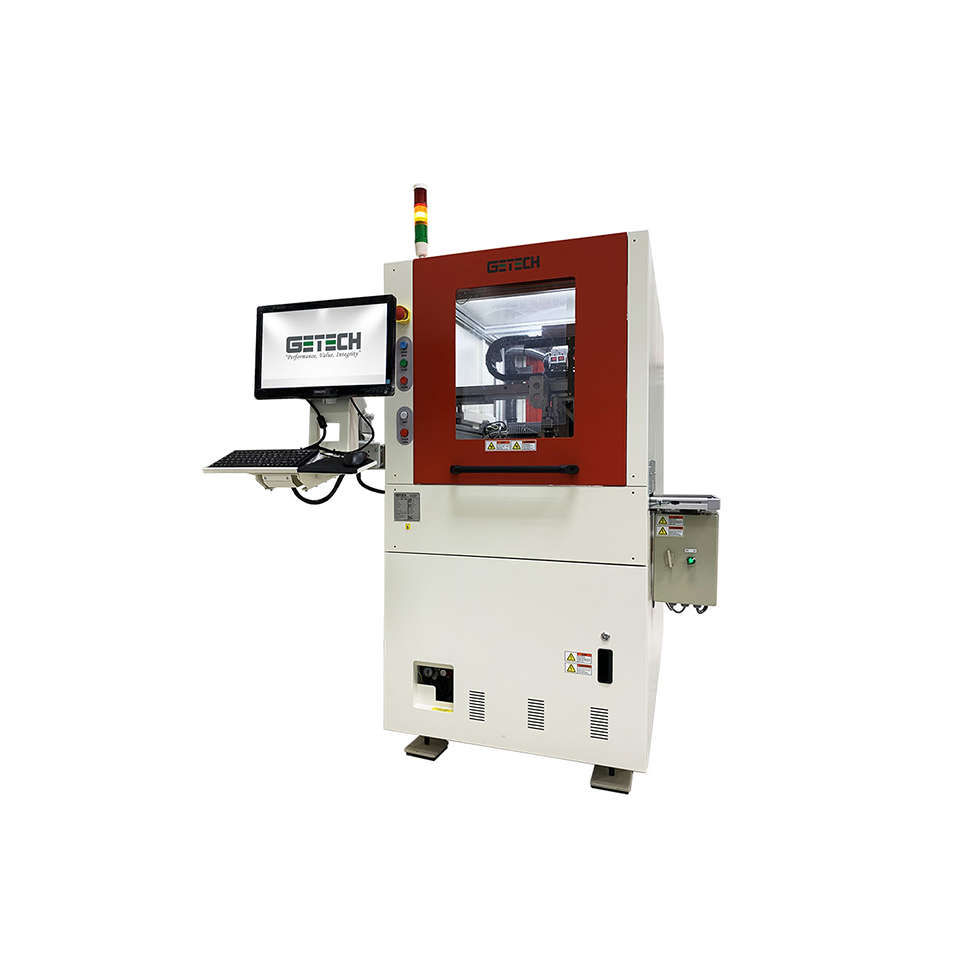

SPR SMALL PANEL ROUTER

The detailed information

The SPR is an in-line router machine specially designed to route (depanelize) small panels with PCB size up to 190 mm x 190 mm into individual units. It is a fast, space-saving, and accurate machine designed for high volume production with minimal operator participation. It has two worktables. While one of the worktables is in high-speed routing operation, the other worktable works with the robotic P&P module to unload boards and load the new PCB panel. This gives us 100% operational uptime without the issue of load/unload time.

Using a high-resolution CCD camera and SPR user-friendly Windowsbased software allows users to program the routing paths in minutes. There are also no limitations in the number of programs stored. SPR uses high-quality components and a welded steel structure to ensure rigidity and high performance. All the axes and linear guides used are protected from dust and dirt to increase lifespan and performance.

Advantages of the product

– Dual table
– Space – saving length 890mm
– High Accuracy & Quality cut
– High – speed routing & throught
– Ready for in-line automation
– High – resolution camera
– Automatic tool change
– Safe protection

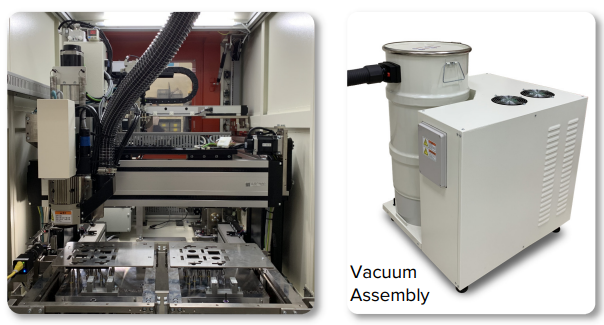

– Powerful vacuum system
– User – friendly software

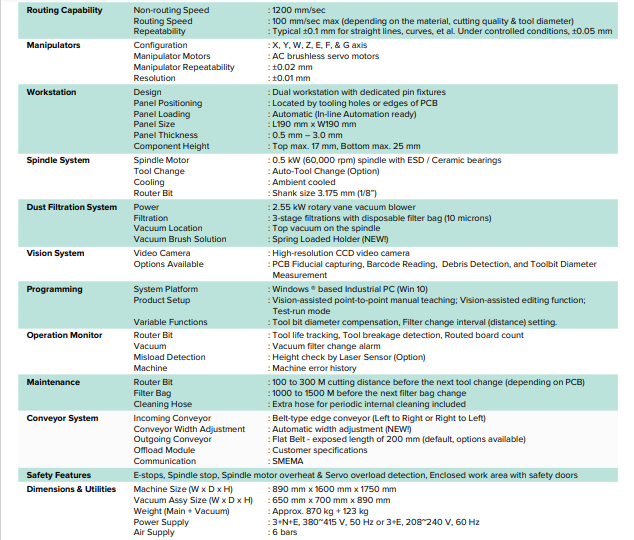

Advantages of the product

Video
