GAR1200L ROUTER – L GETECH AUTOMATIC

The detailed information

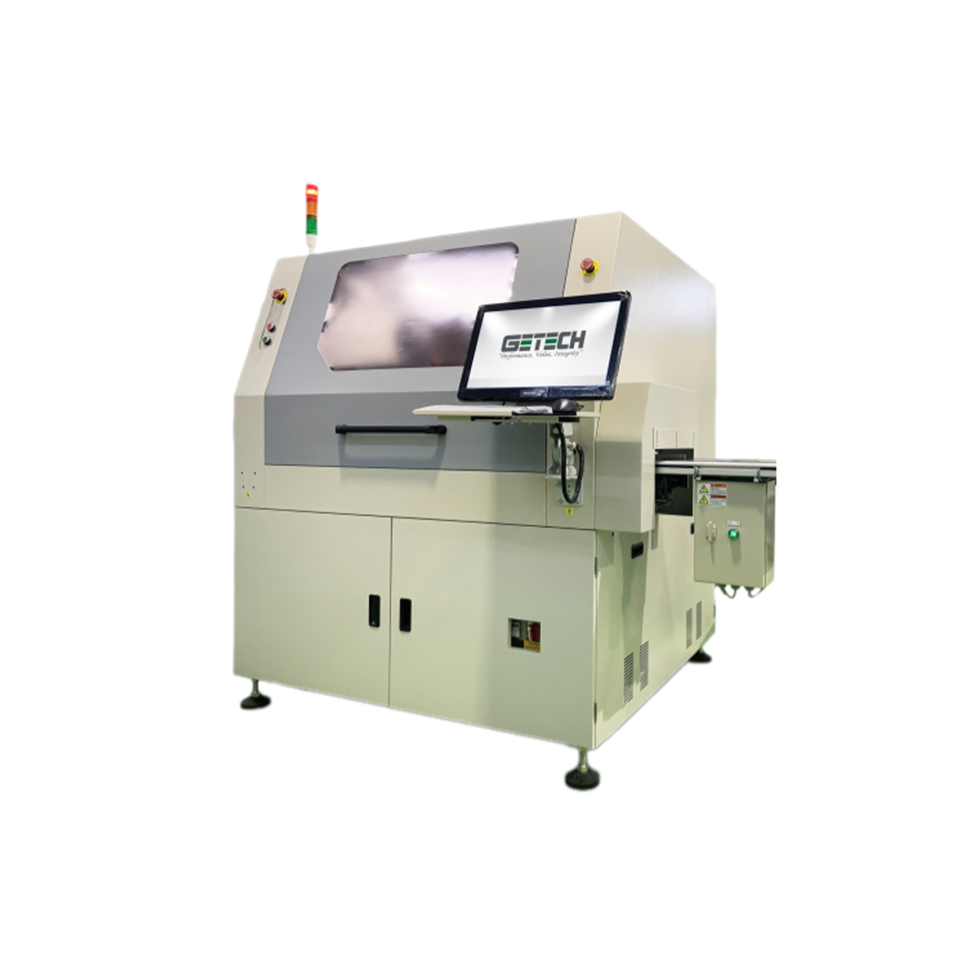

The GAR1200L is an in-line router machine specially designed to route (depanelize) large panels with PCB sizes up to 450 mm x 310 mm into individual units. It is a fast, space-saving, and accurate machine designed for high-volume production with minimal operator participation. The superior servo axis system provides a high acceleration/deceleration, reducing cycle time (increase in production output) and, at the same time, maintaining high accuracy cutting.

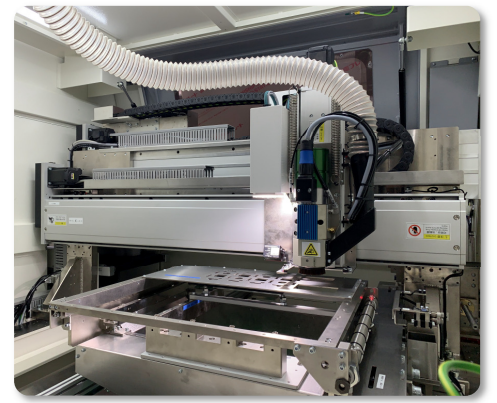

Using a high-resolution CCD camera and GAR user-friendly Windows-based software allows users to program the routing paths in minutes. There are also no limitations on the number of programs stored. GAR1200L uses high-quality components and a welded steel structure to ensure rigidity and high performance. All the axes and linear guides are protected from dust and dirt to increase lifespan and performance

Advantages of the product

– Single large table
– Small machine footprint
– High – speed routing & throught
– Ready for in-line automation
– High – resolution camera
– Automatic tool change
– Safe protection
– Powerful vacuum system
– User – friendly software
– CE Certification (Option)

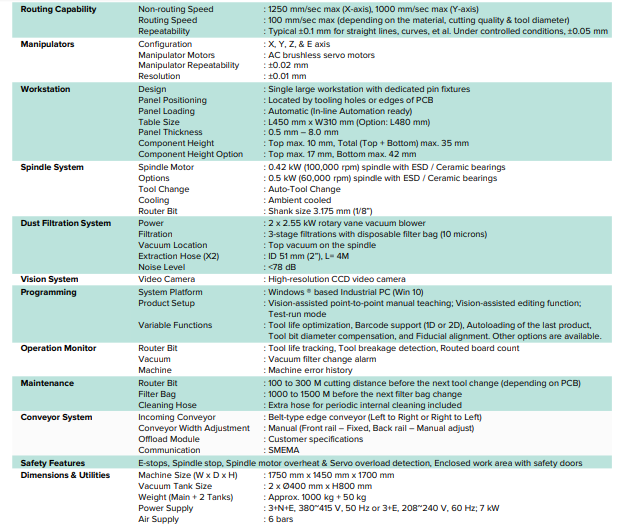

Technical specifications

Video
