FIBER LASER MARKING MACHINE TROLLY ADVANCE VERSION

INTRODUCTION

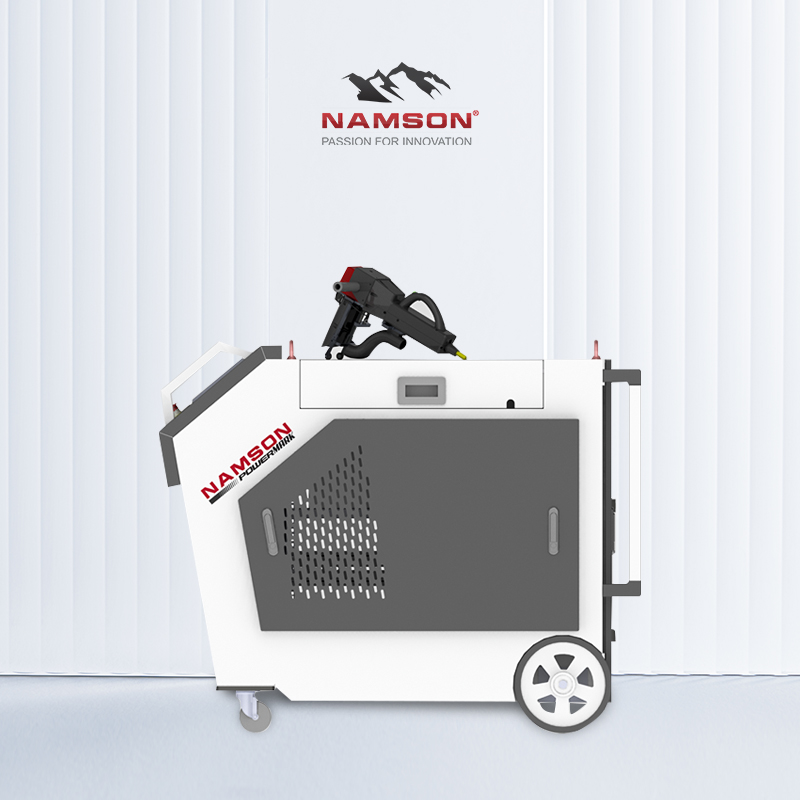

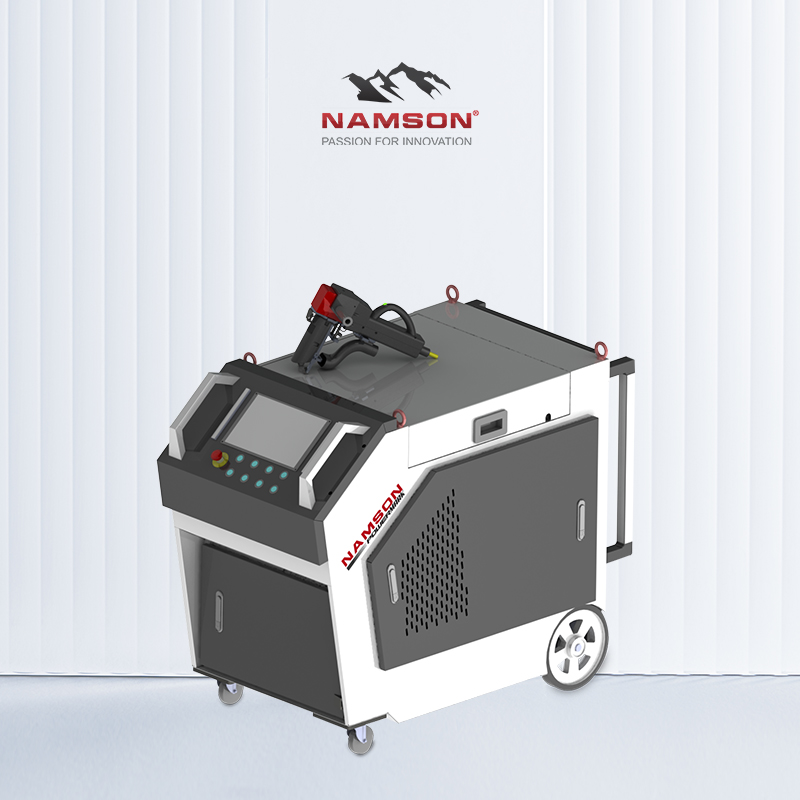

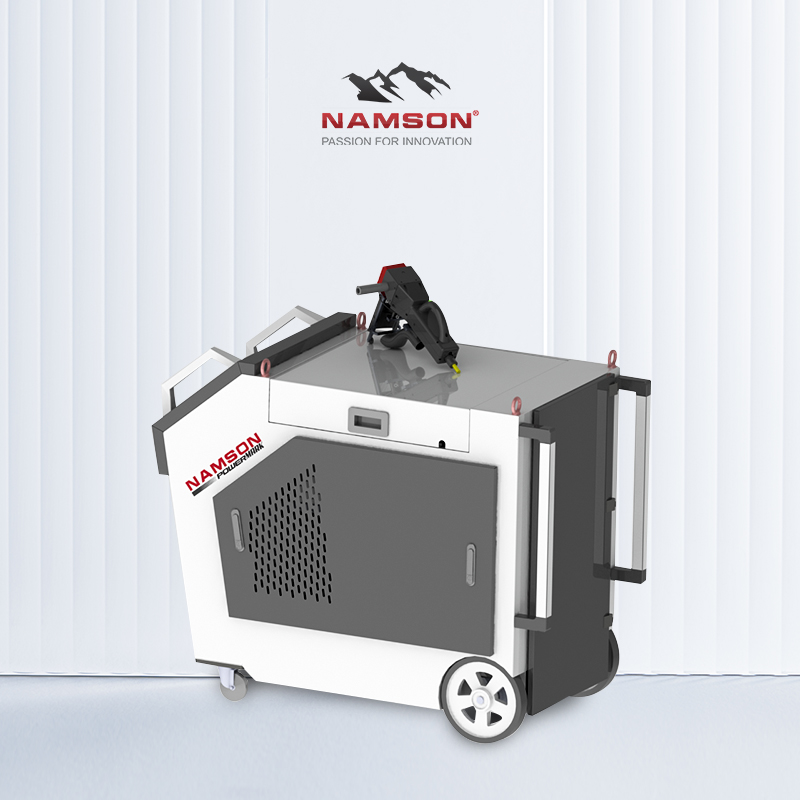

Fiber Laser Marking Machine Trolley Advance Version, which use advanced Fiber laser technology produced by Nam Son – the leading company in providing material laser equipment in Vietnam. Fiber Laser Marking Machine Trolley Advance Version is designed to be compact, flexible, and easy to apply for a variety of marking and cleaning needs.

Fiber Laser Marking Machine Trolley Advance Version – Technology innovation

Fiber laser source with diverse power

The PowerMARK Mobility Series use the latest technology Fiber laser source with a power output of up to 500W (20W – 500W options available), capable of marking almost any material, especially metal.

The engraving head has high stability

PowerMARK is developed with Scanlab (Germany) engraving head with high stability. Extremely fast marking speed: Postioning: 10.000 mm/s – Marking 2500mm/s .This helps to achieve the highest productivity in the shortest possible time.
There are many lenses for you to choose from (Defaut: 100mm – Optional: 70mm, 175mm), and the lenses can be easily removed for inspection and cleaning.

Infinitesimal diameter beam

With a wavelength of 1064nm, the Fiber laser source produces a beam with an extremely small focal diameter of about 27um – 69um, which increases the processing density by 100 times compared with a CO2 laser with the same power.

High durability

With life expectancy over 100,000 hours, you can save money and maintenance time.

Automotive industry applications

SALIENT FEATURES

• Fiber laser, the light path is closed and stable.
• High durability, life expectancy over 100,000 hours.
• Environmental protection and energy saving.
• Integrated power source from 20 – 500W

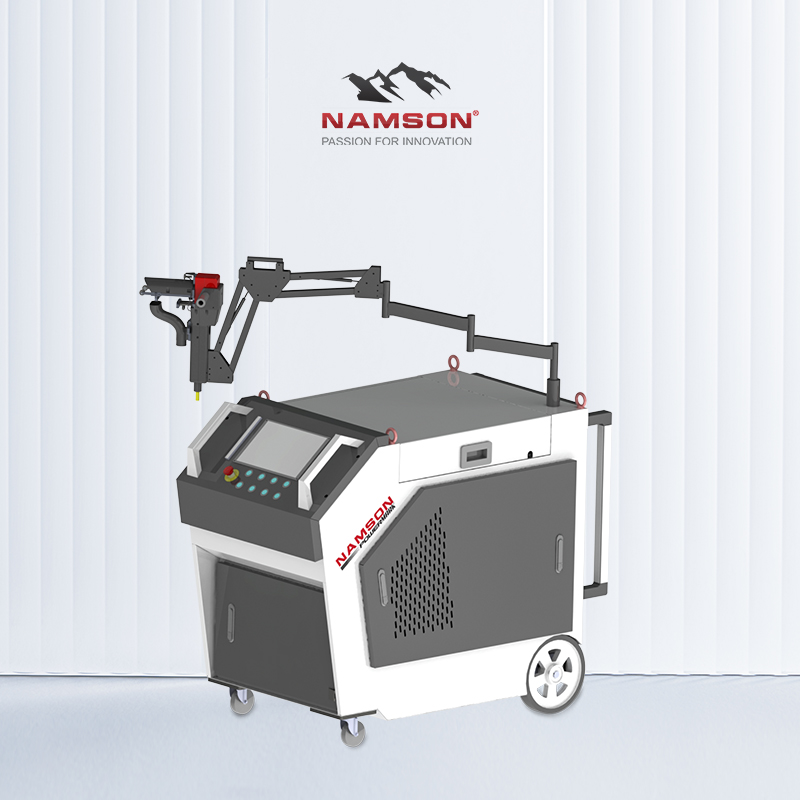

• Control cabinet, support arm with high flexibility and mobility that fit the the demand of marking on heavy and big size product.

SPECIFICATIONS
