Ultrashort pulse lasers are meeting the changing demands of drilling and cutting applications in microelectronics

The electronics industry is characterised by a relentless drive to deliver increased miniaturisation and higher functionality. This impacts virtually every level of electronics fabrication, including two critical micromachining steps in the production of both rigid printed circuit boards (PCBs)—including package substrates—and thin flex circuits.

Drilling blind and through holes

Specifically, these are: (a)  (vias), which are then electroplated to electrically connect the different layers of the circuit board; and (b) cutting or trimming individual circuit boards/substrates. These laser-based processes are reaching the spatial limitations of established laser technology. As such, there is a transitioning towards the use of ultrashort pulse (USP) lasers with short (green and ultraviolet (UV)) wavelengths. This trend is supported by manufacturers of high-power USP lasers that deliver the requisite high-quality products at high throughput and low cost.

Shorter pulses, shorter wavelengths

The drilling and cutting of PCBs and flex circuits require that the heat affected zone (HAZ) is minimised, meaning material adjacent to the cut or hole must be thermally degraded in some way. HAZ can be minimised using USP lasers. The use of shorter pulses results in a colder process. This is because the pulse duration is shorter than the thermal diffusion time in organic materials. In other words, much of the pulse energy is taken away in the ejected evaporated material before it has time to spread, as shown in figure 1.

USP lasers have lower pulse energies than, for example, nanosecond lasers, but process throughput is high because the reduced pulse energy is offset by the lower ablation threshold due to the higher peak power. Moreover, USP lasers are capable of much higher pulse repetition rates and therefore support processing in fast multiple passes, making them well-suited to selective machining of thinner layers on top of substrates that are often ceramic based. For most applications, the total thickness is 1 mm or less, but for specialty applications, such as in the automotive industry, the overall thickness can be up to 2 mm.

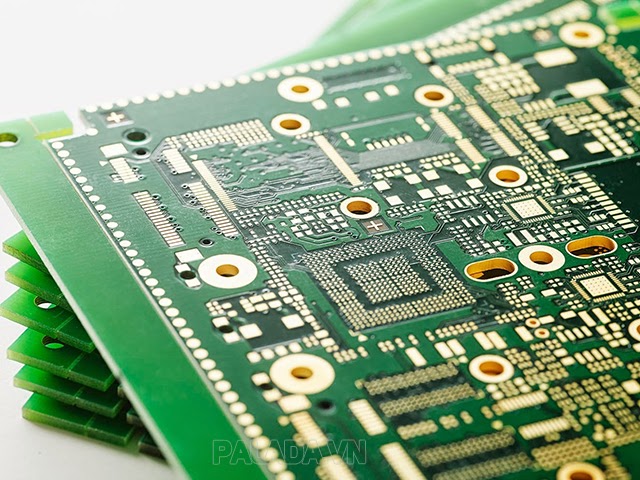

Printed circuit boards

The key laser-based processes for PCBs are drilling blind vias to form connections between the top conductor layer and targeted lower layers of the circuit board, followed by cutting individual circuit boards/substrates from the larger panel used for high-volume fabrication. The diameters of the vias are currently in the 50–100 μm range, and the final PCBs are typically simple squares or rectangles, so there is no shape complexity except for the occasional cutout.  Traditionally, drilling and cutting have both been mechanical processes that rely on the use of saws and drill bits. A typical drilling machine for via diameters of 100 μm incorporates six drill bits, each capable of producing 20 holes/s, but they only have a lifetime of 2,000 holes. Over the last decade, these machines have been largely replaced by machines that use sealed carbon dioxide (CO2) lasers, such as the DIAMOND series mid-infrared lasers from Coherent, which afford exceptional power/cost ratios. However, CO2 lasers are unable to deliver the requisite resolution and produce too much HAZ for via diameters of 50 μm and less. For these applications, green nanosecond lasers have often been preferred, but the market is now looking to green USP picosecond lasers, such as the HyperRapid NXT series lasers from Coherent, to achieve the required small diameters and less HAZ, as shown in figure 2, at higher speeds. These lasers offer the high pulse repetition rates (5,000 kHz and higher) and high power needed to drill up to 3,000 holes/s if used alongside fast galvanometer scanners.

Figure 2: Blind via holes in a PCB at different magnifications and view angles. The diameter and depth of the holes were both 40 µm. They were drilled in 30 µm Ajinomoto Build-up Film (ABF) on copper using a HyperRapid NXT green picosecond laser operated at 25 with a repetition rate of 1 MHz. The maximum drill rate was 1,000 holes/s.

The UV nanosecond laser is the most commonly used laser for cutting PCBs. However, the longer pulses cause edge discolouration, which impacts perceived value and leaves behind debris, thus necessitating post-process cleaning that does not damage the circuitry. As a result, PCB manufacturers are increasingly looking to green or infrared (IR) USP lasers for a single-step cutting process. IR USP lasers deliver the highest power at the lowest cost, but green USP lasers deliver the best results, as shown in figures 3 and 4.

Flex circuits

Flex circuits are laminates of copper and a flexible polymer such as polyimide (PI), and, less commonly, copper and liquid crystal polymer (LCP). To deliver the requisite flexibility, they are much thinner than rigid PCBs, affording typical thicknesses in the 100–300 µm range.

The key laser processes for flex circuits are again drilling and cutting. For several years, these tasks have been mainly the domain of nanosecond UV lasers with a wavelength of 355 nm. However, a growing number of manufacturers are looking to picosecond UV lasers to cut the narrow features and complex curved/shaped contours that flex circuit applications increasingly require. A typical example is the tightly folded circuitry located behind the organic LED (OLED) display in the latest smartphone generations. Moreover, nanosecond UV lasers are limited to a repetition rate of a few hundred kHz, but picosecond lasers can reach 1000s of kHz. This, as well as the aforementioned lower ablation threshold, means that picosecond UV lasers such as the HyperRapid NXT 355 from Coherent can deliver a cutting speed up to 10 times higher than that of nanosecond UV lasers. Specifically, it has been demonstrated that if one of these lasers is operated at 50 W with a repetition of 5 MHz, effective cutting speeds up to 1,300 mm/s are achievable for polyimide flex circuits up to 130 µm in thickness with a cutting width of less than 30 µm and a HAZ of less than 10 µm.

Low HAZ is also attributable to another feature of picosecond UV lasers branded as PulseEQ. As the beam scans complex patterns, speed inevitably changes for straight and curved cuts and switches in motion directions. Fixed pulse rates mean excessive dwell time and increased HAZ at cut corners. However, PulseEQ allows the laser pulse rate to be slaved to the scanners and the pulse energy to be kept constant, irrespective of the scan speed. This guarantees the same high cut quality in the corners of cutting contours.

Picosecond UV lasers deliver noticeably better hole quality than nanosecond lasers, as shown in figure 5. Furthermore, flex circuit manufacturers are looking to use a single machine to perform both drilling and cutting, and these USP lasers are poised for success in both tasks.

Summary

Drilling and cutting tasks in PCB and flex circuit manufacture are pushing the limits of longer pulsed laser methods. Fortunately, the latest USP lasers deliver both the higher speeds and improved results that these applications now demand.
